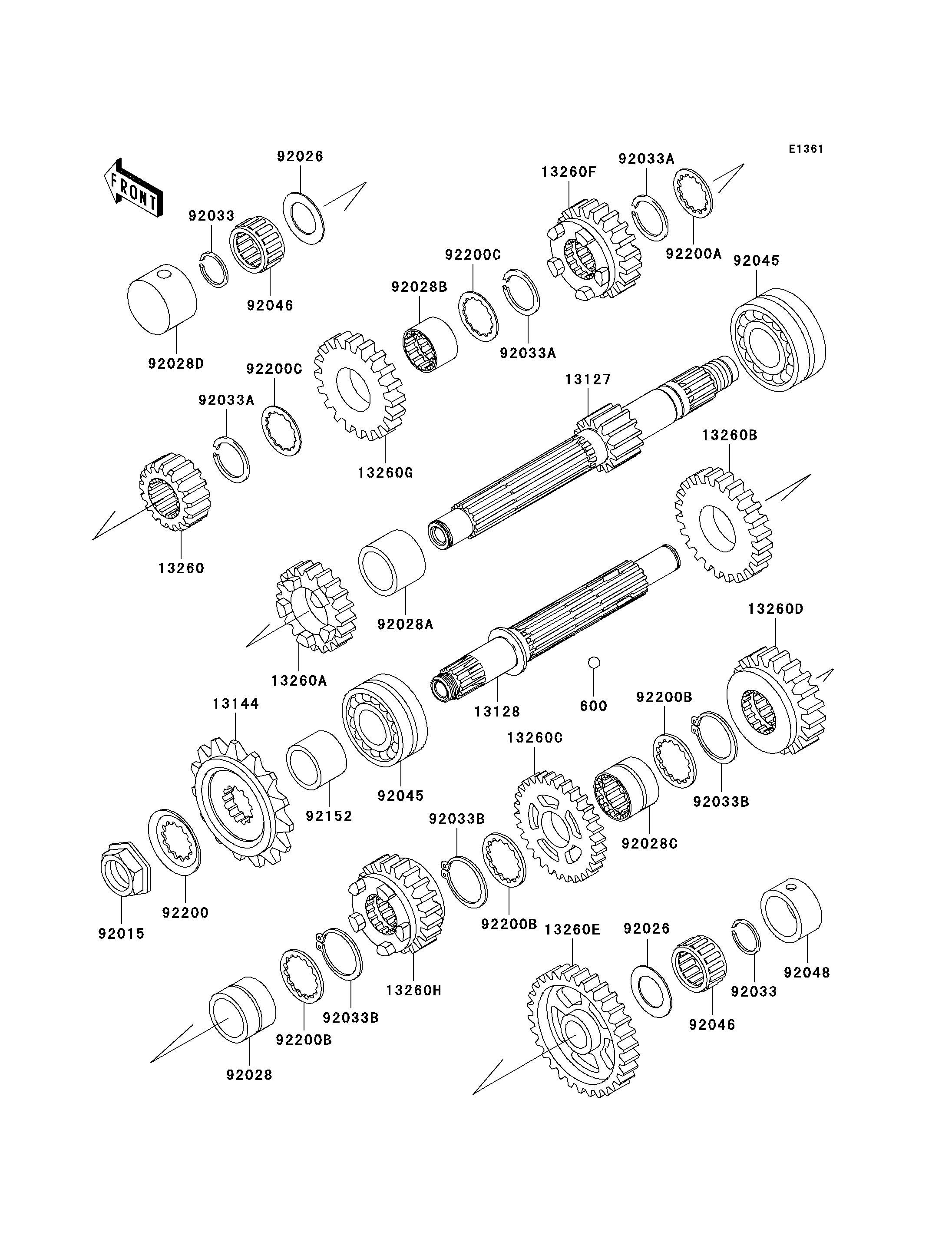

2005 ZR-7S (Canada Only) - Transmission

DOWNLOAD PDF
SELECT A NEW PART
600
13127
13128
13144
13260
13260A
13260B
13260C
13260D
13260E
13260F
13260G
13260H
92015
92026
92026
92028
92028A
92028B
92028C
92028D
92033
92033
92033A
92033A
92033A
92033B
92033B
92033B
92045
92045
92046
92046
92048
92152
92200
92200A
92200B
92200B
92200B
92200C
92200C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BALL-STEEL,5/32" 600 600A0500 3
SHAFT-TRANSMISSION INPUT,15T 13127 13127-1272 1
SHAFT-TRANSMISSION OUTPUT 13128 13128-1243 1
SPROCKET-OUTPUT,16T 13144 13144-1256 1
GEAR,INPUT 2ND,19T 13260 13260-1793 1
GEAR,INPUT 4TH,25T 13260A 13260-1795 1
GEAR,OUTPUT 2ND,31T 13260B 13260-1796 1
GEAR,OUTPUT 3RD,28T 13260C 13260-1797 1
GEAR,OUTPUT 4TH,26T 13260D 13260-1798 1
GEAR,OUTPUT LOW,35T 13260E 13260-1845 1
GEAR,INPUT 3RD,22T 13260F 13260-1847 1
GEAR,INPUT TOP,24T 13260G 13260-1848 1
GEAR,OUTPUT TOP 21T 13260H 13260-1865 1
NUT,20MM 92015 92015-1963 1
SPACER,20.5X33X1.0 92026 92026-1528 2
BUSHING,OUTPUT,2ND 92028 92028-1739 1
BUSHING,INPUT 4TH GEAR 92028A 92028-1914 1
BUSHING,INPUT TOP GEAR 92028B 92028-1915 1
BUSHING,OUTPUT 3RD GEAR 92028C 92028-1916 1
BUSHING,INPUT SHAFT 92028D 92028-1952 1
RING-SNAP,20MM 92033 92033-015 2
RING-SNAP,24MM 92033A 92033-026 3
RING-SNAP,T=1.5 92033B 92033-1249 3
BEARING-BALL,83993SH2-CS 92045 92045-035 2
BEARING-NEEDLE 92046 92046-1274 2
RACE 92048 92048-1105 1
COLLAR,25X32X40 92152 92152-1156 1
WASHER 92200 92200-1065 1
WASHER,25.2X31.0X1.5 92200A 92200-1239 1
WASHER,28.5X34.0X1.5 92200B 92200-1240 3
WASHER,25.2X31.8X1.0 92200C 92200-1298 2
