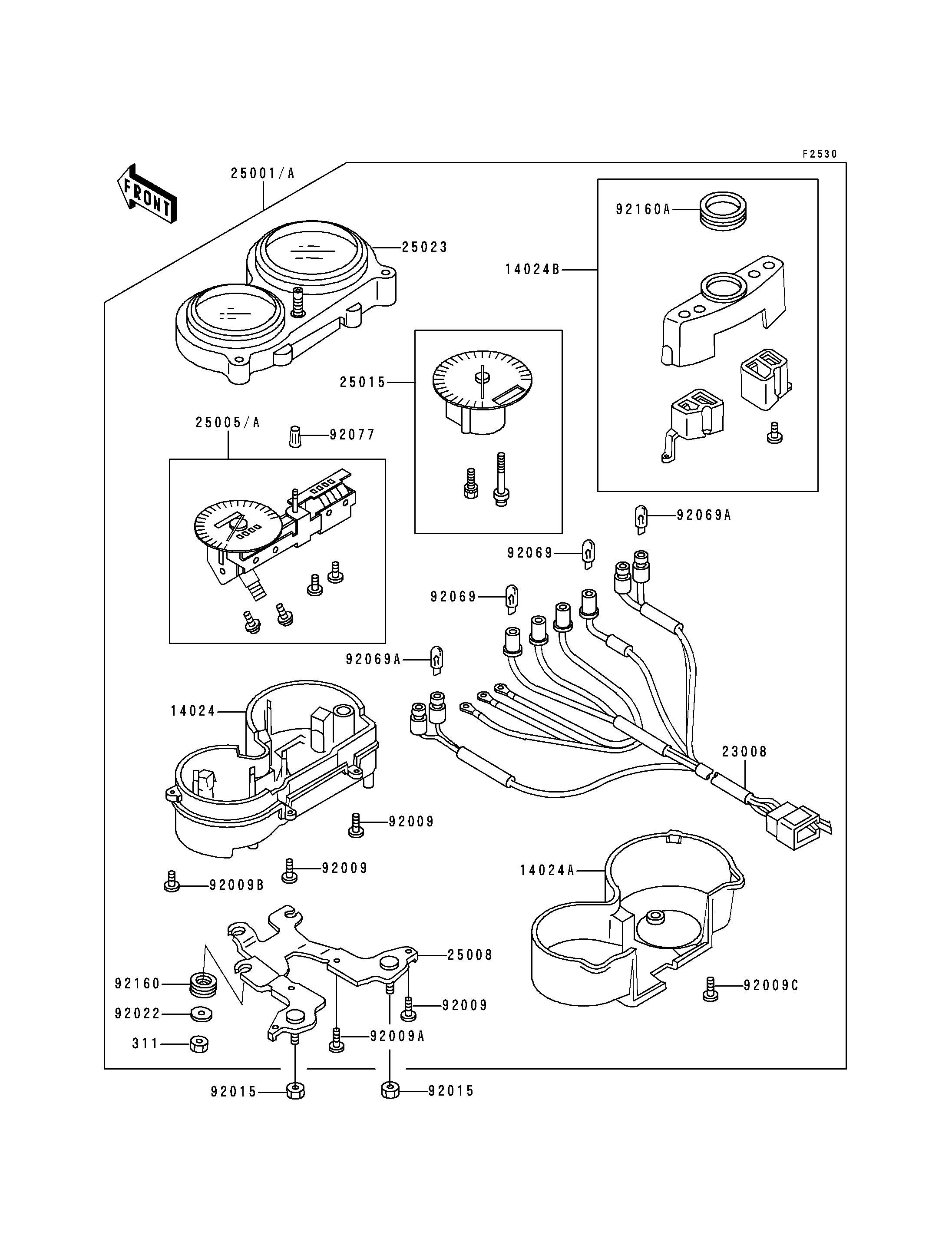

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| NUT-HEX | 311 | 311B0500 | 3 | ||
| COVER,METER HOUSING | 14024 | 14024-1851 | 1 | ||
| COVER,METER,LWR | 14024A | 14024-1852 | 1 | ||
| COVER,PILOT BOX,UPP | 14024B | 14024-1853 | 1 | ||
| SOCKET-ASSY,METER | 23008 | 23008-1416 | 1 | ||
| METER-ASSY,MPH | 25001 | 25001-1826 | 1 | ||
| METER-ASSY,KPH | 25001A | 25001-1846 | 1 | ||
| SPEEDOMETER,MPH | 25005 | 25005-1462 | 1 | ||
| SPEEDOMETER,KPH | 25005A | 25005-1477 | 1 | ||
| BRACKET-METER | 25008 | 25008-1158 | 1 | ||
| TACHOMETER,X1000R/MIN | 25015 | 25015-1297 | 1 | ||
| COVER-METER CASE,UPP | 25023 | 25023-1166 | 1 | ||
| SCREW,4X16,BLACK | 92009 | 92009-1158 | 5 | ||
| SCREW,TAPPING,4X20 | 92009A | 92009-1378 | 2 | ||
| SCREW,TAPPING,3X14 | 92009B | 92009-1592 | 2 | ||
| SCREW,TAPPING,4X14 | 92009C | 92009-1593 | 3 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1193 | 2 | ||
| WASHER,5.2X16X1.2 | 92022 | 92022-263 | 3 | ||
| BULB,12V 3.4W | 92069 | 92069-1007 | 4 | ||
| BULB,14V 3W | 92069A | 92069-1068 | 4 | ||
| KNOB,RESET TRIP | 92077 | 92077-1017 | 1 | ||
| DAMPER | 92160 | 92160-1178 | 3 | ||
| DAMPER,IGNITION SWITCH | 92160A | 92160-1179 | 1 |
