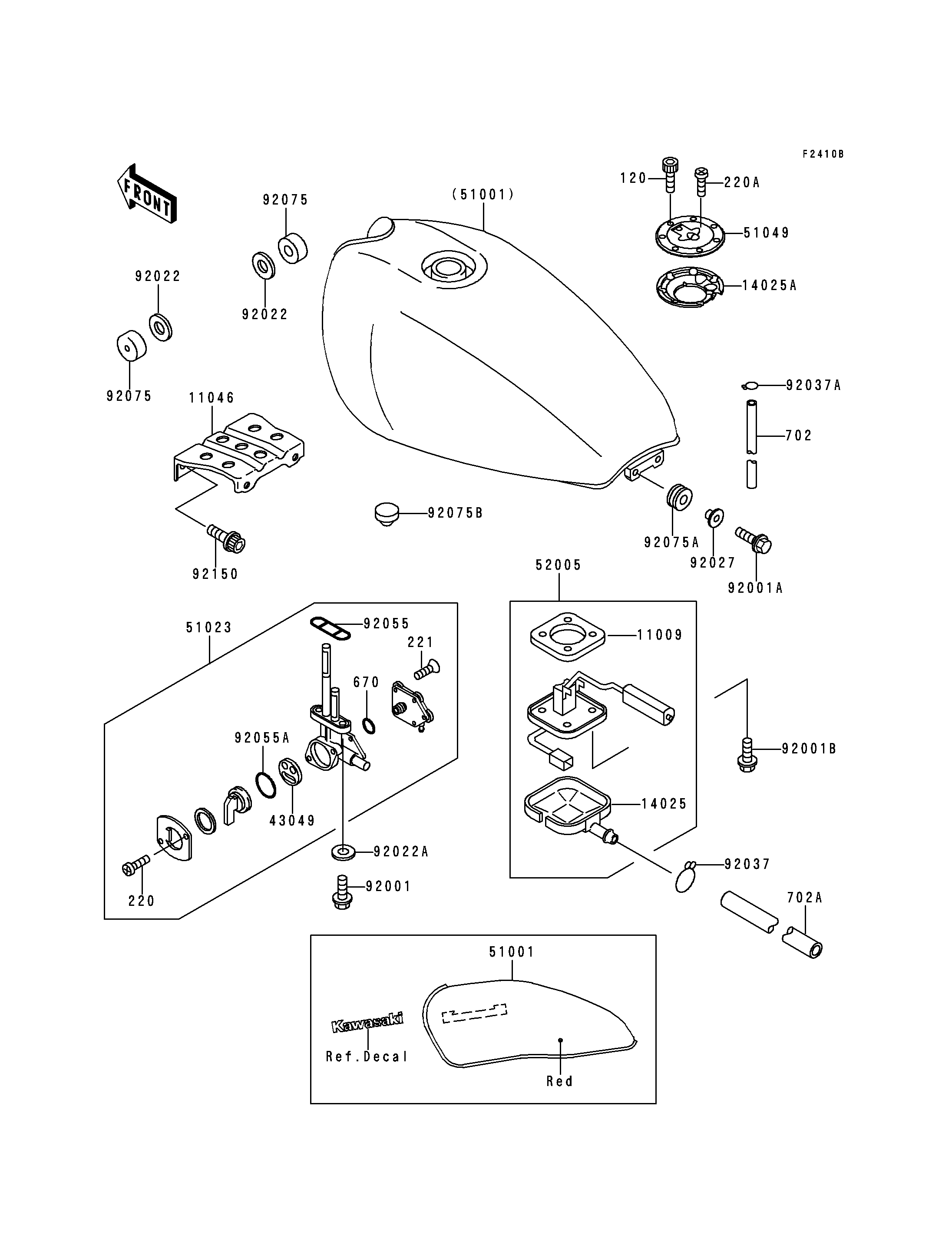

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET | 120 | 120S0512 | 7 | ||
| SCREW-PAN-CROS | 220 | 220B0308 | 2 | ||
| SCREW-PAN-CROS | 220A | 220C0508 | 1 | ||
| SCREW-CSK-CROS,4X14 | 221 | 221B0414 | 5 | ||
| O RING,4MM | 670 | 670B1504 | 1 | ||
| TUBE-RUBBER,7X10X600 | 702 | 702A07600 | 1 | ||
| TUBE-RUBBER,7X10X860 | 702A | 702A07860 | 1 | ||
| GASKET,FUEL GAUGE | 11009 | 11009-1656 | 1 | ||
| BRACKET,FUEL TANK | 11046 | 11046-1789 | 1 | ||
| COVER,FUEL GAUGE | 14025 | 14025-1536 | 1 | ||
| COVER,TANK CAP | 14025A | 14025-1913 | 1 | ||
| PACKING,TAP VALVE | 43049 | 43049-1066 | 1 | ||
| TANK-COMP-FUEL,L.V.RED | 51001 | 51001-1345-P5 | 1 | ||
| TAP-ASSY,FUEL | 51023 | 51023-1166 | 1 | ||
| CAP-TANK,FUEL | 51049 | 51049-1091 | 1 | ||
| GAUGE,FUEL | 52005 | 52005-1099 | 1 | ||
| BOLT,6X20 | 92001 | 92001-1091 | 2 | ||
| BOLT,6X25 | 92001A | 92001-1524 | 2 | ||
| BOLT,FUEL GAUGE | 92001B | 92001-1705 | 4 | ||
| WASHER,10.5X26X2.3 | 92022 | 92022-044 | 2 | ||
| WASHER,6.2X11X1.5 | 92022A | 92022-183 | 2 | ||
| COLLAR,L=13.1 | 92027 | 92027-251 | 2 | ||
| CLAMP,TUBE | 92037 | 92037-147 | 1 | ||
| CLAMP | 92037A | 92037-1712 | 1 | ||
| RING-O,FUEL TAP PACKING | 92055 | 92055-1112 | 1 | ||
| RING-O,TAP LEVER | 92055A | 92055-1419 | 1 | ||
| DAMPER,FUEL TANK | 92075 | 92075-125 | 2 | ||
| DAMPER | 92075A | 92075-1690 | 2 | ||
| DAMPER | 92075B | 92075-1737 | 2 | ||
| BOLT,SOCKET,8X20 | 92150 | 92150-1155 | 2 |
| BOLT-SOCKET | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS | |
| REF # | 220A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-CSK-CROS,4X14 | |
| REF # | 221 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| O RING,4MM | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE-RUBBER,7X10X600 | |
| REF # | 702 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE-RUBBER,7X10X860 | |
| REF # | 702A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,FUEL GAUGE | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,FUEL TANK | |
| REF # | 11046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,FUEL GAUGE | |
| REF # | 14025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,TANK CAP | |
| REF # | 14025A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PACKING,TAP VALVE | |
| REF # | 43049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TANK-COMP-FUEL,L.V.RED | |
| REF # | 51001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TAP-ASSY,FUEL | |
| REF # | 51023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-TANK,FUEL | |
| REF # | 51049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GAUGE,FUEL | |
| REF # | 52005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X20 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X25 | |
| REF # | 92001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FUEL GAUGE | |
| REF # | 92001B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,10.5X26X2.3 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.2X11X1.5 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,L=13.1 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,FUEL TAP PACKING | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,TAP LEVER | |
| REF # | 92055A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,FUEL TANK | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X20 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
