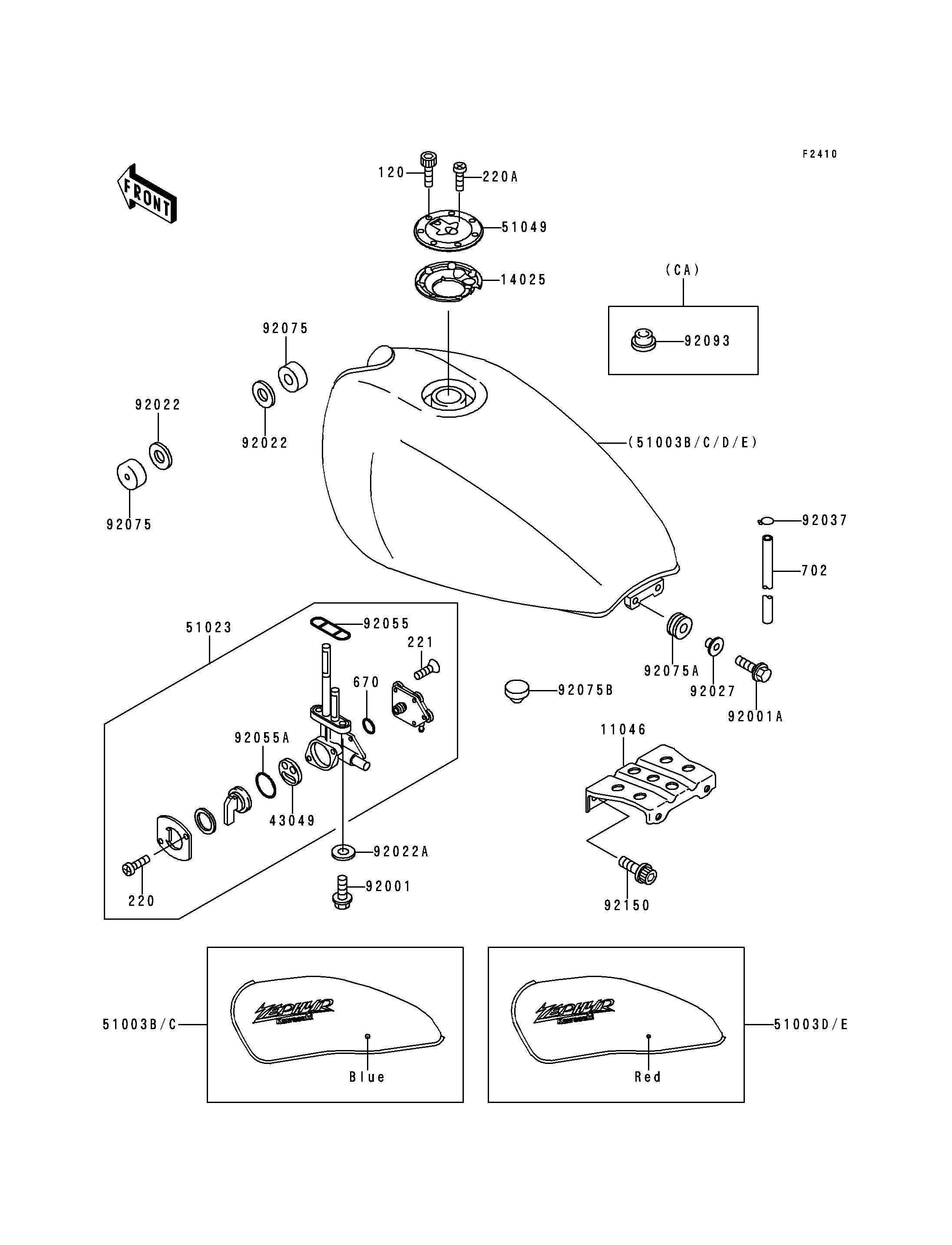

1991 Zephyr - Fuel Tank(ZR550-B1/B2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120S0512 7
BRACKET,FUEL TANK 11046 11046-1789 1
COVER,TANK CAP 14025 14025-1913 1
PACKING,TAP VALVE 43049 43049-1066 1
TANK-COMP-FUEL,C.A.BLUE 51003B 51003-5175-FC 1
TANK-COMP-FUEL,C.A.BLUE 51003C 51003-5176-FC 1
TANK-COMP-FUEL,C.C.RED 51003D 51003-5177-L1 1
TANK-COMP-FUEL,C.C.RED 51003E 51003-5178-L1 1
TAP-ASSY,FUEL 51023 51023-1166 1
CAP-TANK,FUEL 51049 51049-1091 1
BOLT,6X20 92001 92001-1091 2
BOLT,6X25 92001A 92001-1524 2
WASHER,10.5X26X2.3 92022 92022-044 2
WASHER,6.2X11X1.5 92022A 92022-183 2
COLLAR,L=13.1 92027 92027-251 2
CLAMP 92037 92037-1712 1
RING-O,FUEL TAP PACKING 92055 92055-1112 1
RING-O,TAP LEVER 92055A 92055-1419 1
DAMPER,FUEL TANK 92075 92075-125 2
DAMPER 92075A 92075-1690 2
DAMPER 92075B 92075-1737 2
SEAL,FUEL TANK CAP 92093 92093-1030 1
BOLT,SOCKET,8X20 92150 92150-1155 2
SCREW-PAN-CROS 220 220B0308 2
SCREW-PAN-CROS 220A 220C0508 1
SCREW-CSK-CROS,4X14 221 221B0414 5
O RING,4MM 670 670B1504 1
TUBE-RUBBER,7X10X600 702 702A07600 1
