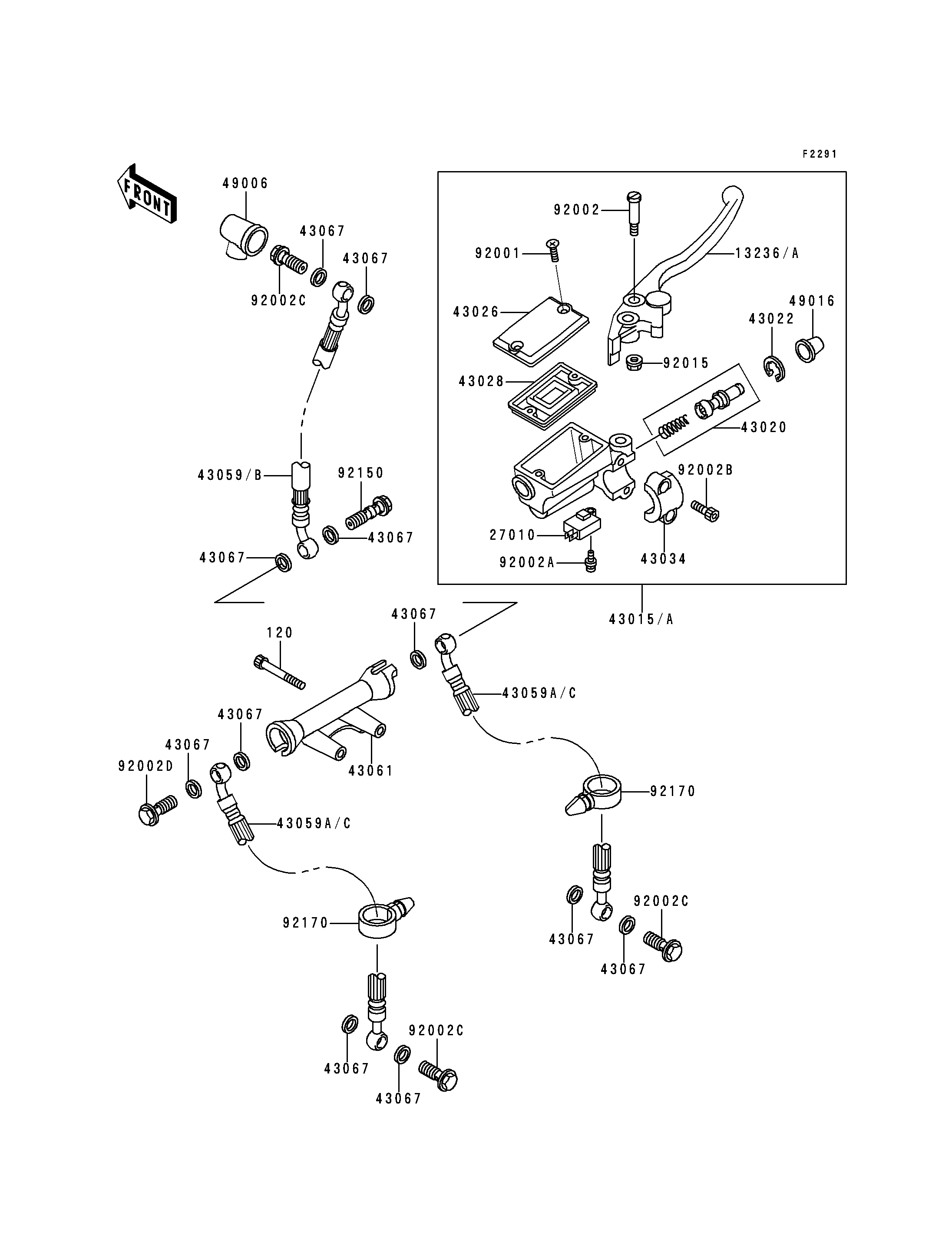

1991 Zephyr - Front Master Cylinder(ZR550-B1/B2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,6X45 | 120 | 120P0645 | 2 | ||
| LEVER-COMP,FRONT BRAKE | 13236A | 13236-1221 | 1 | ||
| SWITCH,BRAKE | 27010 | 27010-1170 | 1 | ||
| CYLINDER-ASSY-MASTER,FR | 43015A | 43015-1451 | 1 | ||
| PISTON-COMP-BRAKE,FR | 43020 | 43020-1054 | 1 | ||
| STOPPER-BRAKE,PISTON | 43022 | 43022-1010 | 1 | ||
| CAP-BRAKE,FR | 43026 | 43026-1055 | 1 | ||
| DIAPHRAGM,MASTER CYLINDER | 43028 | 43028-1058 | 1 | ||
| HOLDER-BRAKE,MASTER CYLINDER | 43034 | 43034-1053 | 1 | ||
| HOSE-BRAKE,FR | 43059B | 43059-1613 | 1 | ||
| HOSE-BRAKE,FR | 43059C | 43059-1614 | 2 | ||
| JOINT-BRAKE | 43061 | 43061-1056 | 1 | ||
| WASHER,10.5X15X1.5 | 43067 | 43067-001 | 11 | ||
| BOOT,DUST | 49006 | 49006-1040 | 1 | ||
| COVER-SEAL,MASTER CYLINDER | 49016 | 49016-1044 | 1 | ||
| SCREW,5MM | 92001 | 92001-1727 | 2 | ||
| BOLT,LEVER SET | 92002 | 92002-1322 | 1 | ||
| BOLT,SCREW,4X12 | 92002A | 92002-1323 | 1 | ||
| BOLT,SOCKET,6X10 | 92002B | 92002-1324 | 2 | ||
| BOLT,OIL,L=23 | 92002C | 92002-1888 | 3 | ||
| BOLT,OIL,L=23 | 92002D | 92002-1975 | 1 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1233 | 1 | ||
| BOLT,OIL,L=37 | 92150 | 92150-1351 | 1 | ||
| CLAMP,HOSE | 92170 | 92170-1067 | 2 |
