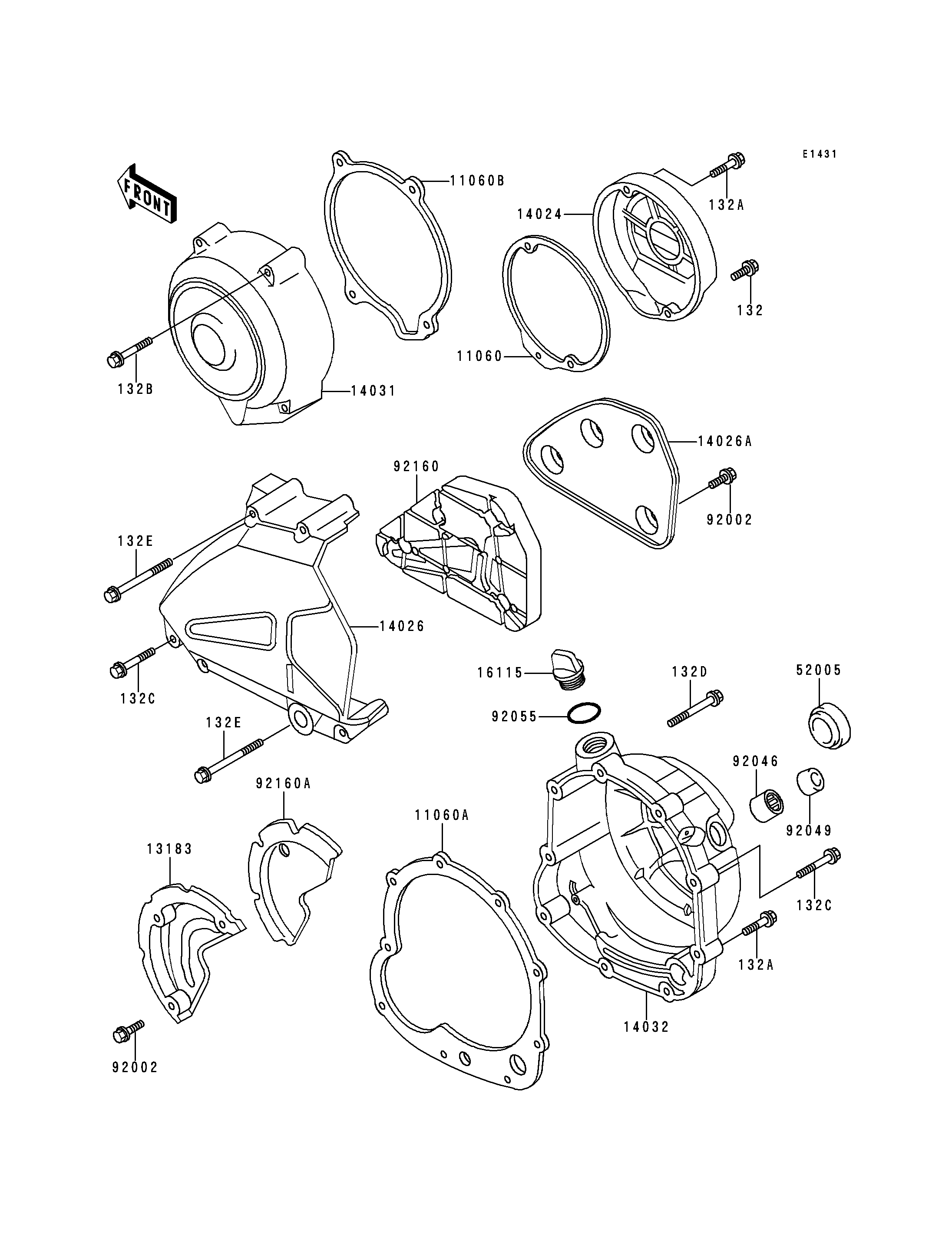

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL | 132 | 132E0620 | 1 | ||
| BOLT-FLANGED-SMALL | 132A | 132E0630 | 5 | ||
| BOLT-FLANGED-SMALL | 132B | 132E0640 | 4 | ||
| BOLT-FLANGED-SMALL | 132C | 132E0645 | 4 | ||
| BOLT-FLANGED-SMALL | 132D | 132E0660 | 2 | ||
| BOLT-FLANGED-SMALL | 132E | 132E0670 | 3 | ||
| GASKET,PULSING COIL CAP | 11060 | 11060-1053 | 1 | ||
| GASKET,CLUTCH COVER | 11060A | 11060-1054 | 1 | ||
| GASKET,GENERATOR COVER | 11060B | 11060-1055 | 1 | ||
| PLATE,CLUTCH SOUND ARRESTER | 13183 | 13183-1476 | 1 | ||
| COVER,PULSING | 14024 | 14024-1819 | 1 | ||
| COVER-CHAIN | 14026 | 14026-1150 | 1 | ||
| COVER-CHAIN,SOUND ARRESTER | 14026A | 14026-1151 | 1 | ||
| COVER-GENERATOR | 14031 | 14031-1240 | 1 | ||
| COVER-CLUTCH | 14032 | 14032-1280 | 1 | ||
| CAP-OIL FILLER | 16115 | 16115-013 | 1 | ||
| GAUGE,OIL LEVEL | 52005 | 52005-1009 | 1 | ||
| BOLT,6X10 | 92002 | 92002-1449 | 3 | ||
| BOLT,6X10 | 92002 | 92002-1449 | 7 | ||
| BEARING-NEEDLE,HK1210 | 92046 | 92046-1010 | 2 | ||
| SEAL-OIL,TB12205.5 | 92049 | 92049-1271 | 1 | ||
| RING-O,31.5X2.6 | 92055 | 92055-049 | 1 | ||
| DAMPER,CHAIN SOUND ARRESTER | 92160 | 92160-1143 | 1 | ||
| DAMPER,CLUTCH SOUND ARRESTER | 92160A | 92160-1149 | 1 |
| BOLT-FLANGED-SMALL | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL | |
| REF # | 132A |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL | |
| REF # | 132B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL | |
| REF # | 132C |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL | |
| REF # | 132D |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL | |
| REF # | 132E |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| GASKET,PULSING COIL CAP | |
| REF # | 11060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,CLUTCH COVER | |
| REF # | 11060A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,GENERATOR COVER | |
| REF # | 11060B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,CLUTCH SOUND ARRESTER | |
| REF # | 13183 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,PULSING | |
| REF # | 14024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-CHAIN | |
| REF # | 14026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-CHAIN,SOUND ARRESTER | |
| REF # | 14026A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-GENERATOR | |
| REF # | 14031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-CLUTCH | |
| REF # | 14032 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-OIL FILLER | |
| REF # | 16115 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GAUGE,OIL LEVEL | |
| REF # | 52005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X10 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X10 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,HK1210 | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,TB12205.5 | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,31.5X2.6 | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,CHAIN SOUND ARRESTER | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,CLUTCH SOUND ARRESTER | |
| REF # | 92160A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
