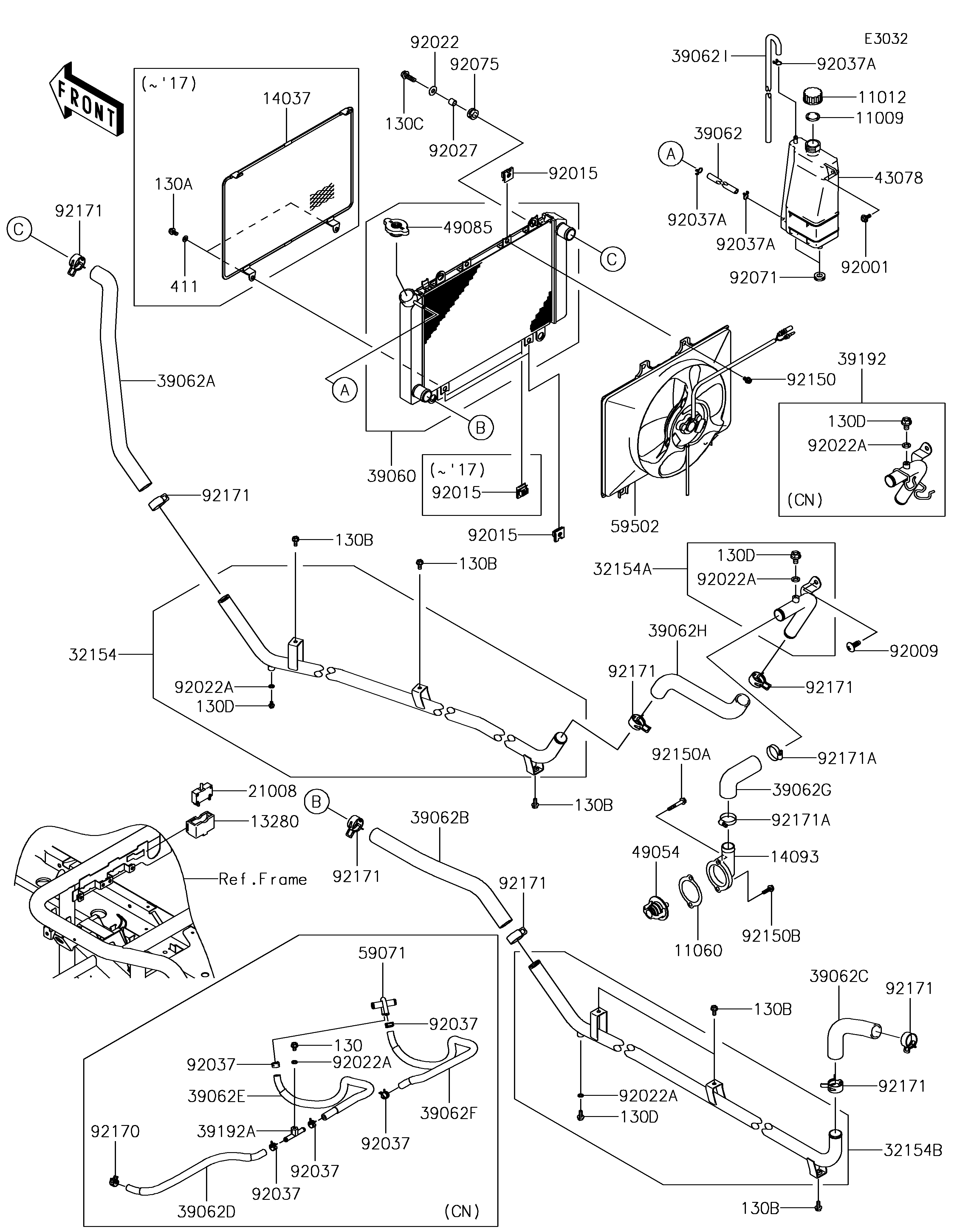

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,RESERVOIR TANK CAP | 11009 | 11009-1145 | 1 | ||
| CAP | 11012 | 11012-1084 | 1 | ||
| GASKET,THERMOSTAT COVER | 11060 | 11060-2084 | 1 | ||
| HOLDER,BREAKER | 13280 | 13280-0082 | 1 | ||
| SCREEN | 14037 | 14037-0088 | 1 | ||
| COVER,THERMOSTAT | 14093 | 14093-0061 | 1 | ||
| BREAKER,FAN MOTOR | 21008 | 21008-0001 | 1 | ||
| PIPE,RH FR | 32154 | 32154-7503 | 1 | ||
| PIPE,LH | 32154B | 32154-7507 | 1 | ||
| RADIATOR | 39060 | 39060-0066 | 1 | ||
| HOSE-COOLING,5.5X10.5X650 | 39062 | 39062-0266 | 1 | ||
| HOSE-COOLING,PIPE-RAD. | 39062A | 39062-0282 | 1 | ||
| HOSE-COOLING,RAD.-LH PIPE | 39062B | 39062-0283 | 1 | ||
| HOSE-COOLING,PIPE-E/G | 39062C | 39062-0286 | 1 | ||
| HOSE-COOLING | 39062G | 39062-1832 | 1 | ||
| HOSE-COOLING | 39062H | 39062-7502 | 1 | ||
| HOSE-COOLING,DRAIN | 39062I | 39062-7507 | 1 | ||
| RESERVOIR | 43078 | 43078-0062 | 1 | ||
| THERMOSTAT | 49054 | 49054-2056 | 1 | ||
| CAP-ASSY-PRESSURE | 49085 | 49085-1066 | 1 | ||
| FAN-ASSY | 59502 | 59502-0042 | 1 | ||
| BOLT,W/P,6X16 | 92001 | 92001-1860 | 1 | ||
| SCREW,TAPPING,6X16 | 92009 | 92009-1166 | 1 | ||
| NUT | 92015 | 92015-1487 | 4 | ||
| WASHER,8.5X20X1.6,BLACK | 92022 | 92022-1317 | 4 | ||
| COLLAR,8.8X12X10.7 | 92027 | 92027-102 | 4 | ||
| CLAMP,TUBE | 92037A | 92037-147 | 3 | ||
| GROMMET | 92071 | 92071-1115 | 2 | ||
| DAMPER | 92075 | 92075-294 | 4 | ||
| BOLT,6X12 | 92150 | 92150-1186 | 4 | ||
| BOLT,6X40 | 92150A | 92150-2230 | 1 | ||
| BOLT,6X20 | 92150B | 92150-2231 | 1 | ||
| CLAMP,COOLING HOSE | 92171 | 92171-0060 | 8 | ||
| CLAMP | 92171A | 92171-0179 | 2 | ||
| BOLT-FLANGED,6X12 | 130A | 130BA0612 | 2 | ||
| BOLT-FLANGED,6X14 | 130B | 130BA0614 | 6 | ||
| BOLT-FLANGED,8X25 | 130C | 130BA0825 | 4 | ||
| BOLT-FLANGED,6X10 | 130D | 130BB0610 | 3 | ||
| WASHER-PLAIN,6MM | 411 | 411AA0600 | 2 |
