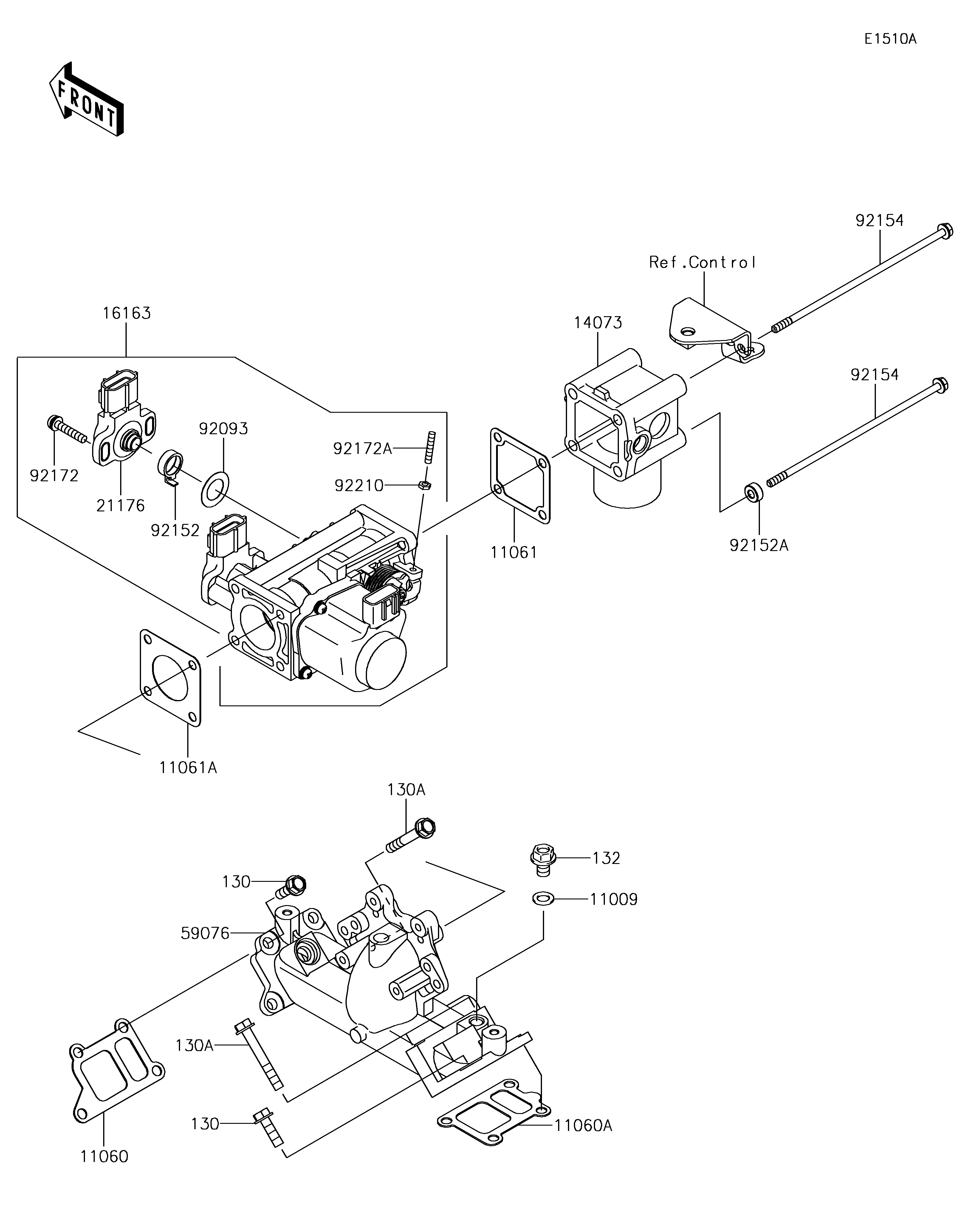

2019 MULE™ 4010 TRANS4x4® - Throttle(RKF)
11009
11060
11060A
11061
11061A
14073
16163
21176
59076
92093
92152
92152A
92154
92154
92172
92172A
92210
130
130
130A
130A
132
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,8.2X14X1.0 | 11009 | 11009-1344 | 1 | ||
| GASKET,INTAKE MANIFOLD | 11060 | 11060-2087 | 1 | ||
| GASKET,INTAKE MANIFOLD | 11060A | 11060-2088 | 1 | ||
| GASKET | 11061 | 11061-0861 | 1 | ||
| GASKET | 11061A | 11061-2179 | 1 | ||
| DUCT | 14073 | 14073-0780 | 1 | ||
| THROTTLE-ASSY | 16163 | 16163-0949 | 1 | ||
| SENSOR | 21176 | 21176-2112 | 1 | ||
| MANIFOLD-INTAKE | 59076 | 59076-0718 | 1 | ||
| SEAL | 92093 | 92093-2133 | 1 | ||
| COLLAR | 92152 | 92152-2093 | 1 | ||
| COLLAR,LWR SIDE | 92152A | 92152-2333 | 2 | ||
| BOLT,FLANGED,6X195 | 92154 | 92154-2653 | 4 | ||
| SCREW | 92172 | 92172-0254 | 2 | ||
| SCREW | 92172A | 92172-2106 | 1 | ||
| NUT | 92210 | 92210-2120 | 1 | ||
| BOLT-FLANGED,6X20 | 130 | 130BA0620 | 5 | ||
| BOLT-FLANGED,6X45 | 130A | 130CA0645 | 3 | ||
| BOLT-FLANGED-SMALL,8X12 | 132 | 132BB0812 | 1 |
