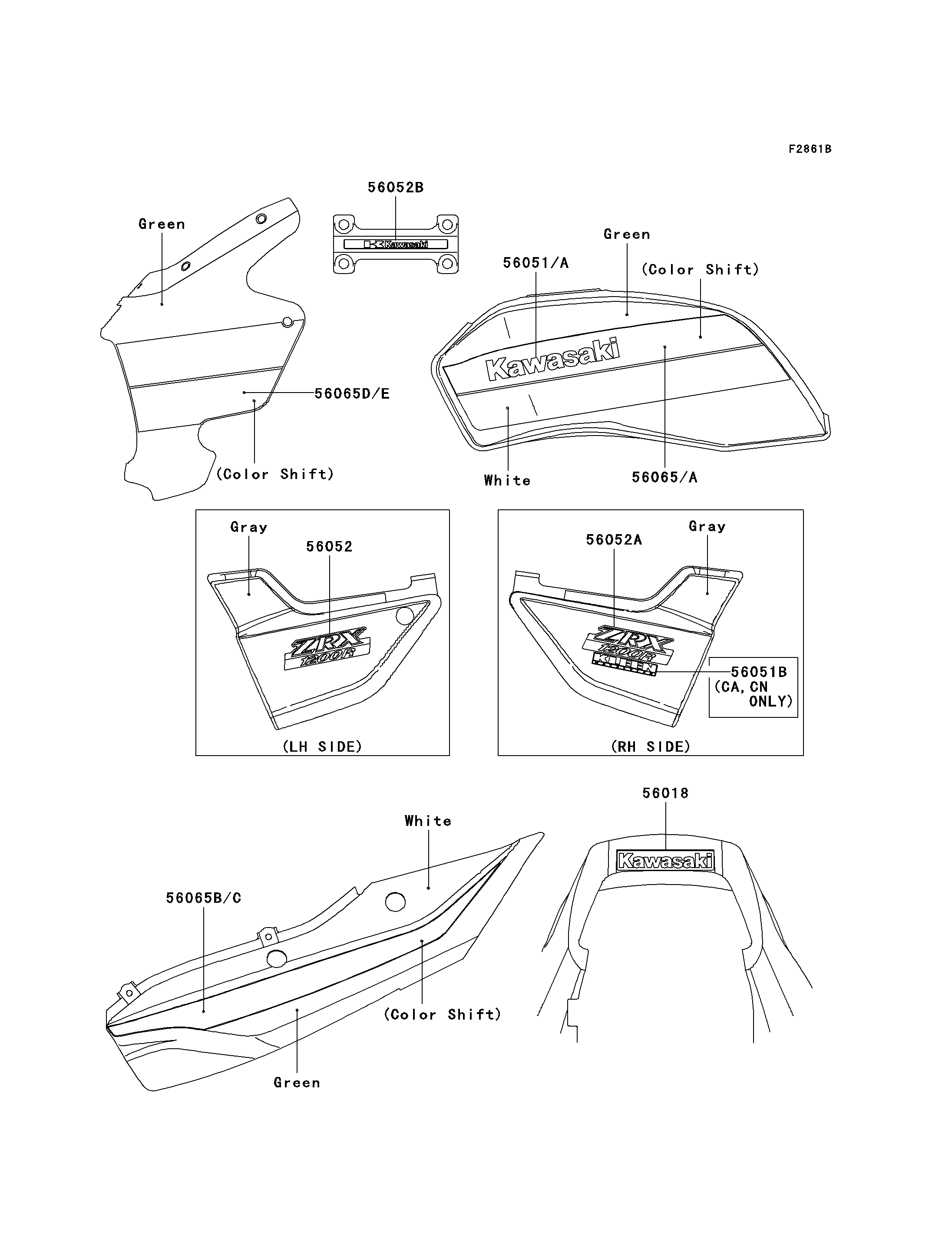

2002 ZRX1200R - Decals(Green/White)(ZR1200-A2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,SEAT COVER,KAWASAKI | 56018 | 56018-1208 | 1 | ||
| MARK,FUEL TANK,LH,KAWASAKI | 56051 | 56051-1610 | 1 | ||
| MARK,FUEL TANK,RH,KAWASAKI | 56051A | 56051-1611 | 1 | ||
| MARK,SIDE COVER,LH,ZRX 1200R | 56052 | 56052-1444 | 1 | ||
| MARK,SIDE COVER,RH,ZRX 1200R | 56052A | 56052-1445 | 1 | ||
| MARK,HANDLE HOLDER,K.KAWASAKI | 56052B | 56052-1463 | 1 | ||
| PATTERN,FUEL TANK,LH | 56065 | 56065-1408 | 1 | ||
| PATTERN,FUEL TANK,RH | 56065A | 56065-1409 | 1 | ||
| PATTERN,SEAT COVER,LH | 56065B | 56065-1410 | 1 | ||
| PATTERN,SEAT COVER,RH | 56065C | 56065-1411 | 1 | ||
| PATTERN,UPP COWLING,LH | 56065D | 56065-1412 | 1 | ||
| PATTERN,UPP COWLING,RH | 56065E | 56065-1413 | 1 | ||
| MARK,KLEEN | 56051B | 56051-1801 | 1 | CACN |
| MARK,SEAT COVER,KAWASAKI | |
| REF # | 56018 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,FUEL TANK,LH,KAWASAKI | |
| REF # | 56051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,FUEL TANK,RH,KAWASAKI | |
| REF # | 56051A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,SIDE COVER,LH,ZRX 1200R | |
| REF # | 56052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,SIDE COVER,RH,ZRX 1200R | |
| REF # | 56052A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,HANDLE HOLDER,K.KAWASAKI | |
| REF # | 56052B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56065A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SEAT COVER,LH | |
| REF # | 56065B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SEAT COVER,RH | |
| REF # | 56065C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,LH | |
| REF # | 56065D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,RH | |
| REF # | 56065E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,KLEEN | |
| REF # | 56051B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CACN |
| REMARKS | |
