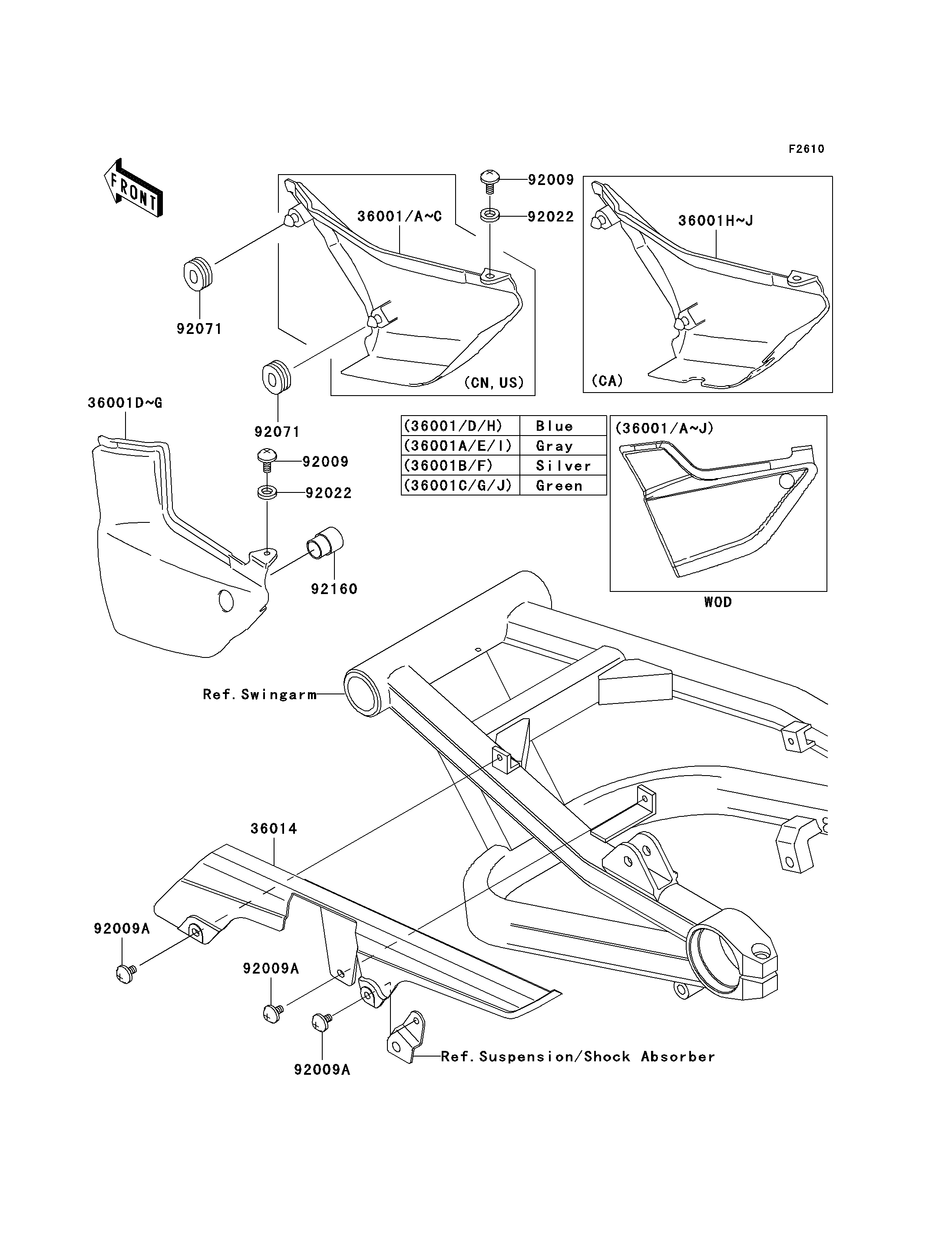

2002 ZRX1200R - Side Covers/Chain Cover
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER-SIDE,LH,M.F.C.GRAY | 36001E | 36001-1597-3L | 1 | ||
| CASE-CHAIN | 36014 | 36014-1244 | 1 | ||
| SCREW,6X14 | 92009 | 92009-1288 | 2 | ||
| SCREW,6X10 | 92009A | 92009-1402 | 3 | ||
| WASHER,6.5X16X1.0 | 92022 | 92022-1654 | 2 | ||
| GROMMET | 92071 | 92071-056 | 4 | ||
| DAMPER | 92160 | 92160-1871 | 1 | ||
| COVER-SIDE,RH,M.F.C.GRAY | 36001A | 36001-1575-3L | 1 | CNUS | |
| COVER-SIDE,RH,M.F.C.GRAY | 36001I | 36001-1648-3L | 1 | CA |
| COVER-SIDE,LH,M.F.C.GRAY | |
| REF # | 36001E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE-CHAIN | |
| REF # | 36014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X14 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X10 | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X16X1.0 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,RH,M.F.C.GRAY | |
| REF # | 36001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CNUS |
| REMARKS | |
| COVER-SIDE,RH,M.F.C.GRAY | |
| REF # | 36001I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
