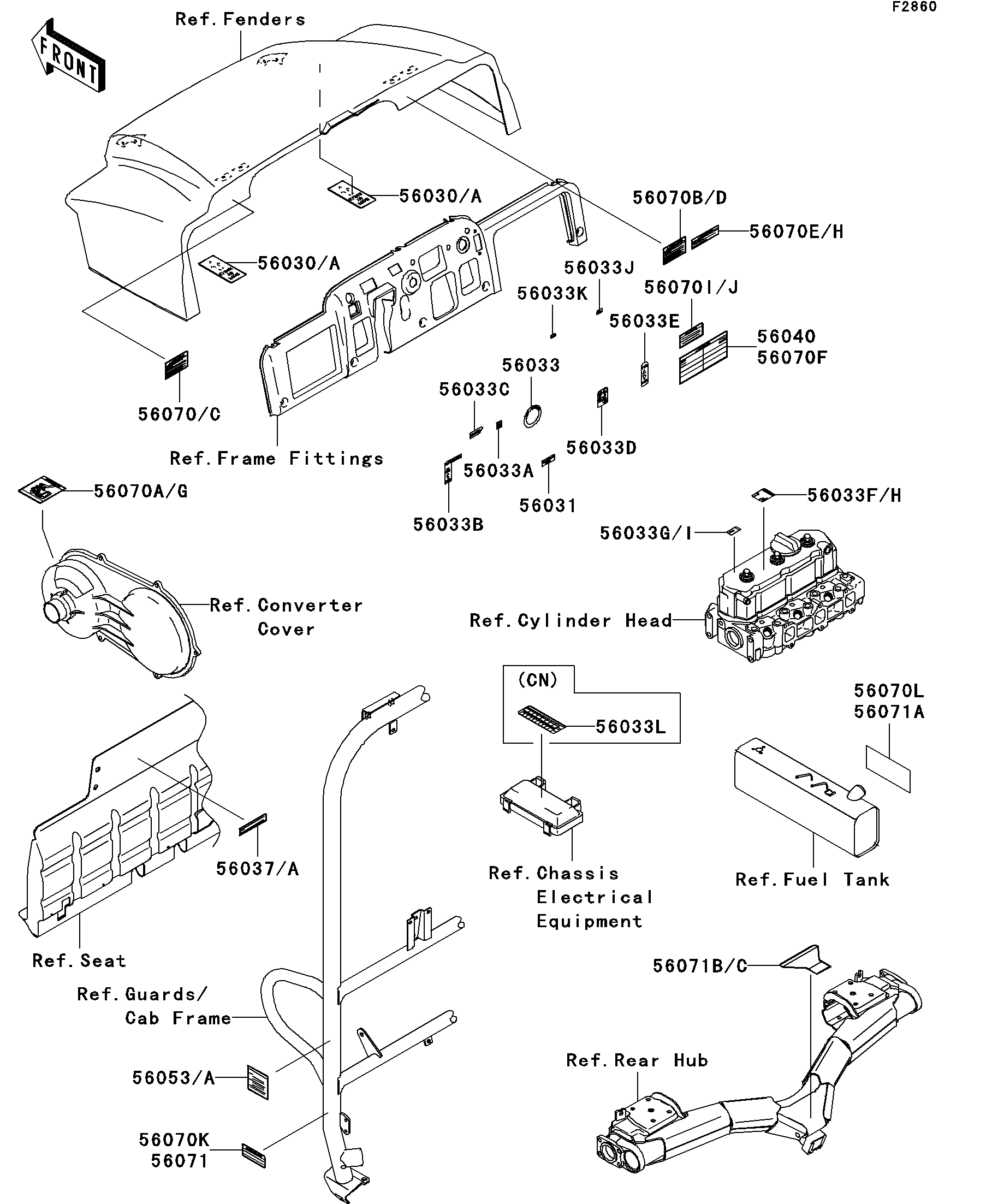

2008 Mule 3010 Diesel 4X4 - Labels

DOWNLOAD PDF
SELECT A NEW PART
56030
56030
56030
56030
56031
56031
56033
56033
56033A
56033A
56033B
56033B
56033C
56033C
56033D
56033D
56033E
56033E
56033F
56033F
56033G
56033G
56033J
56033J
56033K
56033K
56037
56037
56040
56040
56053
56053
56070
56070
56070A
56070A
56070B
56070B
56070E
56070E
56070I
56070I
56070K
56070K
56070L
56070L
56071B
56071B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL,BONNET OPERATION 56030 56030-1240 2
LABEL-MANUAL,BRAKE FLUID LEVEL 56031 56031-1818 1
LABEL-MANUAL,IGNITION,ON/OFF 56033 56033-0162 1
LABEL-MANUAL,GLOW 56033A 56033-1180 1
LABEL-MANUAL,DIFF MODE 56033B 56033-1183 1
LABEL-MANUAL,IGNITION 56033C 56033-1184 1
LABEL-MANUAL,SHIFT 56033D 56033-1186 1
LABEL-MANUAL,2WD/4WD 56033E 56033-1187 1
LABEL-MANUAL,ENGINE OIL 56033F 56033-1321 1
LABEL-MANUAL,ENGINE OIL 56033G 56033-1322 1
LABEL-MANUAL,OIL PRESSURE 56033J 56033-7501 1
LABEL-MANUAL,EPS 56033K 56033-7504 1
LABEL-SPECIFICATION,CARGO BED 56037 56037-1821 1
LABEL-WARNING,GENERAL 56040 56040-1339 1
LABEL,MAX VEHICLE LOAD 56053 56053-7524 1
LABEL-WARNING,OFF-HIGHWAY 56070 56070-0050 1
LABEL-WARNING,HOT SURFACES 56070A 56070-0051 1
LABEL-WARNING,BONNET OPERATION 56070B 56070-0053 1
LABEL-WARNING,SHIFT CAUTION 56070E 56070-1201 1
LABEL-WARNING,BELT SLIPPAGE 56070I 56070-7505 1
LABEL-WARNING,BED RAISED 56070K 56070-7515 1
LABEL-WARNING,GASOLINE 56070L 56070-7516 1
LABEL-WARNING,TRAILER HITCH 56071B 56071-7511 1
