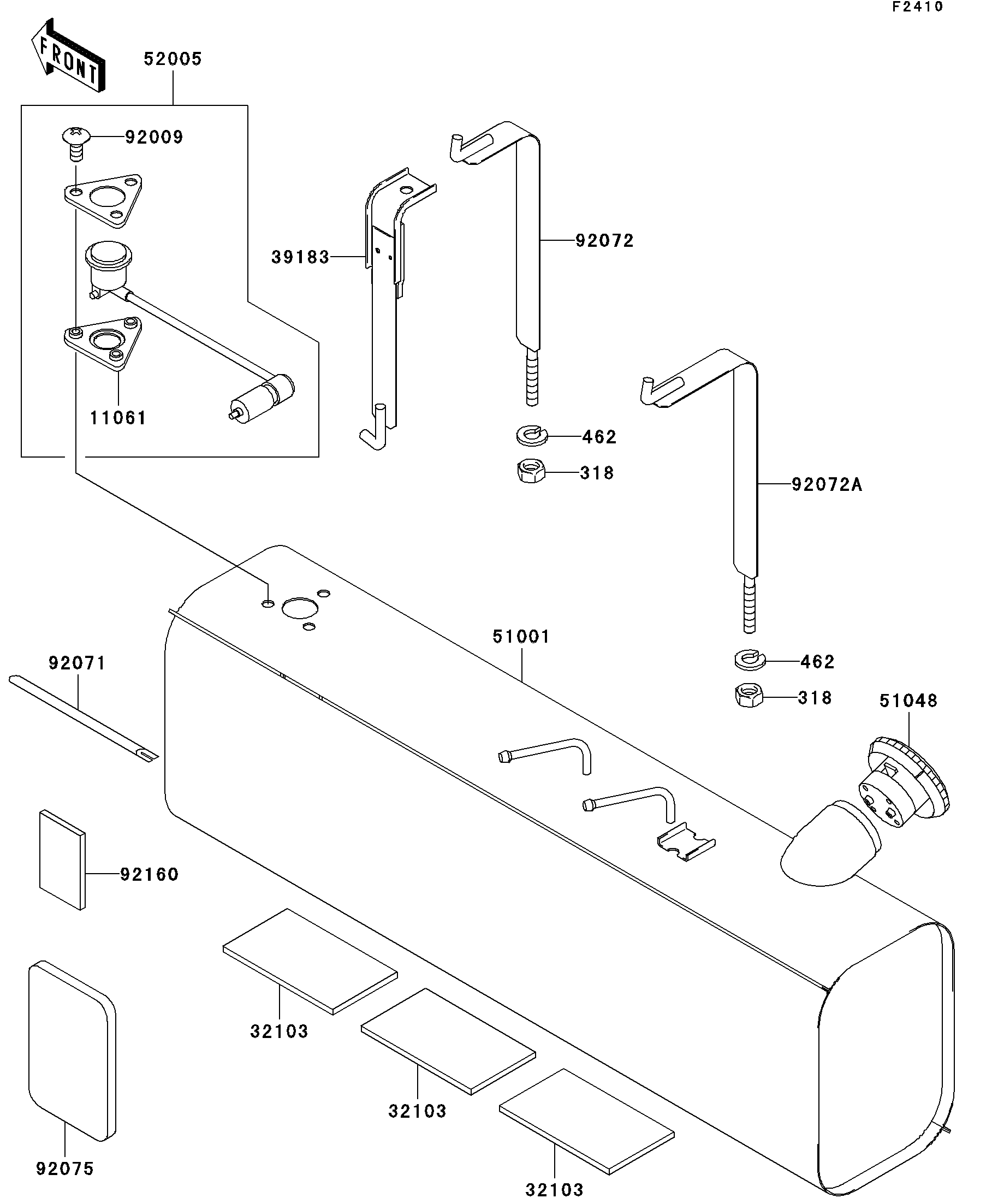

Parts Diagrams |
11061
32103
32103
32103
39183
51001
51048
52005
92009
92071
92072
92072A
92075
92160
318
318
462
462
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,FUEL GAUGE | 11061 | 11061-0120 | 1 | ||
| DAMPER,BATTERY | 32103 | 32103-027 | 3 | ||
| BAND-ASSY | 39183 | 39183-7501 | 1 | ||
| TANK-COMP-FUEL | 51001 | 51001-7509 | 1 | ||
| CAP-ASSY-TANK,FUEL | 51048 | 51048-0005 | 1 | ||
| GAUGE,FUEL | 52005 | 52005-0013 | 1 | ||
| SCREW,6X14 | 92009 | 92009-1541 | 3 | ||
| GROMMET | 92071 | 92071-1198 | 1 | ||
| BAND,FUEL TANK | 92072 | 92072-7503 | 1 | ||
| BAND,FUEL TANK | 92072A | 92072-7504 | 1 | ||
| DAMPER | 92075 | 92075-3759 | 1 | ||
| DAMPER | 92160 | 92160-1102 | 1 | ||
| NUT-HEX-SMALL | 318 | 318C0800 | 2 | ||
| WASHER-SPRING,8MM | 462 | 462L0800 | 2 |
| GASKET,FUEL GAUGE | |
| REF # | 11061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,BATTERY | |
| REF # | 32103 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BAND-ASSY | |
| REF # | 39183 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TANK-COMP-FUEL | |
| REF # | 51001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-ASSY-TANK,FUEL | |
| REF # | 51048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GAUGE,FUEL | |
| REF # | 52005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X14 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,FUEL TANK | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,FUEL TANK | |
| REF # | 92072A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT-HEX-SMALL | |
| REF # | 318 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER-SPRING,8MM | |
| REF # | 462 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
