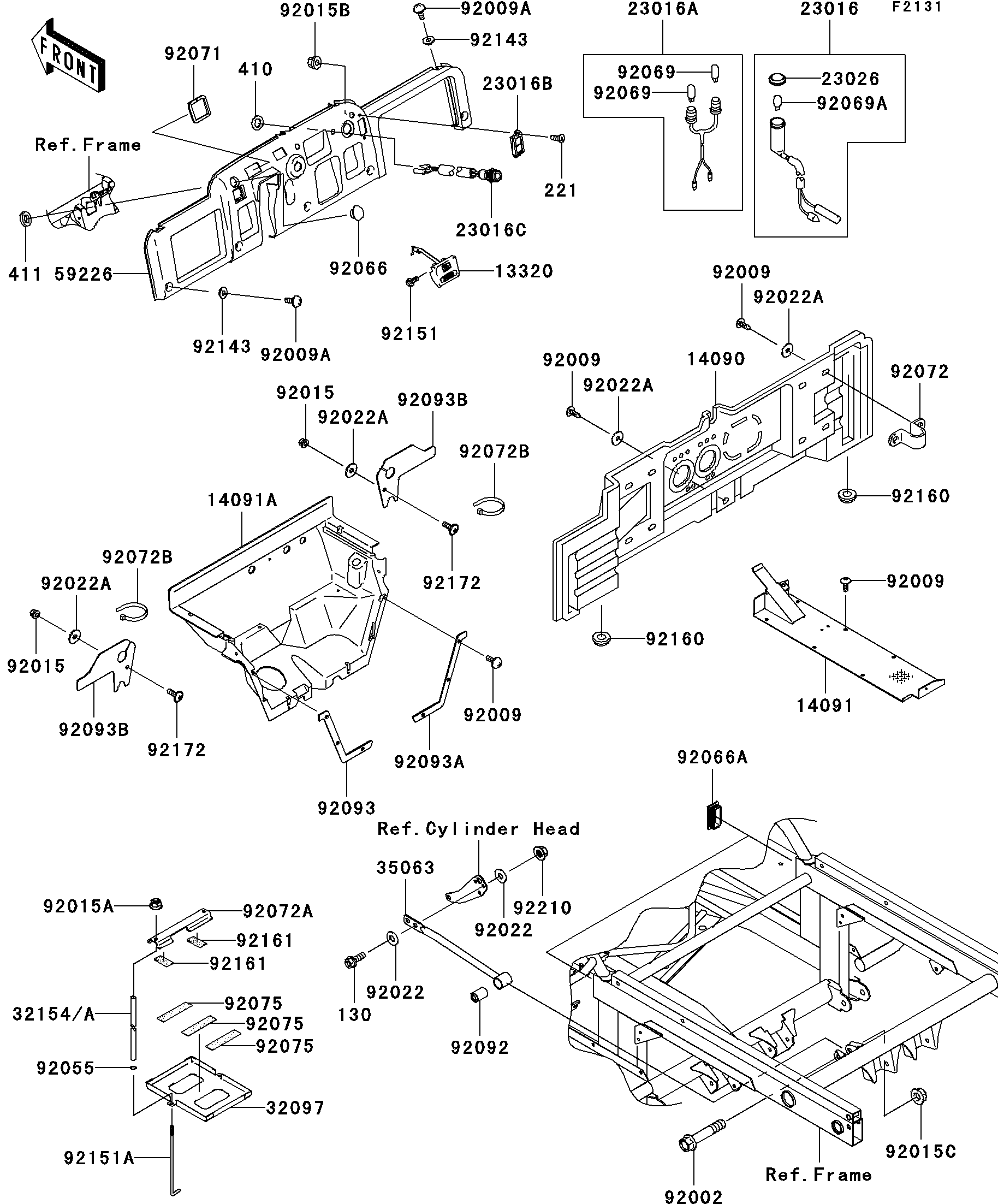

2008 Mule 3010 Diesel 4X4 - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
13320
13320
14090
14090
14091
14091
14091A
14091A
23016
23016
23016A
23016A
23016B
23016B
23016C
23016C
23026
23026
32097
32097
35063
35063
59226
59226
92002
92002
92009
92009
92009
92009
92009
92009
92009
92009
92009A
92009A
92009A
92009A
92015
92015
92015
92015
92015A
92015A
92015B
92015B
92015C
92015C
92022
92022
92022
92022
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92055
92055
92066
92066
92066A
92066A
92069
92069
92069
92069
92069A
92069A
92071
92071
92072
92072
92072A
92072A
92072B
92072B
92072B
92072B
92075
92075
92075
92075
92075
92075
92092
92092
92093
92093
92093A
92093A
92093B
92093B
92093B
92093B
92143
92143
92143
92143
92151
92151
92151A
92151A
92160
92160
92160
92160
92161
92161
92161
92161
92172
92172
92172
92172
92210
92210
130
130
221
221
410
410
411
411
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-ASSY 13320 13320-1016 1
COVER,SEAT UNDER 14090 14090-1247 1
COVER,FLOOR,CNT 14091 14091-0118 1
COVER,FLOOR 14091A 14091-1378 1
LAMP-ASSY,TEMP 23016 23016-1128 2
LAMP-ASSY,INDICATOR 23016A 23016-1188 1
LAMP-ASSY 23016B 23016-1189 1
LAMP-ASSY,LED 23016C 23016-7501 1
LENS,TEMP LAMP 23026 23026-1157 2
CASE-BATTERY 32097 32097-1200 1
STAY 35063 35063-1107 1
PANEL-CONTROL,GRAY 59226 59226-7503-284 1
BOLT,ROD,12MM 92002 92002-1757 1
SCREW,TAPPING,6X16 92009 92009-1166 21
SCREW,6X16 92009A 92009-1621 10
NUT,FLANGED,6MM,BLACK 92015 92015-1233 2
NUT,FLANGED,8MM 92015A 92015-1406 2
NUT,LOCK,FLANGED,6MM 92015B 92015-1603 2
NUT,12MM 92015C 92015-1706 1
WASHER,8.5X20X1.6,BLACK 92022 92022-1317 4
WASHER,6.5X20X1.6,BLACK 92022A 92022-1346 11
RING-O 92055 92055-7501 2
PLUG 92066 92066-1485 1
PLUG 92066A 92066-7505 2
BULB,12V 3W,T7 92069 92069-1020 2
BULB,12V 1.7W,T10 92069A 92069-1059 2
GROMMET 92071 92071-7504 1
BAND 92072 92072-1252 4
BAND,BATTERY 92072A 92072-1441 1
BAND,L=368.3 92072B 92072-3872 2
DAMPER 92075 92075-1829 3
BUSHING-RUBBER 92092 92092-005 1
SEAL,FRONT FENDER,LH 92093 92093-1293 1
SEAL,FRONT FENDER,RH 92093A 92093-1294 1
SEAL,LOWER COVER 92093B 92093-1295 2
COLLAR 92143 92143-1087 10
BOLT,FLANGED,5X12 92151 92151-1305 2
BOLT 92151A 92151-1728 2
DAMPER 92160 92160-1148 2
DAMPER 92161 92161-0032 2
SCREW,6X18 92172 92172-0002 2
NUT,FLANGED,LOCK,8MM 92210 92210-0005 2
BOLT-FLANGED,8X22 130 130J0822 2
SCREW-CSK-CROS,6X16 221 221C0616 2
WASHER-PLAIN-SMALL,14MM 410 410B1400 1
WASHER-PLAIN,10MM,BLACK 411 411F1000 1
