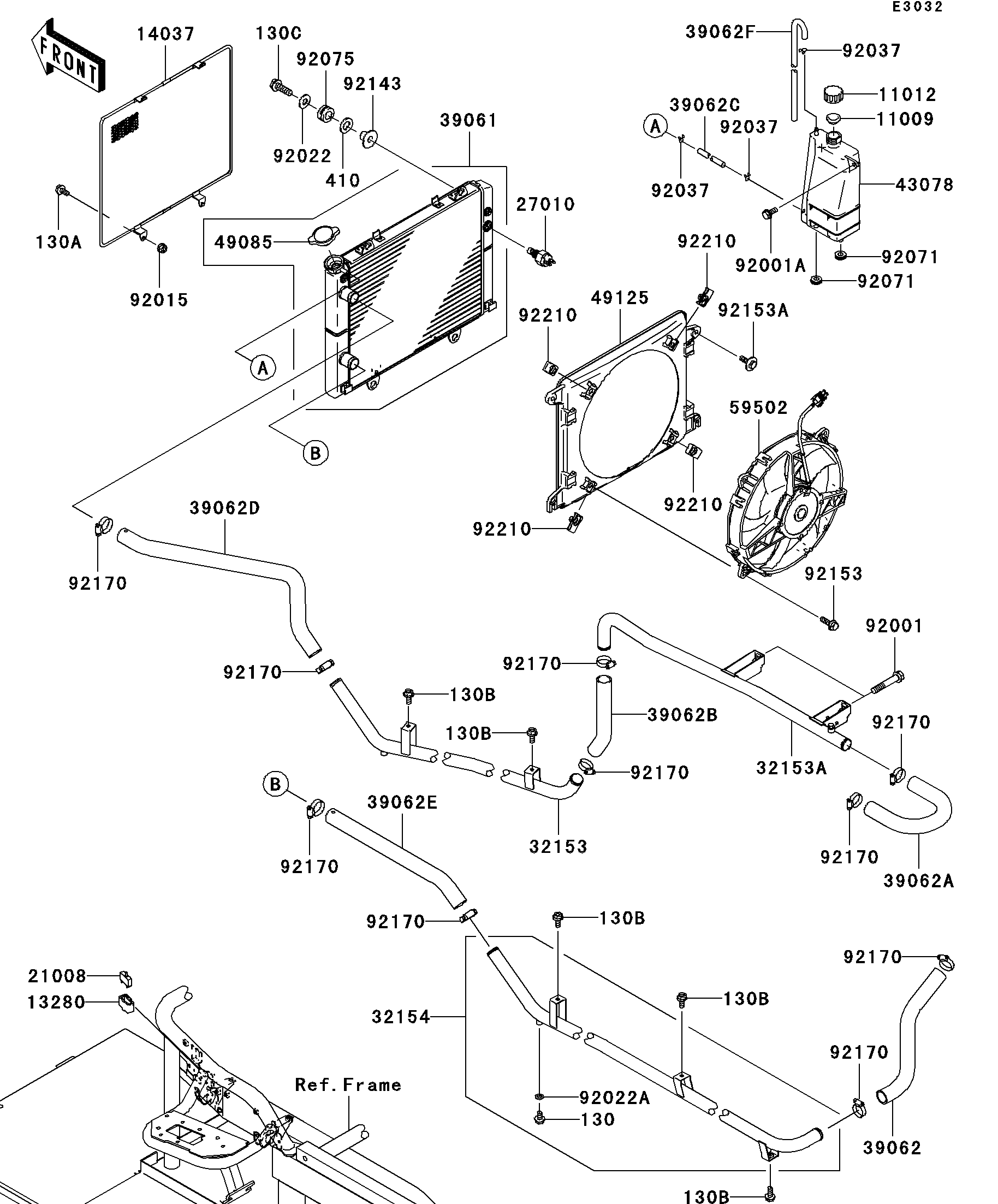

Parts Diagrams |
11009
11012
13280
14037
21008
27010
32153
32153A
32154
39061
39062
39062A
39062B
39062C
39062D
39062E
39062F
43078
49085
49125
59502
92001
92001A
92015
92022
92022A
92037
92037
92037
92071
92071
92075
92143
92153
92153A
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92210
92210
92210
92210
130
130A
130B
130B
130B
130B
130B
130C
410
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,RESERVOIR TANK CAP | 11009 | 11009-1145 | 1 | ||
| CAP | 11012 | 11012-1084 | 1 | ||
| HOLDER,BREAKER | 13280 | 13280-0082 | 1 | ||
| SCREEN | 14037 | 14037-7506 | 1 | ||
| BREAKER,FAN MOTOR | 21008 | 21008-0005 | 1 | ||
| SWITCH,FAN | 27010 | 27010-1317 | 1 | ||
| PIPE,RH | 32153 | 32153-1056 | 1 | ||
| PIPE | 32153A | 32153-1933 | 1 | ||
| PIPE | 32154 | 32154-7620 | 1 | ||
| RADIATOR-ASSY | 39061 | 39061-7504 | 1 | ||
| HOSE-COOLING | 39062 | 39062-0032 | 1 | ||
| HOSE-COOLING | 39062A | 39062-1797 | 1 | ||
| HOSE-COOLING | 39062B | 39062-1799 | 1 | ||
| HOSE-COOLING,5.5X10.5X600 | 39062C | 39062-1829 | 1 | ||
| HOSE-COOLING | 39062D | 39062-7505 | 1 | ||
| HOSE-COOLING | 39062E | 39062-7506 | 1 | ||
| HOSE-COOLING,DRAIN | 39062F | 39062-7507 | 1 | ||
| RESERVOIR | 43078 | 43078-1185 | 1 | ||
| CAP-ASSY-PRESSURE | 49085 | 49085-7501 | 1 | ||
| SHROUD | 49125 | 49125-7501 | 1 | ||
| FAN-ASSY | 59502 | 59502-7501 | 1 | ||
| BOLT,FLANGED,8X45 | 92001 | 92001-1613 | 2 | ||
| BOLT,W/P,6X16 | 92001A | 92001-1860 | 1 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1193 | 2 | ||
| WASHER,8.5X20X1.6,BLACK | 92022 | 92022-1317 | 4 | ||
| WASHER,6.2X11X1 | 92022A | 92022-304 | 1 | ||
| CLAMP,TUBE | 92037 | 92037-147 | 3 | ||
| GROMMET | 92071 | 92071-1115 | 2 | ||
| DAMPER | 92075 | 92075-294 | 4 | ||
| COLLAR | 92143 | 92143-1946 | 4 | ||
| BOLT | 92153 | 92153-7505 | 4 | ||
| BOLT | 92153A | 92153-7506 | 2 | ||
| CLAMP,COOLING HOSE | 92170 | 92170-1284 | 10 | ||
| NUT | 92210 | 92210-1331 | 4 | ||
| BOLT-FLANGED,6X10 | 130 | 130J0610 | 1 | ||
| BOLT-FLANGED,6X12 | 130A | 130J0612 | 2 | ||
| BOLT-FLANGED,6X14 | 130B | 130J0614 | 5 | ||
| BOLT-FLANGED,8X25 | 130C | 130J0825 | 4 | ||
| WASHER-PLAIN-SMALL,12MM,BLACK | 410 | 410F1200 | 4 |
