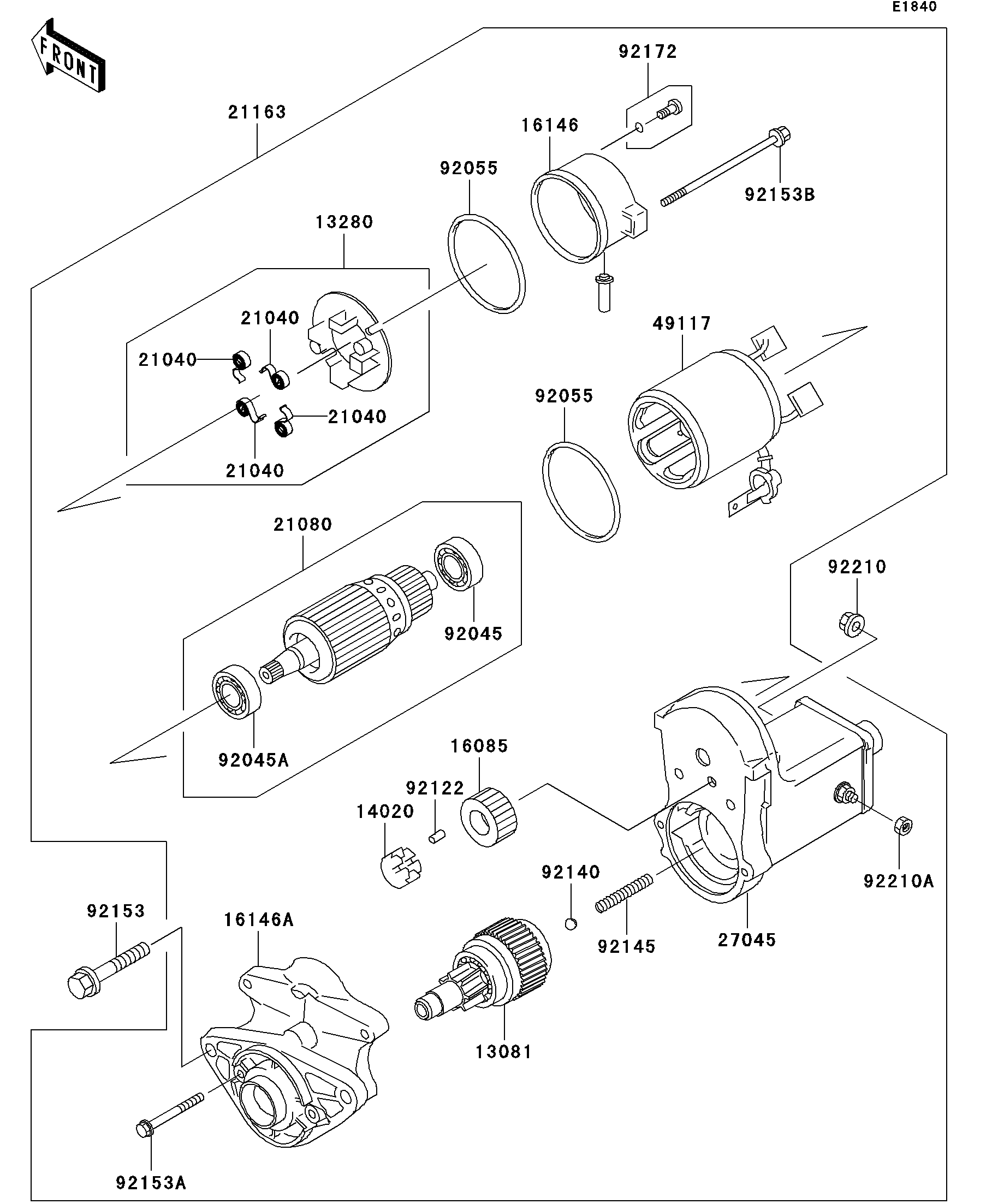

2008 Mule 3010 Diesel 4X4 - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
13081
13280
14020
16085
16146
16146A
21040
21040
21040
21040
21080
21163
27045
49117
92045
92045A
92055
92055
92122
92140
92145
92153
92153A
92153B
92172
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CLUTCH-ASSY 13081 13081-0080 1
HOLDER,STARTER BRUSH 13280 13280-0179 1
RETAINER 14020 14020-0005 1
GEAR,STARTER IDLE 16085 16085-0089 1
COVER-ASSY,COMMUTATOR END 16146 16146-0037 1
COVER-ASSY,STARTER DRIVE 16146A 16146-0038 1
SPRING-BRUSH 21040 21040-0002 4
ARMATURE,SATRTER 21080 21080-0001 1
STARTER-ELECTRIC 21163 21163-0030 1
SWITCH-ASSY,MAGNETIC 27045 27045-0008 1
YOKE,STARTER 49117 49117-0016 1
BEARING-BALL,ARMATURE,FR 92045 92045-0054 1
BEARING-BALL,ARMATURE,RR 92045A 92045-0055 1
RING-O 92055 92055-0108 2
ROLLER,IDLE GEAR 92122 92122-1210 5
BALL 92140 92140-1065 1
SPRING,MAGNET,SWITCH RETURN 92145 92145-0391 1
BOLT 92153 92153-0487 2
BOLT,5X35.2 92153A 92153-1497 2
BOLT,5X115 92153B 92153-1498 2
SCREW,4X11.8 92172 92172-0252 2
NUT,8MM 92210 92210-1219 1
NUT 92210A 92210-1231 1
