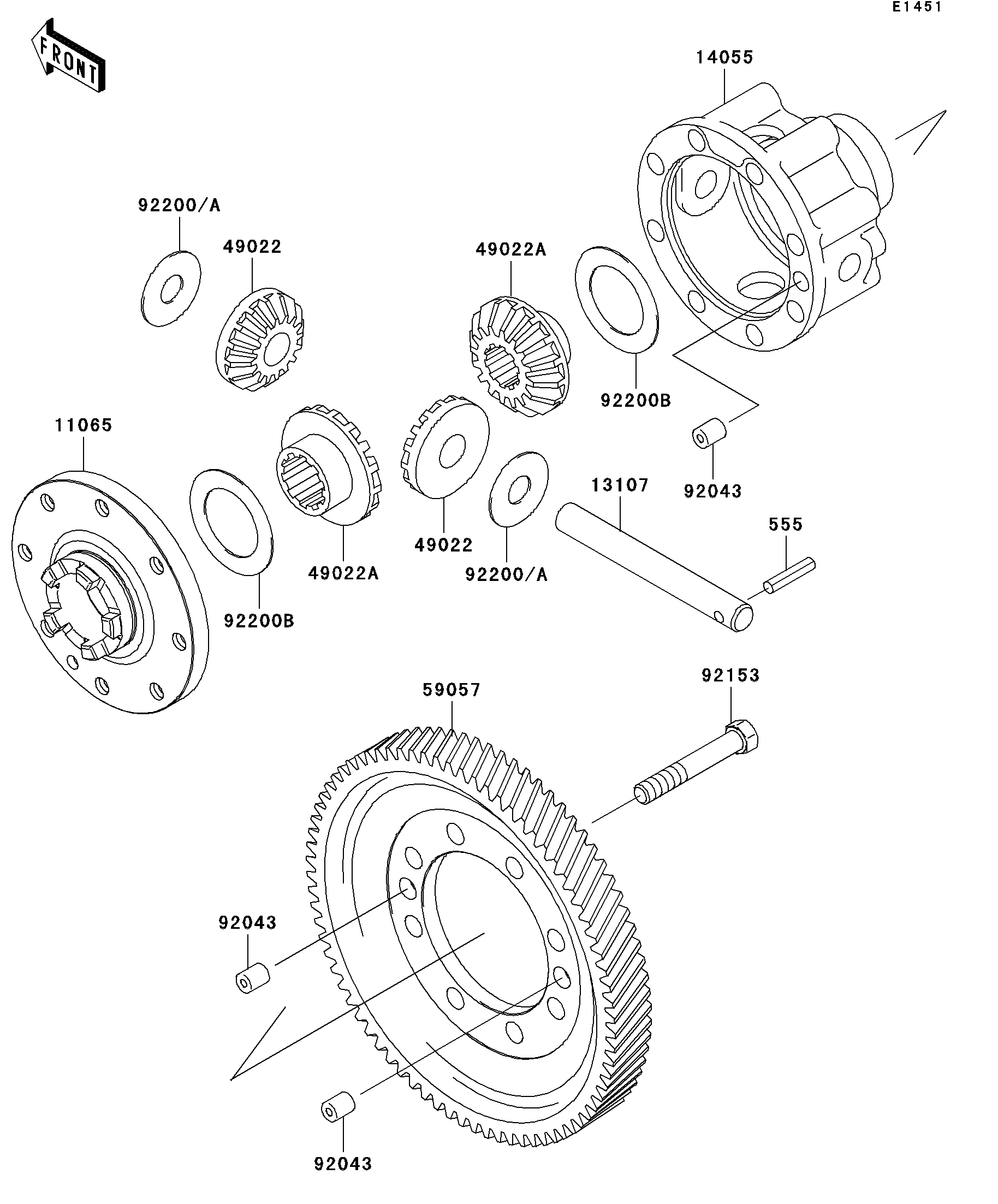

2008 Mule 3010 Diesel 4X4 - Differential
11065
13107
14055
49022
49022
49022A
49022A
59057
92043
92043
92043
92153
92200
92200
92200A
92200A
92200B
92200B
555
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,GEAR CASE | 11065 | 11065-0033 | 1 | ||
| SHAFT | 13107 | 13107-0009 | 1 | ||
| CASE-GEAR,DIFFERENTIAL | 14055 | 14055-0003 | 1 | ||
| GEAR-BEVEL,10T | 49022 | 49022-1105 | 2 | ||
| GEAR-BEVEL,16T | 49022A | 49022-1117 | 2 | ||
| GEAR-HELICAL,DIFFERENTIAL | 59057 | 59057-0002 | 1 | ||
| PIN,10X12 | 92043 | 92043-0029 | 3 | ||
| BOLT,10X63 | 92153 | 92153-0331 | 8 | ||
| WASHER,14.5X38X1.2 | 92200 | 92200-0021 | 2 | ||
| WASHER,14.5X38X1.0 | 92200A | 92200-1044 | AR | ||
| WASHER,35.5X54X1.0 | 92200B | 92200-1045 | 2 | ||
| PIN-SPRING | 555 | 555A0525 | 1 |
