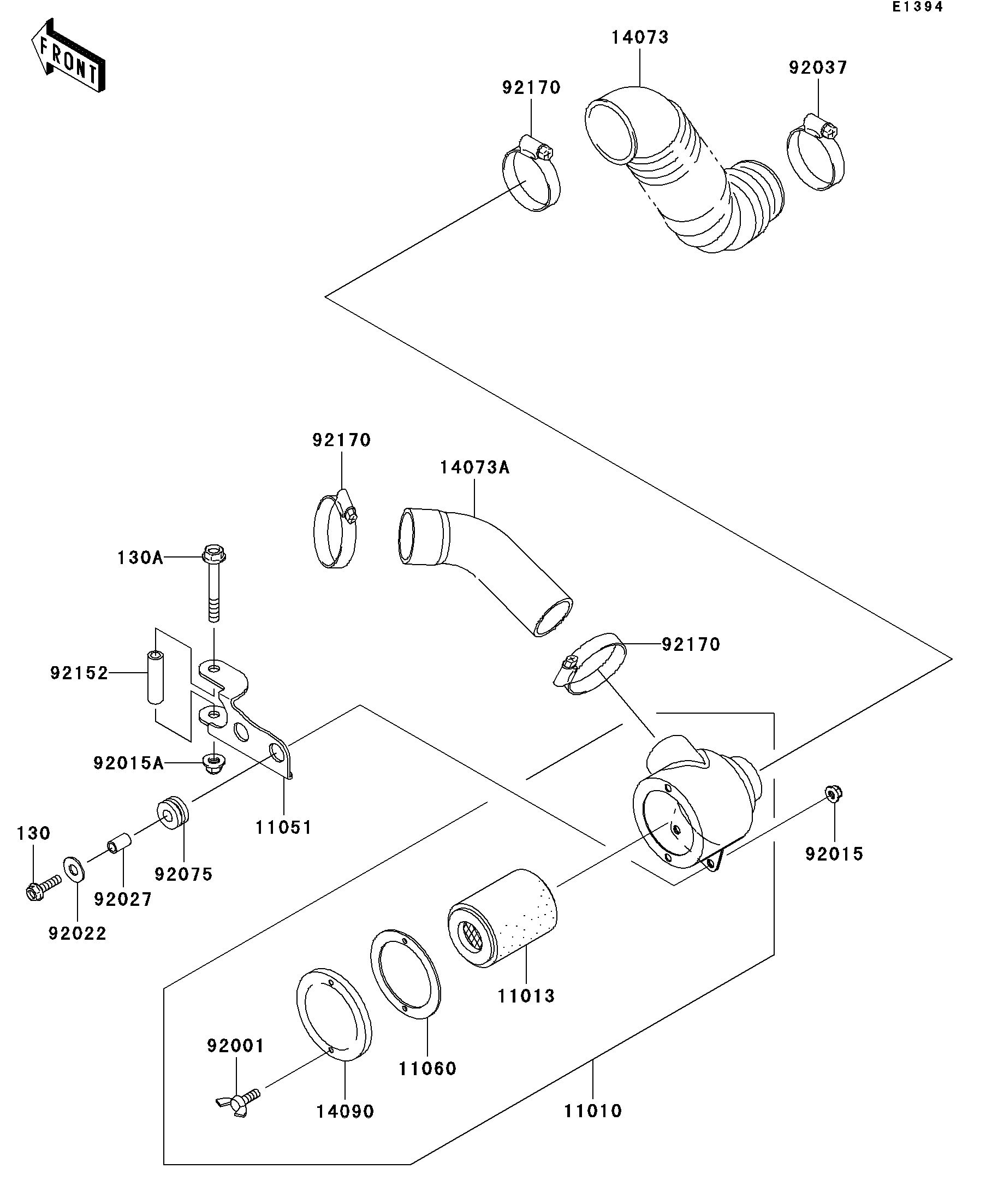

2008 Mule 3010 Diesel 4X4 - Air Cleaner-Belt Converter
11010
11013
11051
11060
14073
14073A
14090
92001
92015
92015A
92022
92027
92037
92075
92152
92170
92170
92170
130
130A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FILTER-ASSY-AIR | 11010 | 11010-0062 | 1 | ||
| ELEMENT-AIR FILTER | 11013 | 11013-1263 | 1 | ||
| BRACKET | 11051 | 11051-1337 | 1 | ||
| GASKET,AIR FILTER CASE | 11060 | 11060-1975 | 1 | ||
| DUCT,BELT CONVERTER | 14073 | 14073-1492 | 1 | ||
| DUCT | 14073A | 14073-1756 | 1 | ||
| COVER,AIR FILTER | 14090 | 14090-1766 | 1 | ||
| BOLT,WING,6X15 | 92001 | 92001-1703 | 2 | ||
| NUT,8MM | 92015 | 92015-1432 | 2 | ||
| NUT,LOCK,10MM | 92015A | 92015-1597 | 1 | ||
| WASHER,9X28X2.3 | 92022 | 92022-1632 | 2 | ||
| COLLAR,8.8X12X15.5 | 92027 | 92027-1081 | 2 | ||
| CLAMP | 92037 | 92037-3738 | 1 | ||
| DAMPER | 92075 | 92075-1736 | 2 | ||
| COLLAR,10.5X16X50 | 92152 | 92152-0083 | 1 | ||
| CLAMP | 92170 | 92170-1338 | 3 | ||
| BOLT-FLANGED,8X30 | 130 | 130C0830 | 2 | ||
| BOLT-FLANGED,10X75 | 130A | 130J1075 | 1 |
