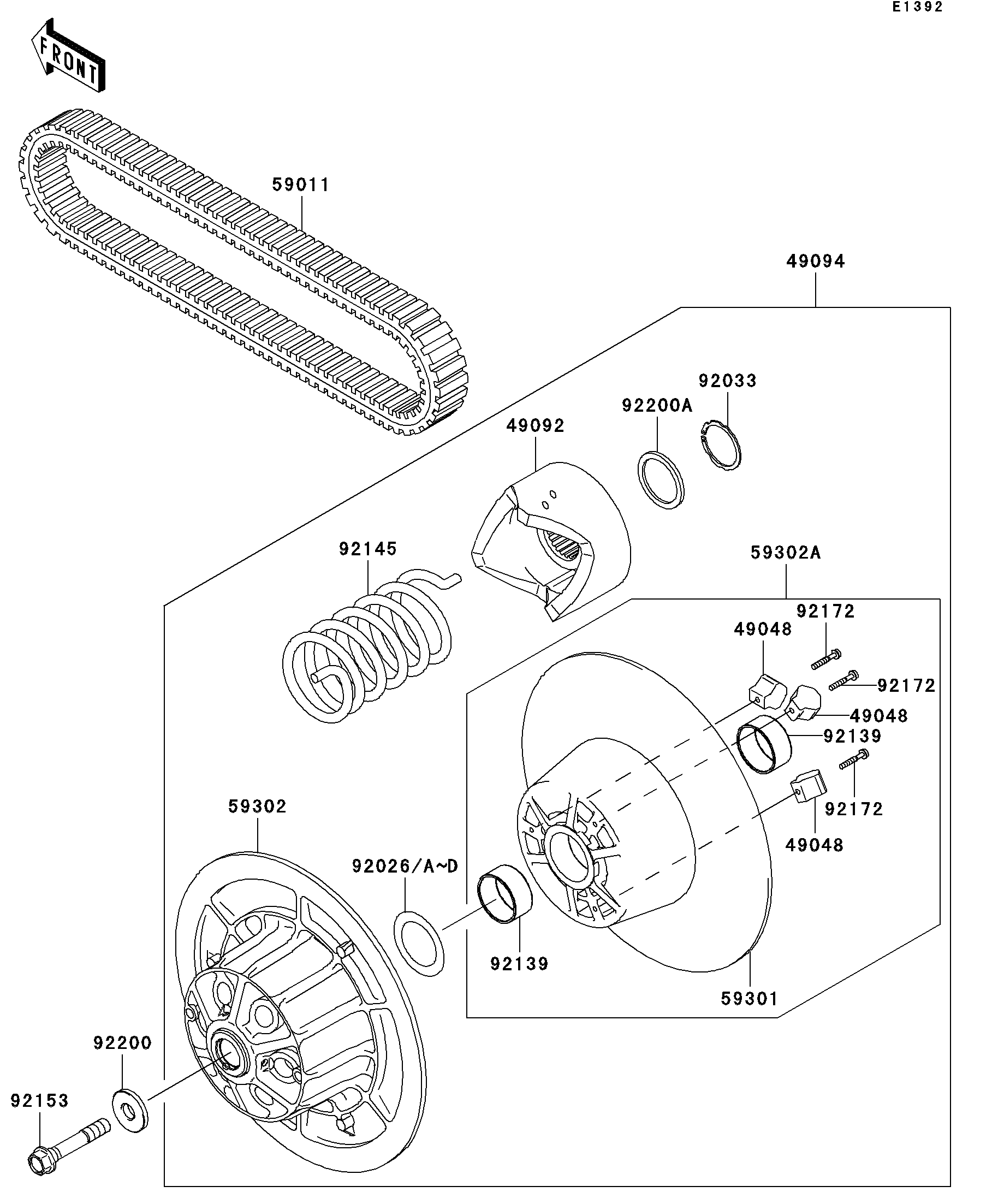

2008 Mule 3010 Diesel 4X4 - Driven Converter/Drive Belt

DOWNLOAD PDF
SELECT A NEW PART
49048
49048
49048
49092
49094
59011
59301
59302
59302A
92026
92026A
92026B
92026C
92026D
92033
92139
92139
92145
92153
92172
92172
92172
92200
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHOE 49048 49048-1097 3
RAMP 49092 49092-1069 1
CONVERTER-ASSY-DRIVEN 49094 49094-0034 1
BELT 59011 59011-1087 1
SHEAVE-MOVABLE 59301 59301-1072 1
SHEAVE-COMP 59302 59302-0024 1
SHEAVE-COMP,MOVABLE 59302A 59302-1104 1
SPACER,40.5X58X0.3 92026 92026-0036 AR
SPACER,40.5X58X1.0 92026A 92026-1625 1
SPACER,40.5X58X0.6 92026B 92026-1626 AR
SPACER,40.5X58X1.4 92026C 92026-1627 AR
SPACER,40.5X58X0.8 92026D 92026-1628 AR
RING-SNAP 92033 92033-1317 1
BUSHING 92139 92139-1078 2
SPRING,DRIVEN CONVERTER 92145 92145-0047 1
BOLT,12X70 92153 92153-0509 1
SCREW,4X25 92172 92172-0060 3
WASHER 92200 92200-0069 1
WASHER,40X46.4X2.5 92200A 92200-1645 1
