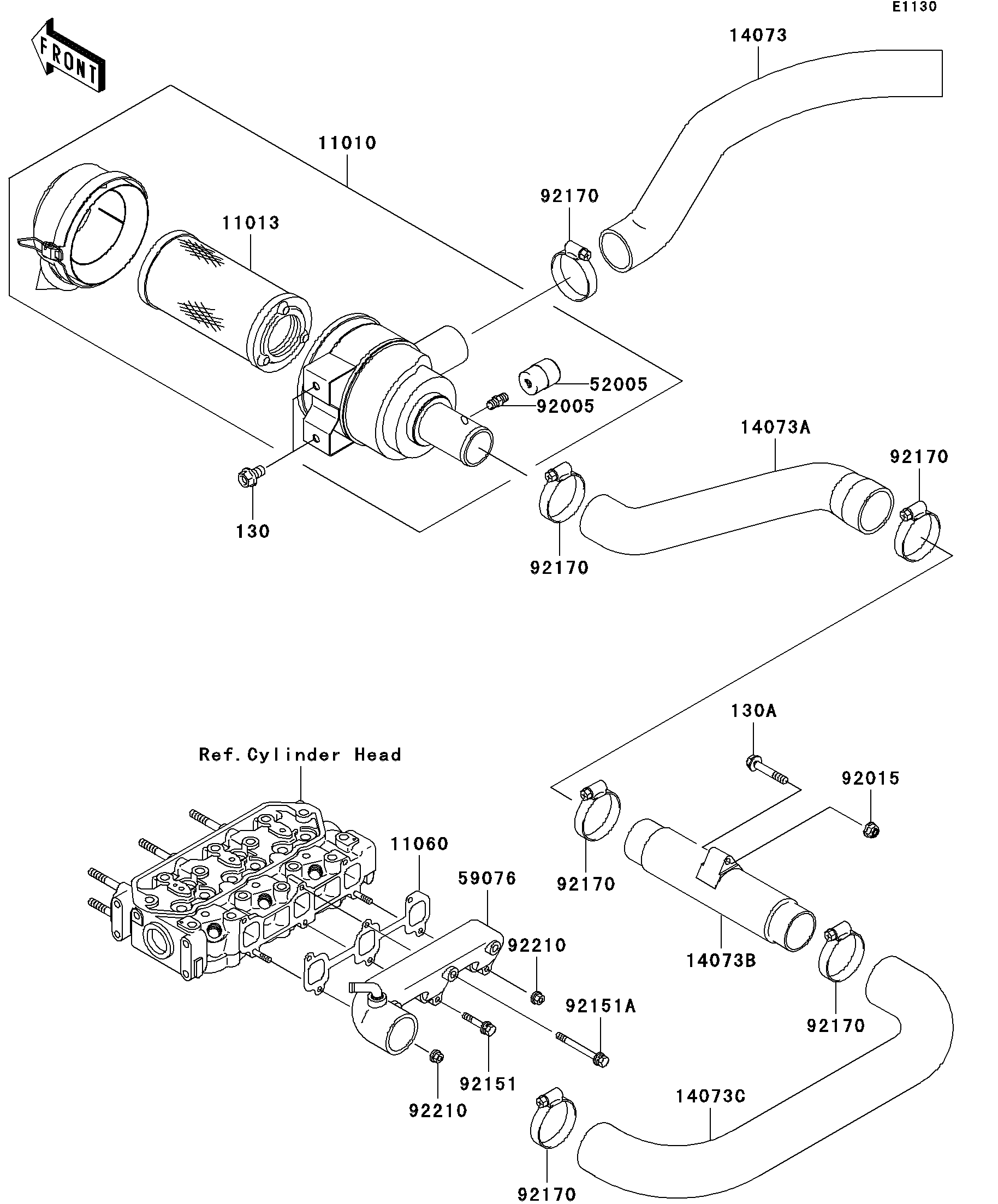

2008 Mule 3010 Diesel 4X4 - Air Cleaner
11010
11013
11060
14073
14073A
14073B
14073C
52005
59076
92005
92015
92151
92151A
92170
92170
92170
92170
92170
92170
92210
92210
130
130A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FILTER-ASSY-AIR | 11010 | 11010-0075 | 1 | ||
| ELEMENT-AIR FILTER | 11013 | 11013-1290 | 1 | ||
| GASKET,INTAKE MANIFOLD | 11060 | 11060-1960 | 1 | ||
| DUCT,AIR CLEANER,INLET | 14073 | 14073-1752 | 1 | ||
| DUCT,AIR CLEANER,OUTLET | 14073A | 14073-1753 | 1 | ||
| DUCT,AIR CLEANER,OUTLET | 14073B | 14073-1754 | 1 | ||
| DUCT,ENGINE,INLET | 14073C | 14073-1755 | 1 | ||
| GAUGE | 52005 | 52005-0017 | 1 | ||
| MANIFOLD-INTAKE | 59076 | 59076-1112 | 1 | ||
| FITTING,AIR FILTER | 92005 | 92005-1386 | 1 | ||
| NUT,LOCK,FLANGED,6MM | 92015 | 92015-1675 | 1 | ||
| BOLT,6X20 | 92151 | 92151-1667 | 1 | ||
| BOLT,6X60 | 92151A | 92151-1695 | 3 | ||
| CLAMP | 92170 | 92170-1338 | 6 | ||
| NUT,6MM | 92210 | 92210-1210 | 2 | ||
| BOLT-FLANGED,8X14 | 130 | 130J0814 | 2 | ||
| BOLT-FLANGED,6X35 | 130A | 130L0635 | 1 |
