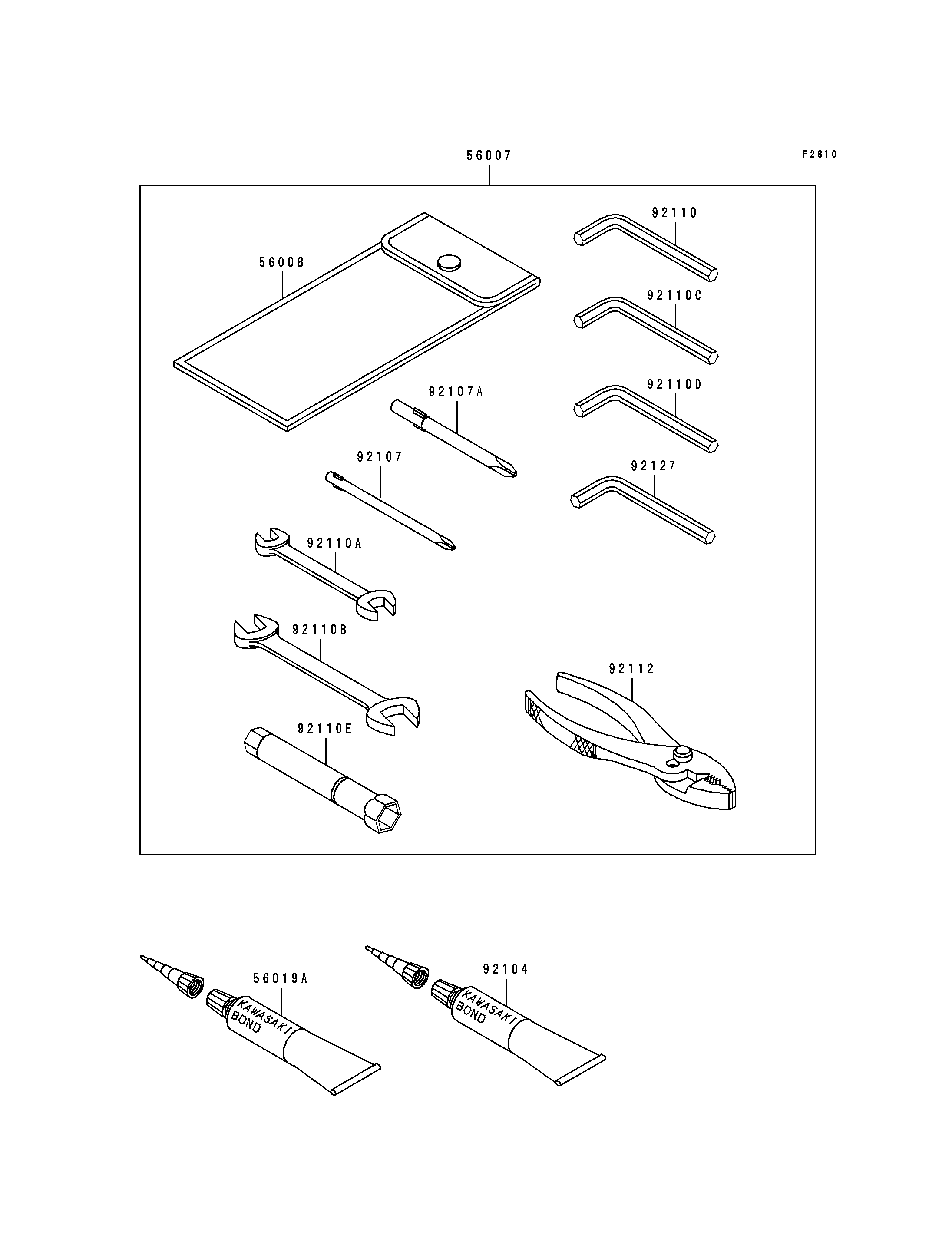

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TOOL-KIT | 56007 | 56007-1370 | 1 | ||
| BAG,TOOL | 56008 | 56008-1075 | 1 | ||
| THREE BOND TB1211,HT/RS,WHITE | 56019A | 56019-120 | 1 | ||
| GASKET-LIQUID,TUBE,100G,SILVER | 92104 | 92104-002 | 1 | ||
| TOOL-DRIVER,#2PHILLIPS | 92107 | 92107-006 | 1 | ||
| TOOL-DRIVER,#3PHILLIPS | 92107A | 92107-1002 | 1 | ||
| TOOL-WRENCH,ALLEN,5MM | 92110 | 92110-1015 | 1 | ||
| TOOL-WRENCH,OPEN END,10X12 | 92110A | 92110-1038 | 1 | ||
| TOOL-WRENCH,OPEN END,14X17 | 92110B | 92110-1045 | 1 | ||
| TOOL-WRENCH,ALLEN,12MM | 92110C | 92110-1104 | 1 | ||
| TOOL-WRENCH,ALLEN,8MM | 92110D | 92110-1108 | 1 | ||
| TOOL-WRENCH,BOX,16MM | 92110E | 92110-1162 | 1 | ||
| TOOL-PLIERS | 92112 | 92112-003 | 1 | ||
| TOOL-WRENCH,ALLEN,6MM | 92127 | 92127-003 | 1 |
