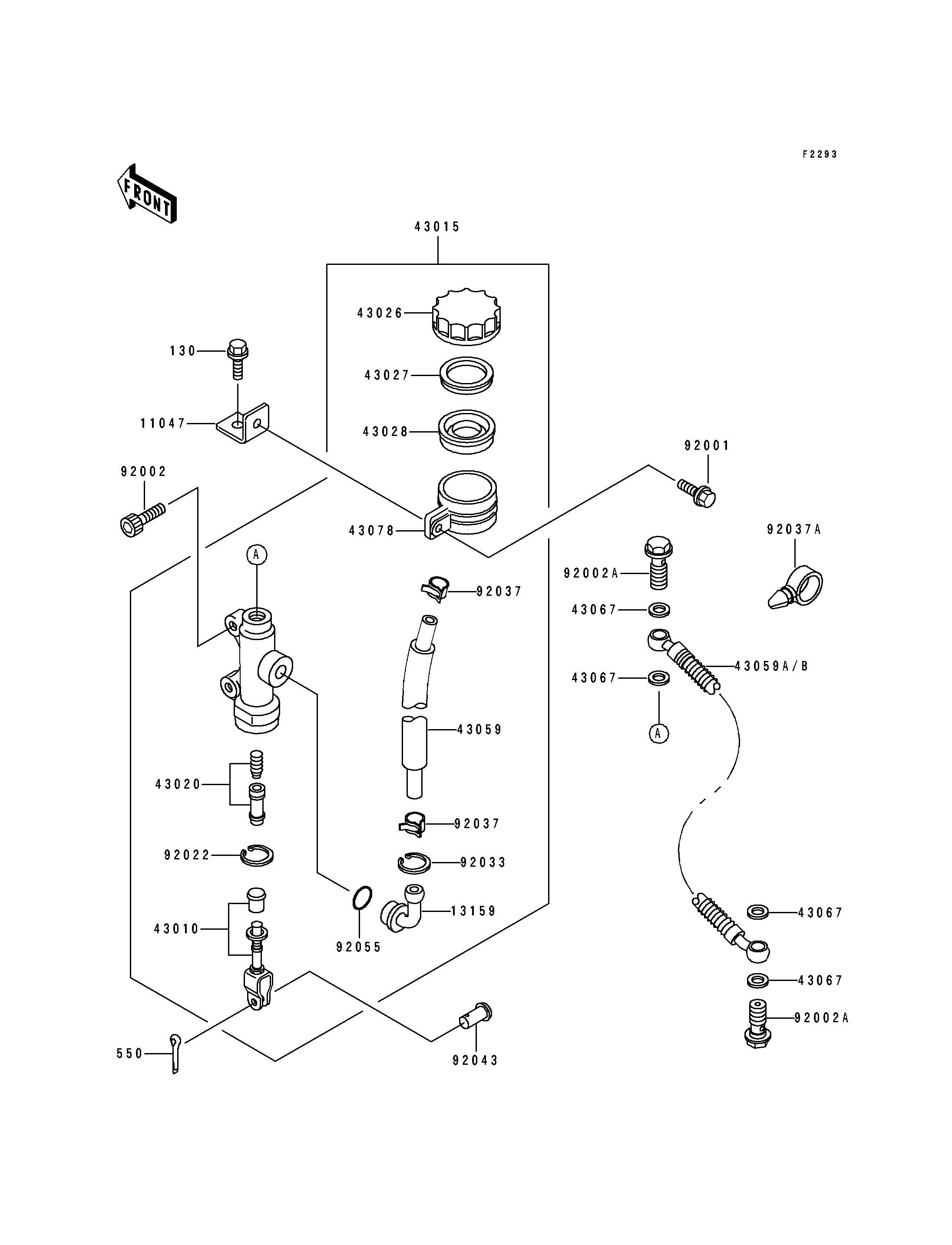

1994 ZR1100 Zephyr - Rear Master Cylinder
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,RESERVOIR TANK | 11047 | 11047-1633 | 1 | ||
| CONNECTOR,RR MASTER CYLINDER | 13159 | 13159-1052 | 1 | ||
| ROD-ASSY-BRAKE | 43010 | 43010-1072 | 1 | ||
| CYLINDER-ASSY-MASTER,RR | 43015 | 43015-1491 | 1 | ||
| PISTON-COMP-BRAKE,RR | 43020 | 43020-1067 | 1 | ||
| CAP-BRAKE | 43026 | 43026-1051 | 1 | ||
| PLATE-DIAPHRAGM | 43027 | 43027-1051 | 1 | ||
| DIAPHRAGM,MASTER CYLINDER | 43028 | 43028-1057 | 1 | ||
| HOSE-BRAKE,RR MASTER CYLINDER | 43059 | 43059-1566 | 1 | ||
| HOSE-BRAKE,RR | 43059B | 43059-1782 | 1 | ||
| WASHER,10.5X15X1.5 | 43067 | 43067-001 | 4 | ||
| RESERVOIR,RR MASTER CYLINDER | 43078 | 43078-1082 | 1 | ||
| BOLT,W/P,6X16 | 92001 | 92001-1860 | 1 | ||
| BOLT,SOCKET,8X30 | 92002 | 92002-1179 | 2 | ||
| BOLT,OIL,L=23 | 92002A | 92002-1888 | 2 | ||
| WASHER,CIRCRIP | 92022 | 92022-1601 | 1 | ||
| RING-SNAP,20.5MM | 92033 | 92033-1186 | 1 | ||
| CLAMP,BRAKE HOSE | 92037 | 92037-1547 | 2 | ||
| CLAMP,HOSE | 92037A | 92037-1827 | 1 | ||
| PIN,8MM | 92043 | 92043-1303 | 1 | ||
| RING-O,MASTER CYLINDER | 92055 | 92055-1251 | 1 | ||
| BOLT-FLANGED | 130 | 130D0610 | 1 | ||
| PIN-COTTER,2.0X15 | 550 | 550D2015 | 1 |
