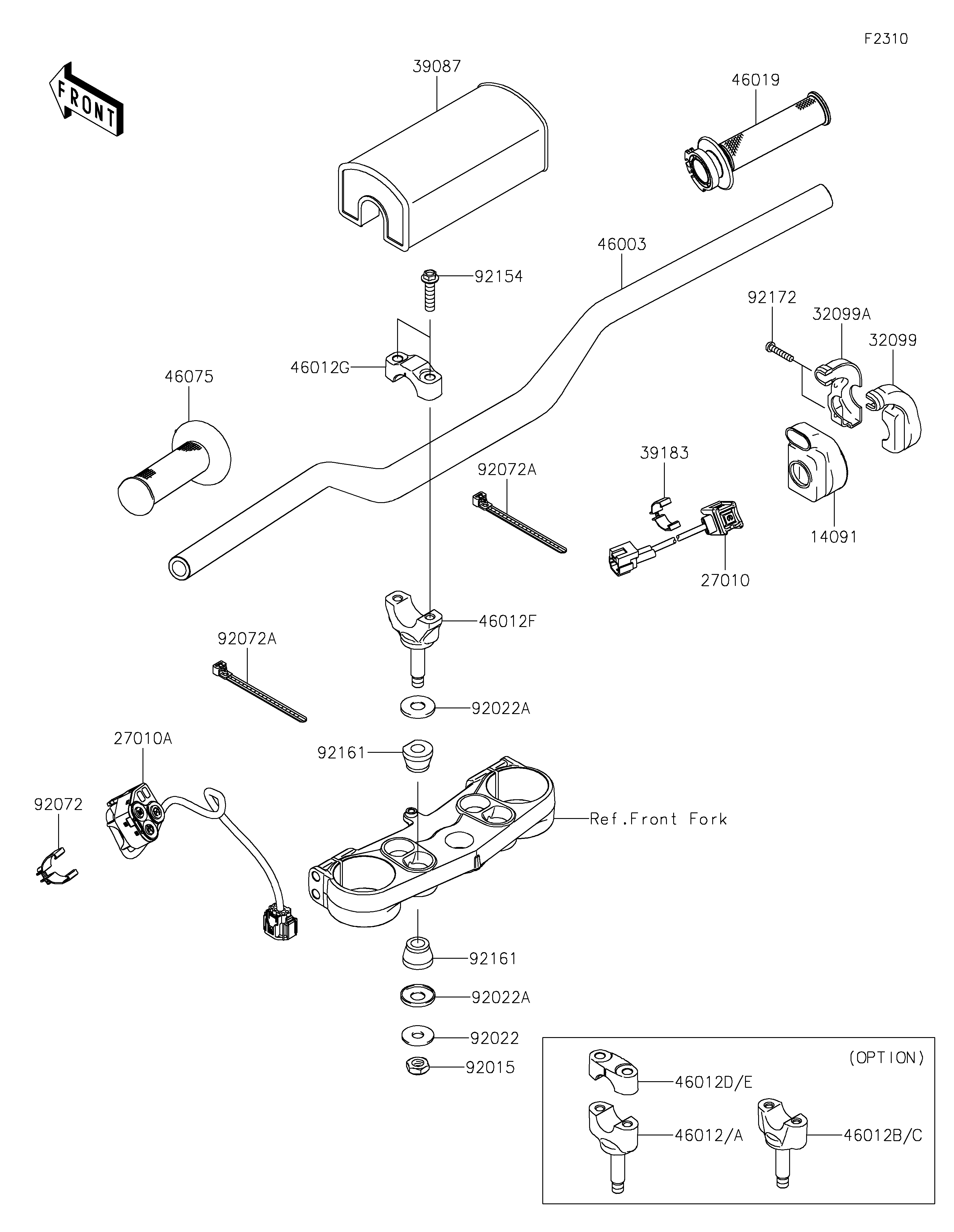

2024 KX™450 50th ANNIVERSARY EDITION - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
14091
27010
27010A
32099
32099A
39087
39183
46003
46012
46012A
46012B
46012C
46012D
46012E
46012F
46012G
46019
46075
92015
92022
92022A
92022A
92072
92072A
92072A
92154
92161
92161
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,THROTTLE CASE 14091 14091-0182 1
SWITCH,STARTER 27010 27010-0994 1
SWITCH,COMBINATION 27010A 27010-0995 1
CASE,THROTTLE,RR 32099 32099-0002 1
CASE,THROTTLE,FR 32099A 32099-0003 1
PAD-HANDLE 39087 39087-0015 1
BAND-ASSY,SWITCH 39183 39183-1059 1
HANDLE,RENTHAL,FATBAR,839 46003 46003-0829 1
HOLDER-HANDLE,LWR,F.BLACK 46012 46012-0013-21 2 (OPTION)
HOLDER-HANDLE,LWR,P.SILVER 46012A 46012-0013-458 2 (OPTION)
HOLDER-HANDLE,LWR,F.BLACK 46012B 46012-0048-21 2 (OPTION)
HOLDER-HANDLE,LWR,P.SILVER 46012C 46012-0048-458 2 (OPTION)
HOLDER-HANDLE,UPP,F.BLACK 46012D 46012-0324-21 2 (OPTION)
HOLDER-HANDLE,UPP,P.SILVER 46012E 46012-0324-458 2 (OPTION)
HOLDER-HANDLE,LWR,FAT BAR 46012F 46012-0417 2
HOLDER-HANDLE,UPP,FAT BAR 46012G 46012-0418 2
GRIP-ASSY,THROTTLE 46019 46019-0121 1
GRIP,LH 46075 46075-0674 1
NUT,LOCK,10MM 92015 92015-1962 2
WASHER,10.2X28X2 92022 92022-1088 2
WASHER 92022A 92022-1737 4
BAND 92072 92072-0927 1
BAND,L=140 92072A 92072-1293 2
BOLT,8X32 92154 92154-2974 4
DAMPER,HANDLE HOLDER 92161 92161-0929 4
SCREW,5X20 92172 92172-0069 2
