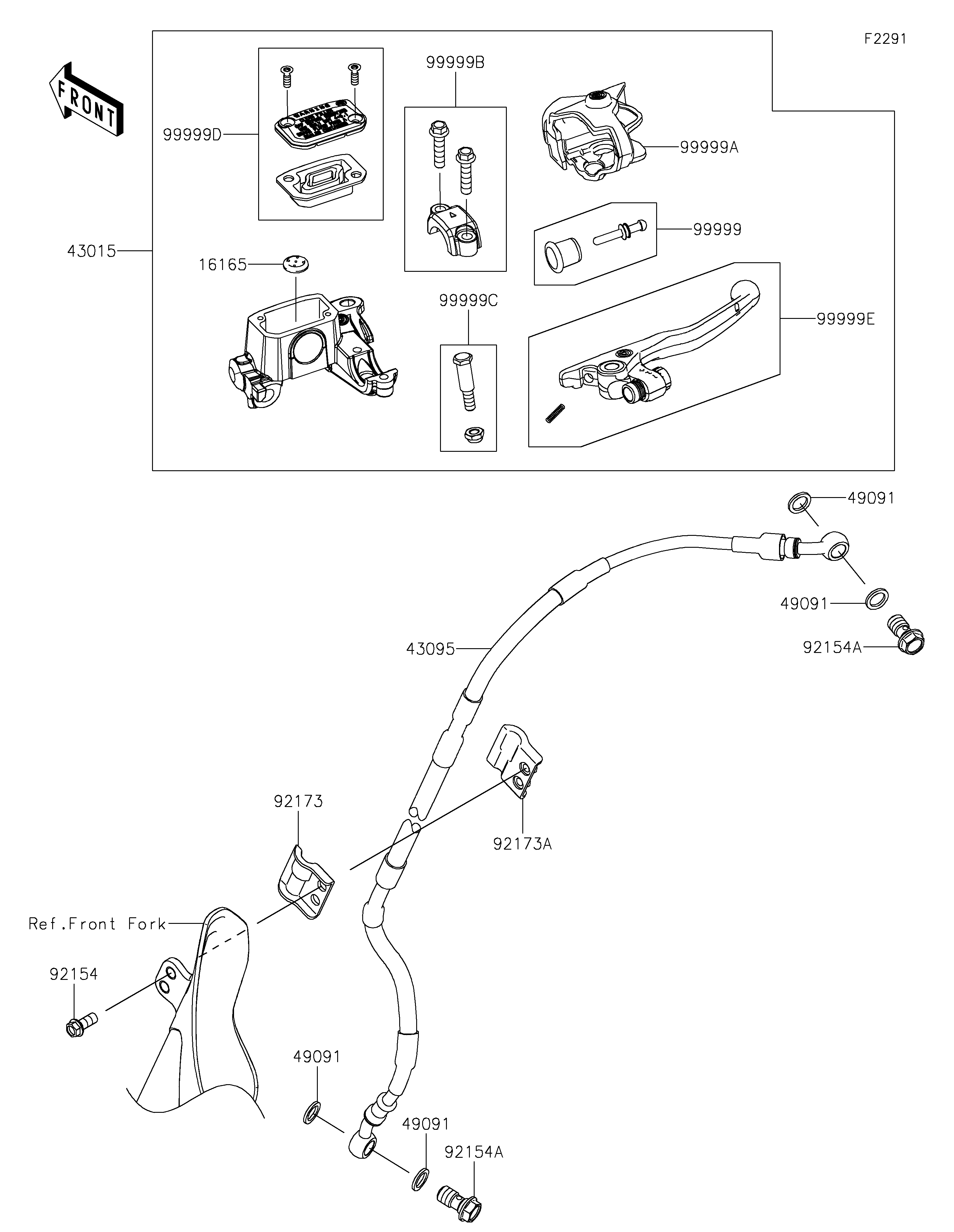

2024 KX™450 50th ANNIVERSARY EDITION - Front Master Cylinder
16165
43015
43095
49091
49091
49091
49091
92154
92154A
92154A
92173
92173A
99999
99999A
99999B
99999C
99999D
99999E
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SEPARATOR | 16165 | 16165-0020 | 1 | ||
| CYLINDER-ASSY-MASTER,FR | 43015 | 43015-0809 | 1 | ||
| HOSE-BRAKE,FR M/C-FR CALIPER | 43095 | 43095-1912 | 1 | ||
| WASHER-SEAL,10.1X14.5X1.5 | 49091 | 49091-0001 | 4 | ||
| BOLT,FLANGED,6X14 | 92154 | 92154-2964 | 2 | ||
| BOLT,BANJO,10X19 | 92154A | 92154-7102 | 2 | ||
| CLAMP,BRAKE HOSE,LH | 92173 | 92173-1177 | 1 | ||
| CLAMP,BRAKE HOSE,RH | 92173A | 92173-1178 | 1 | ||
| KIT,PUSH ROD | 99999 | 99999-0860 | 1 | ||
| KIT,DUST COVER | 99999A | 99999-0861 | 1 | ||
| KIT,CLAMP | 99999B | 99999-0862 | 1 | ||
| KIT,LEVER PIN | 99999C | 99999-0863 | 1 | ||
| KIT,RESERVOIR CAP | 99999D | 99999-0864 | 1 | ||
| KIT,LEVER | 99999E | 99999-0865 | 1 |
