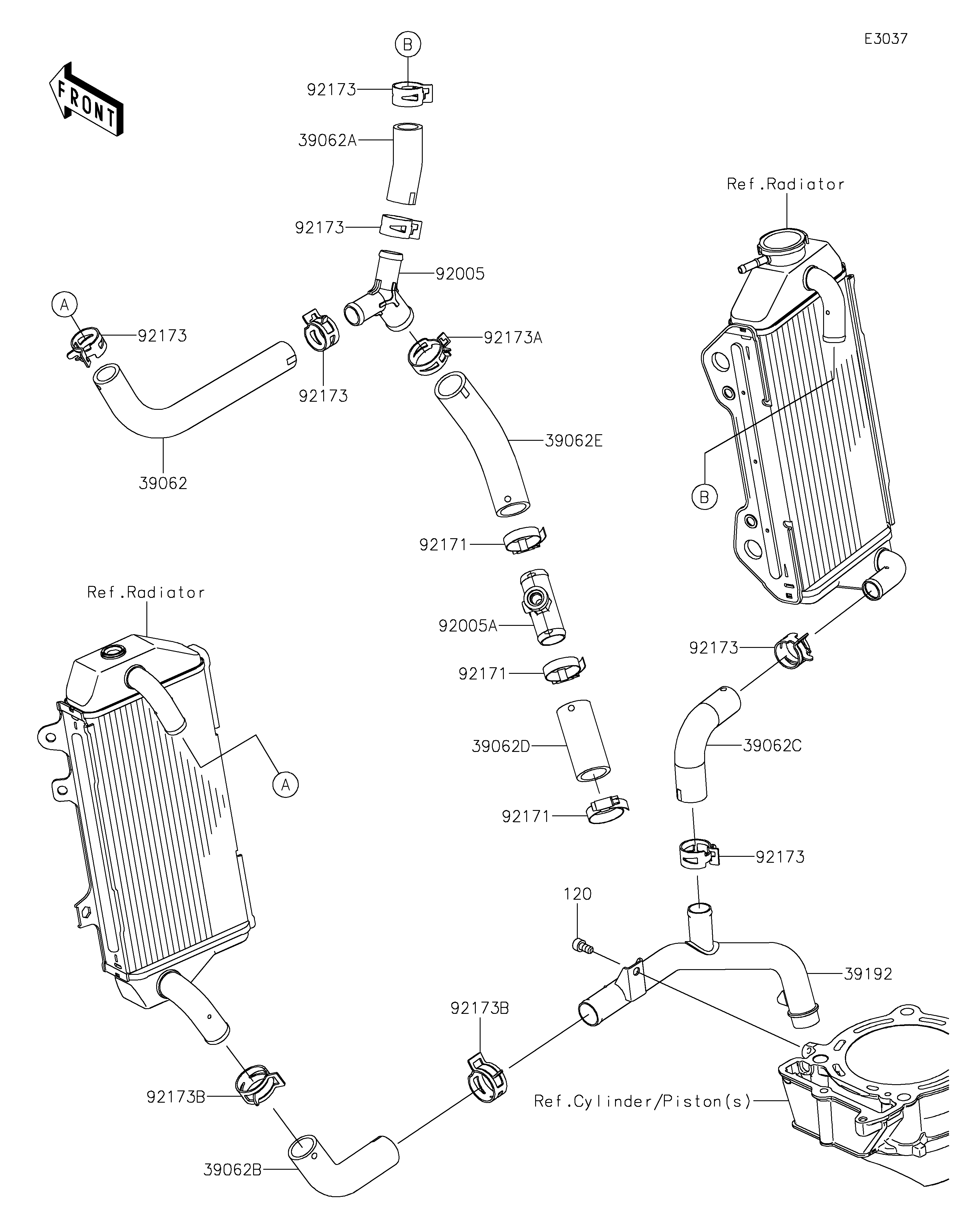

2024 KX™450 50th ANNIVERSARY EDITION - Water Pipe
39062
39062A
39062B
39062C
39062D
39062E
39192
92005
92005A
92171
92171
92171
92173
92173
92173
92173
92173
92173
92173A
92173B
92173B
120
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOSE-COOLING,RAD.LH UPP-FIT. | 39062 | 39062-0707 | 1 | ||
| HOSE-COOLING,RAD.RH UPP-FIT. | 39062A | 39062-0933 | 1 | ||
| HOSE-COOLING,RAD.LH LWR-FIT. | 39062B | 39062-1939 | 1 | ||
| HOSE-COOLING,RAD.RH LWR-FIT. | 39062C | 39062-1940 | 1 | ||
| HOSE-COOLING,CYL.HEAD-RAD | 39062D | 39062-1942 | 1 | ||
| HOSE-COOLING,CYL.HEAD-RAD | 39062E | 39062-1943 | 1 | ||
| PIPE-WATER | 39192 | 39192-0724 | 1 | ||
| FITTING,3WAY | 92005 | 92005-0902 | 1 | ||
| FITTING,WATER TEMP SENSOR | 92005A | 92005-1463 | 1 | ||
| CLAMP | 92171 | 92171-0179 | 3 | ||
| CLAMP | 92173 | 92173-1417 | 6 | ||
| CLAMP | 92173A | 92173-1464 | 1 | ||
| CLAMP | 92173B | 92173-1688 | 2 | ||
| BOLT-SOCKET,6X12 | 120 | 120CB0612 | 1 |
| HOSE-COOLING,RAD.LH UPP-FIT. | |
| REF # | 39062 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,RAD.RH UPP-FIT. | |
| REF # | 39062A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,RAD.LH LWR-FIT. | |
| REF # | 39062B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,RAD.RH LWR-FIT. | |
| REF # | 39062C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,CYL.HEAD-RAD | |
| REF # | 39062D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,CYL.HEAD-RAD | |
| REF # | 39062E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-WATER | |
| REF # | 39192 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FITTING,3WAY | |
| REF # | 92005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FITTING,WATER TEMP SENSOR | |
| REF # | 92005A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92173A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92173B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,6X12 | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
