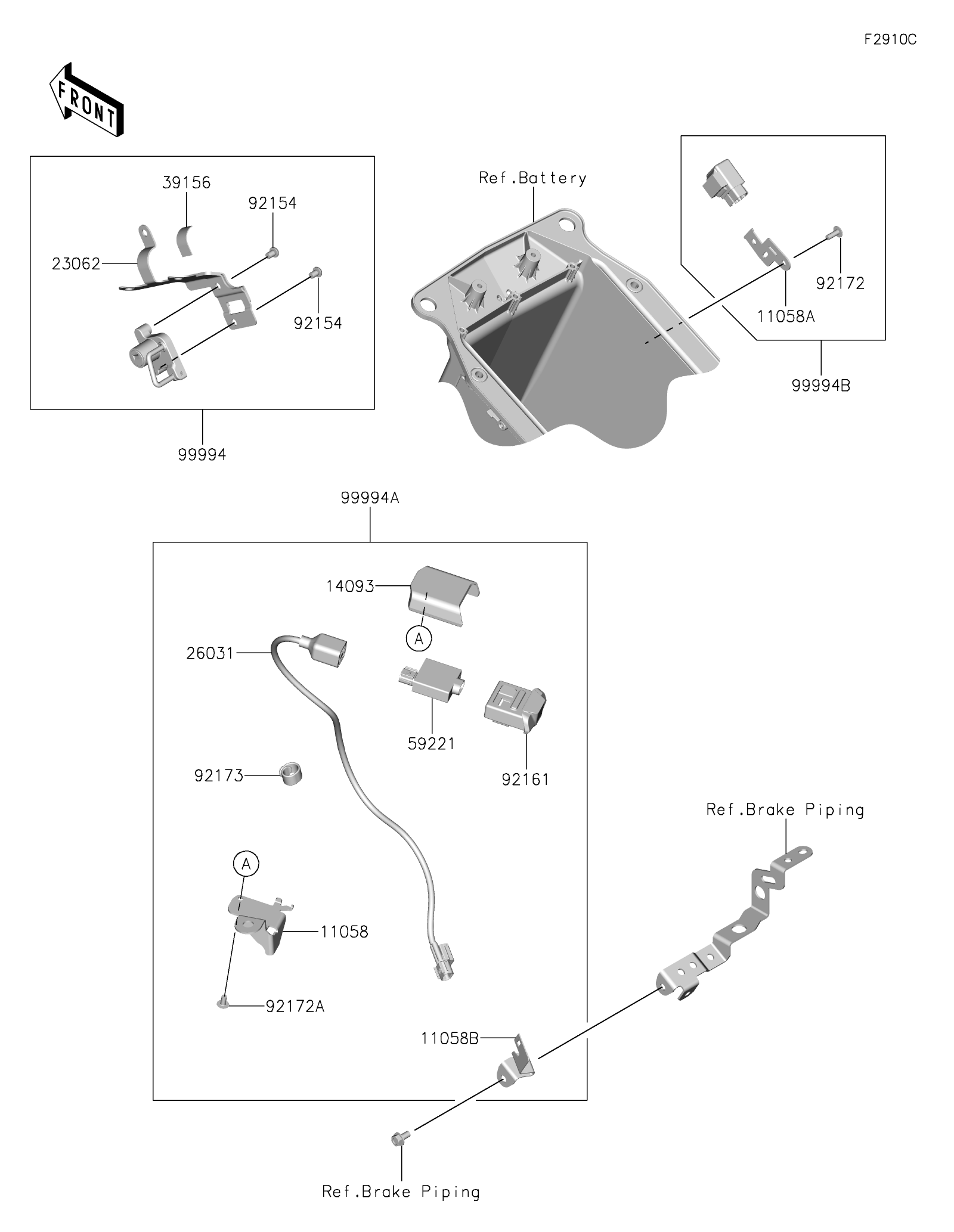

2024 Z e-1 ABS - Accessory(Helmet Lock and USB)
11058
11058A
11058B
14093
23062
26031
39156
59221
92154
92154
92161
92172
92172A
92173
99994
99994A
99994B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11058 | 11058-0922 | 1 | ||
| BRACKET | 11058A | 11058-1061 | 1 | ||
| BRACKET | 11058B | 11058-1339 | 1 | ||
| COVER,USB | 14093 | 14093-1458 | 1 | ||
| BRACKET-COMP | 23062 | 23062-1435 | 1 | ||
| HARNESS | 26031 | 26031-4037 | 1 | ||
| PAD | 39156 | 39156-2891 | 1 | ||
| CONNECTOR-CORD,USB TYPE-C | 59221 | 59221-0022 | 1 | ||
| BOLT,ONE SIDE,6X8 | 92154 | 92154-2948 | 2 | ||
| DAMPER | 92161 | 92161-2497 | 1 | ||
| SCREW,TAPPING,5X14 | 92172 | 92172-0265 | 1 | ||
| SCREW,5X10 | 92172A | 92172-1194 | 1 | ||
| CLAMP | 92173 | 92173-2198 | 1 | ||
| HELMET LOCK | 99994 | 99994-1957 | 1 | ||
| USB OUTLET TYPE-C | 99994A | 99994-1977 | 1 | ||
| ACC-RELAY | 99994B | 99994-1989 | 1 |
