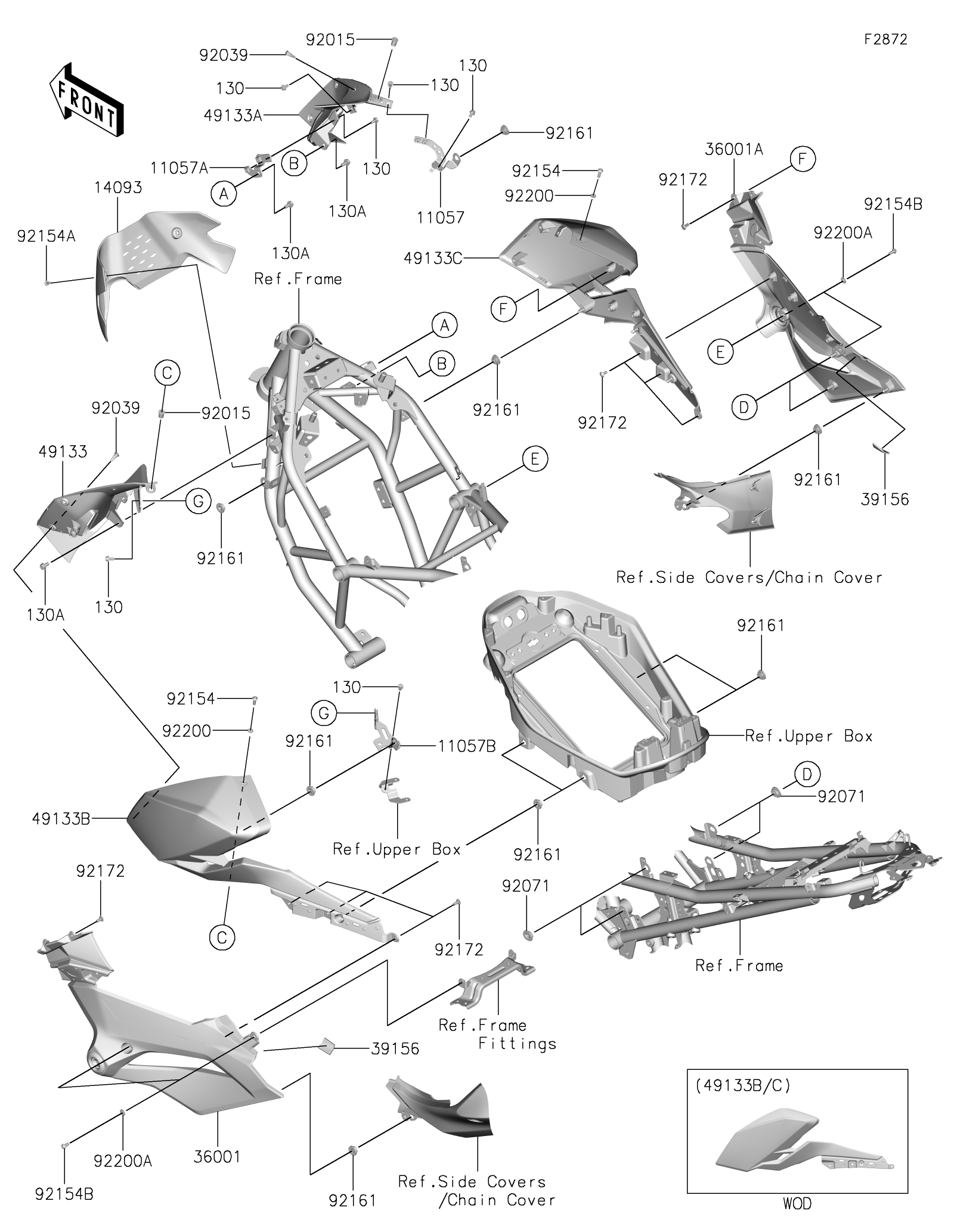

2024 Z e-1 ABS - Cowling Lowers

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
11057B
14093
36001
36001A
39156
39156
49133
49133A
49133B
49133C
92015
92015
92039
92039
92071
92071
92154
92154
92154A
92154B
92154B
92161
92161
92161
92161
92161
92161
92161
92161
92172
92172
92172
92172
92200
92200
92200A
92200A
130
130
130
130
130
130
130A
130A
130A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SHROUD,INNER,RH,UPP 11057 11057-1720 1
BRACKET,SHROUD,INNER,RH,LWR 11057A 11057-1721 1
BRACKET,SHROUD,INNER,LH 11057B 11057-2971 1
COVER,CNT,FR 14093 14093-1472 1
COVER-SIDE,LH 36001 36001-0670 1
COVER-SIDE,RH 36001A 36001-0671 1
PAD 39156 39156-2469 2
SHROUD,INNER,LH 49133 49133-0029 1
SHROUD,INNER,RH 49133A 49133-0030 1
SHROUD,OUTER,LH,M.B.SILVER 49133B 49133-0031-63S 1
SHROUD,OUTER,RH,M.B.SILVER 49133C 49133-0032-63S 1
NUT,WELL,5MM 92015 92015-1757 2
RIVET 92039 92039-0060 6
GROMMET,20X24X7.5 92071 92071-0766 4
BOLT,SOCKET,5X16 92154 92154-0209 2
BOLT,SOCKET,5X10 92154A 92154-0211 2
BOLT,SOCKET,5X12 92154B 92154-1421 4
DAMPER 92161 92161-1531 10
SCREW,5X12 92172 92172-0821 14
WASHER,NYLONE,5.3X11.5X0.5 92200 92200-0006 2
WASHER,5.3X13X1.2 92200A 92200-2211 4
BOLT-FLANGED,5X10 130 130BA0510 8
BOLT-FLANGED,6X12 130A 130BB0612 4
