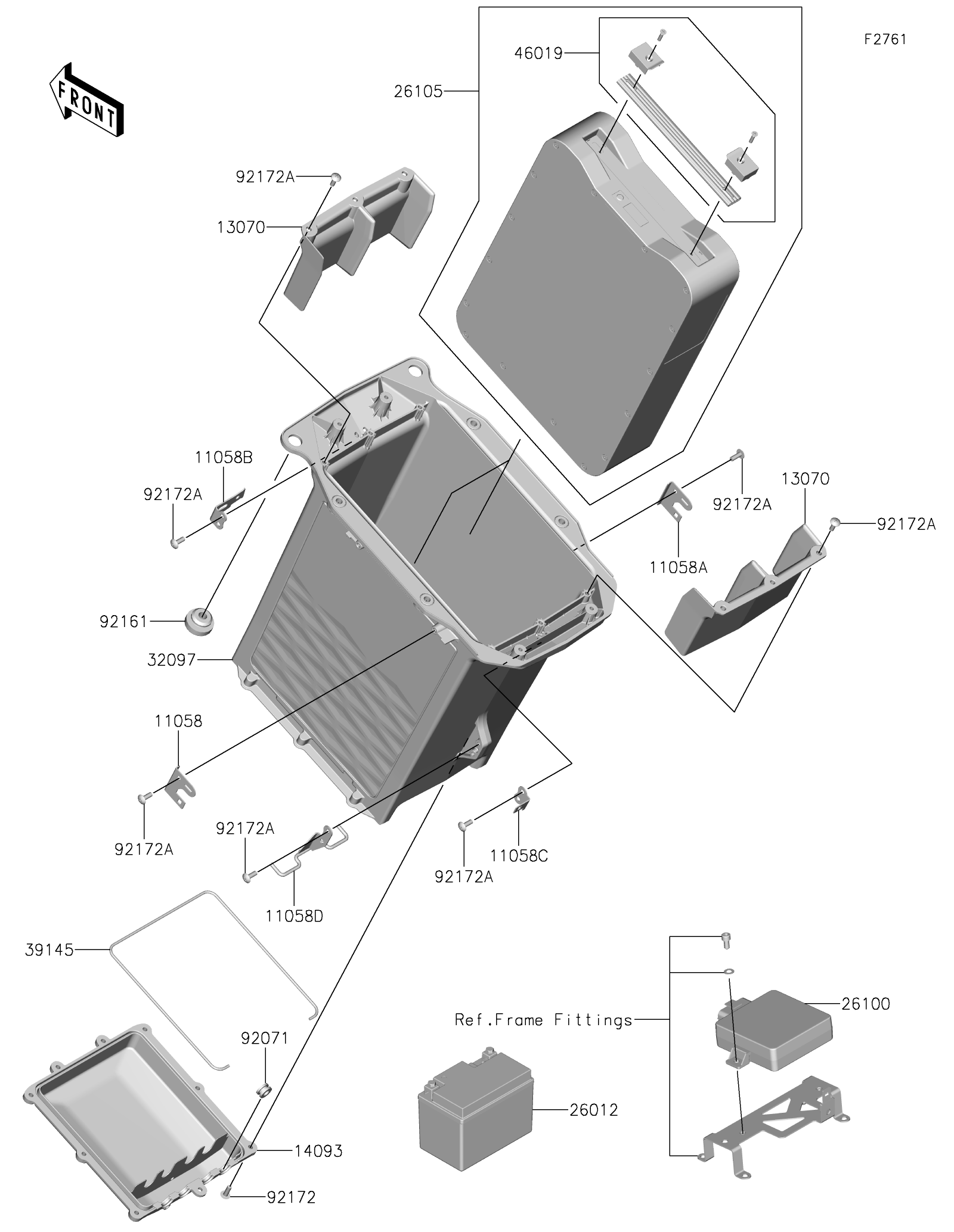

2024 Z e-1 ABS - Battery

DOWNLOAD PDF
SELECT A NEW PART
11058
11058A
11058B
11058C
11058D
13070
13070
14093
26012
26100
26105
32097
39145
46019
92071
92161
92172
92172A
92172A
92172A
92172A
92172A
92172A
92172A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11058 11058-0838 1
BRACKET 11058A 11058-0839 1
BRACKET 11058B 11058-0909 1
BRACKET 11058C 11058-0910 1
BRACKET 11058D 11058-0963 1
GUIDE,BATTERY CASE 13070 13070-1437 2
COVER,BATTERY CASE 14093 14093-1483 1
BATTERY,FTZ3,12V 2.5AH 26012 26012-1457 1
MANAGEMENT-SYSTEM-BATTERY 26100 26100-0001 1
PACK-ASSY-BATTERY 26105 26105-0009 2
CASE-BATTERY 32097 32097-0570 1
TRIM-SEAL,BATTERY CASE 39145 39145-0764 1
GRIP-ASSY,BATTERY 46019 46019-0131 4
GROMMET 92071 92071-1128 4
DAMPER,10X32X17 92161 92161-1980 2
SCREW,TAPPING,5X16 92172 92172-0175 9
SCREW,TAPPING,5X14 92172A 92172-0265 14
