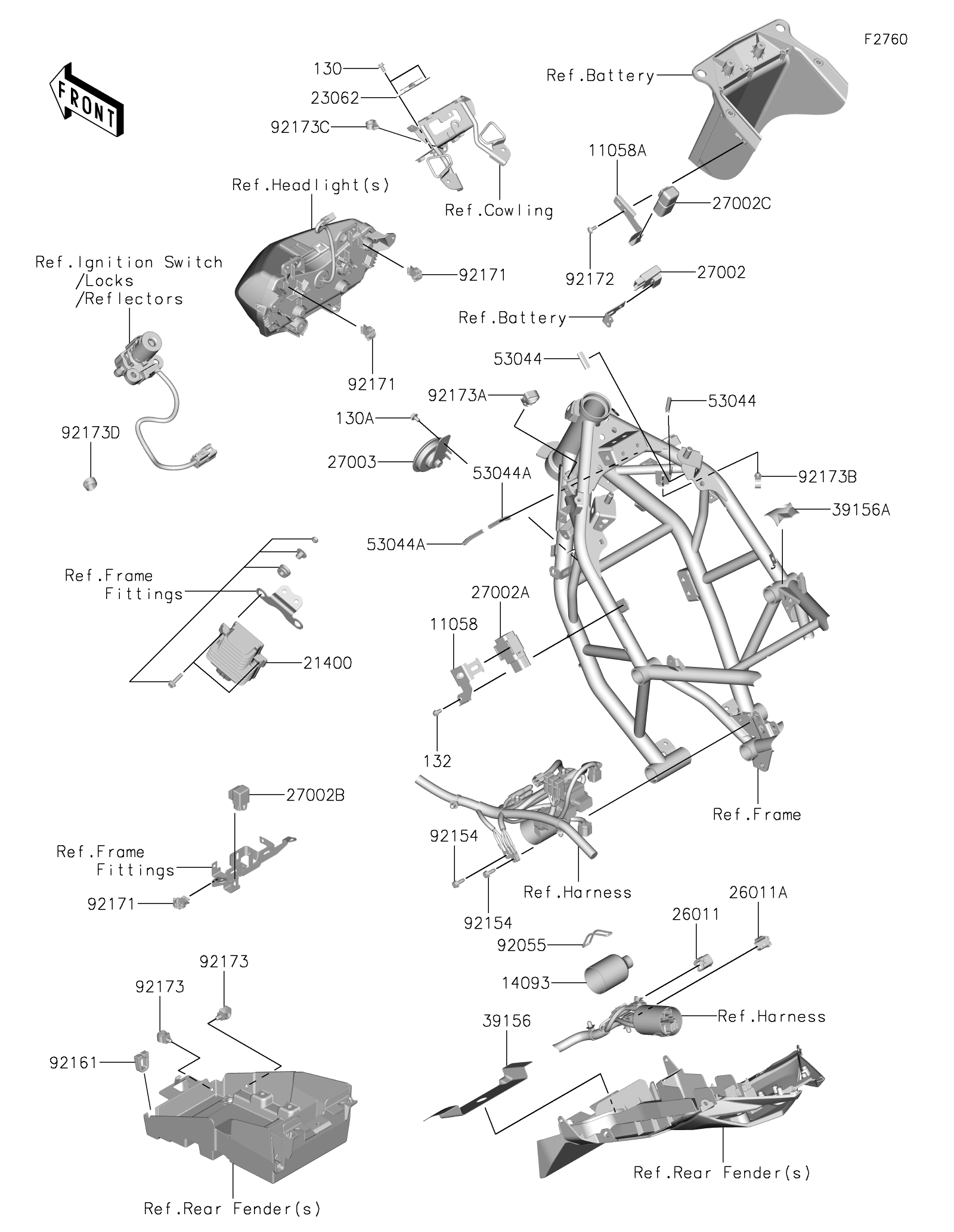

2024 Z e-1 ABS - Chassis Electrical Equipment-1

DOWNLOAD PDF
SELECT A NEW PART
11058
11058A
14093
21400
23062
26011
26011A
27002
27002A
27002B
27002C
27003
39156
39156A
53044
53044
53044A
53044A
92055
92154
92154
92161
92171
92171
92171
92172
92173
92173
92173A
92173B
92173C
92173D
130
130A
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RELAY 11058 11058-0772 1
BRACKET,RELAY 11058A 11058-0967 1
COVER,HARNESS 14093 14093-0720 1
CONVERTER-ELECTRONIC 21400 21400-0001 1
BRACKET-COMP,SIGNAL LAMP 23062 23062-1232 1
WIRE-LEAD,CONNECTOR COVER 26011 26011-0275 1
WIRE-LEAD,DIAG CONNECTOR 26011A 26011-1901 1
RELAY-ASSY,SIGNAL LAMP 27002 27002-0029 1
RELAY-ASSY 27002A 27002-0060 1
RELAY-ASSY 27002B 27002-1062 1
RELAY-ASSY 27002C 27002-1088 1
HORN 27003 27003-0111 1
PAD,60X250X1 39156 39156-2219 1
PAD,50X50X2 39156A 39156-2235 1
TRIM,9X6.5X30 53044 53044-0632 2
TRIM,45MM 53044A 53044-0644 2
RING-O,50MM 92055 92055-0954 1
BOLT,FLANGED,6X18 92154 92154-4008 2
DAMPER,RR FENDER 92161 92161-1984 1
CLAMP,EDGE CLIP 92171 92171-1722 3
SCREW,TAPPING,5X14 92172 92172-0265 1
CLAMP,12MM DIA. 92173 92173-0736 2
CLAMP 92173A 92173-0861 1
CLAMP,HOLDER CLIP 92173B 92173-0868 1
CLAMP 92173C 92173-1951 1
CLAMP 92173D 92173-2199 1
BOLT-FLANGED,5X10 130 130BA0510 2
BOLT-FLANGED,6X10 130A 130BA0610 1
BOLT-FLANGED-SMALL,6X10 132 132BA0610 1
