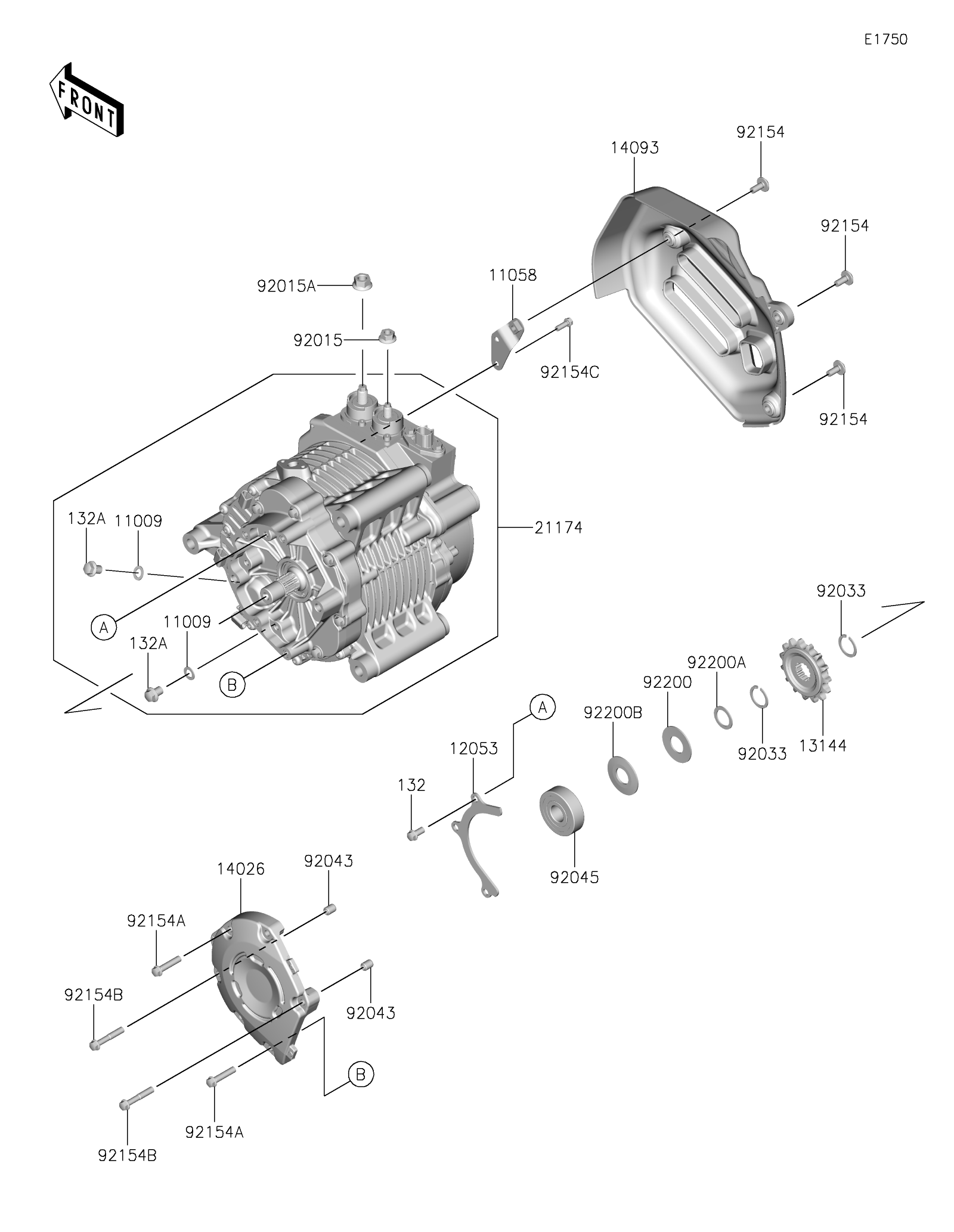

2024 Z e-1 ABS - Electric Motor

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11058
12053
13144
14026
14093
21174
92015
92015A
92033
92033
92043
92043
92045
92154
92154
92154
92154A
92154A
92154B
92154B
92154C
92200
92200A
92200B
132
132A
132A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,8.2X14X1.0 11009 11009-1344 2
BRACKET,MOTOR RH 11058 11058-0779 1
GUIDE-CHAIN 12053 12053-0334 1
SPROCKET-OUTPUT,15T 13144 13144-0583 1
COVER-CHAIN 14026 14026-0160 1
COVER,MOTOR RH 14093 14093-1485 1
MOTOR-ELECTRIC 21174 21174-0028 1
NUT,FLANGED,8MM 92015 92015-1014 1
NUT,10MM 92015A 92015-1021 1
RING-SNAP,18MM 92033 92033-029 2
PIN,DOWEL,8X10 92043 92043-1302 2
BEARING-BALL,17X47X14 92045 92045-0996 1
BOLT,SOCKET,6X14 92154 92154-2735 3
BOLT-FLANGED,6X28 92154A 92154-7115 4
BOLT-FLANGED,6X35 92154B 92154-7173 2
BOLT-FLANGED,5X14 92154C 92154-7197 2
WASHER,DRIVEN GEAR CENTER 92200 92200-2615 1
WASHER,DRIVEN GEAR UNDER 92200A 92200-2616 1
WASHER,DRIVEN GEAR TOP 92200B 92200-2617 1
BOLT-FLANGED-SMALL,6X12 132 132BA0612 3
BOLT-FLANGED-SMALL,8X10 132A 132BB0810 2
