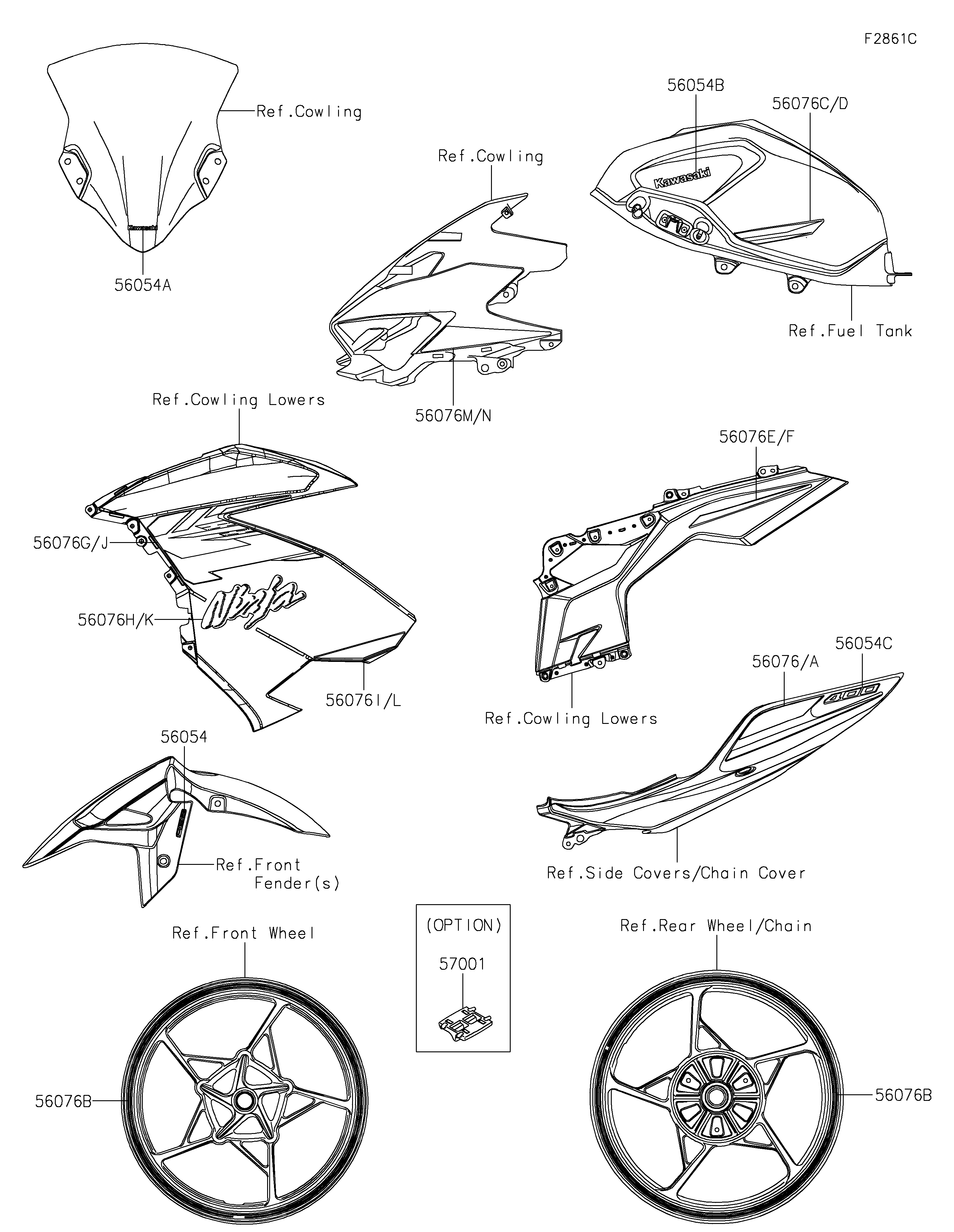

2022 NINJA® 400 ABS KRT EDITION - Decals(Gray)(GNFBN)

DOWNLOAD PDF
SELECT A NEW PART
56054
56054A
56054B
56054C
56076
56076A
56076B
56076B
56076C
56076D
56076E
56076F
56076G
56076H
56076I
56076J
56076K
56076L
56076M
56076N
57001
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,FR FENDER,ABS 56054 56054-1413 2
MARK,WINDSHIELD,KAWASAKI 56054A 56054-2261 1
MARK,FUEL TANK,KAWASAKI 56054B 56054-2558 2
MARK,TAIL COVER,400 56054C 56054-3764 2
PATTERN,TAIL COVER,LH 56076 56076-3826 1
PATTERN,TAIL COVER,RH 56076A 56076-3827 1
PATTERN,WHEEL,GOLD/BLK,4X1353 56076B 56076-3828 4
PATTERN,FUEL TANK,LH 56076C 56076-3829 1
PATTERN,FUEL TANK,RH 56076D 56076-3830 1
PATTERN,SIDE COWL.,LWR,LH 56076E 56076-3831 1
PATTERN,SIDE COWL.,LWR,RH 56076F 56076-3832 1
PATTERN,SIDE COWL.,UPP,LH,UPP 56076G 56076-3833 1
PATTERN,SIDE COWL.,UPP,LH,CNT 56076H 56076-3834 1
PATTERN,SIDE COWL.,UPP,LH,LWR 56076I 56076-3835 1
PATTERN,SIDE COWL.,UPP,RH,UPP 56076J 56076-3836 1
PATTERN,SIDE COWL.,UPP,RH,CNT 56076K 56076-3837 1
PATTERN,SIDE COWL.,UPP,RH,LWR 56076L 56076-3838 1
PATTERN,UPP COWL.,LH 56076M 56076-3846 1
PATTERN,UPP COWL.,RH 56076N 56076-3847 1
RIM STRIPE APPLICATOR 57001 57001-1752 AR (OPTION)
