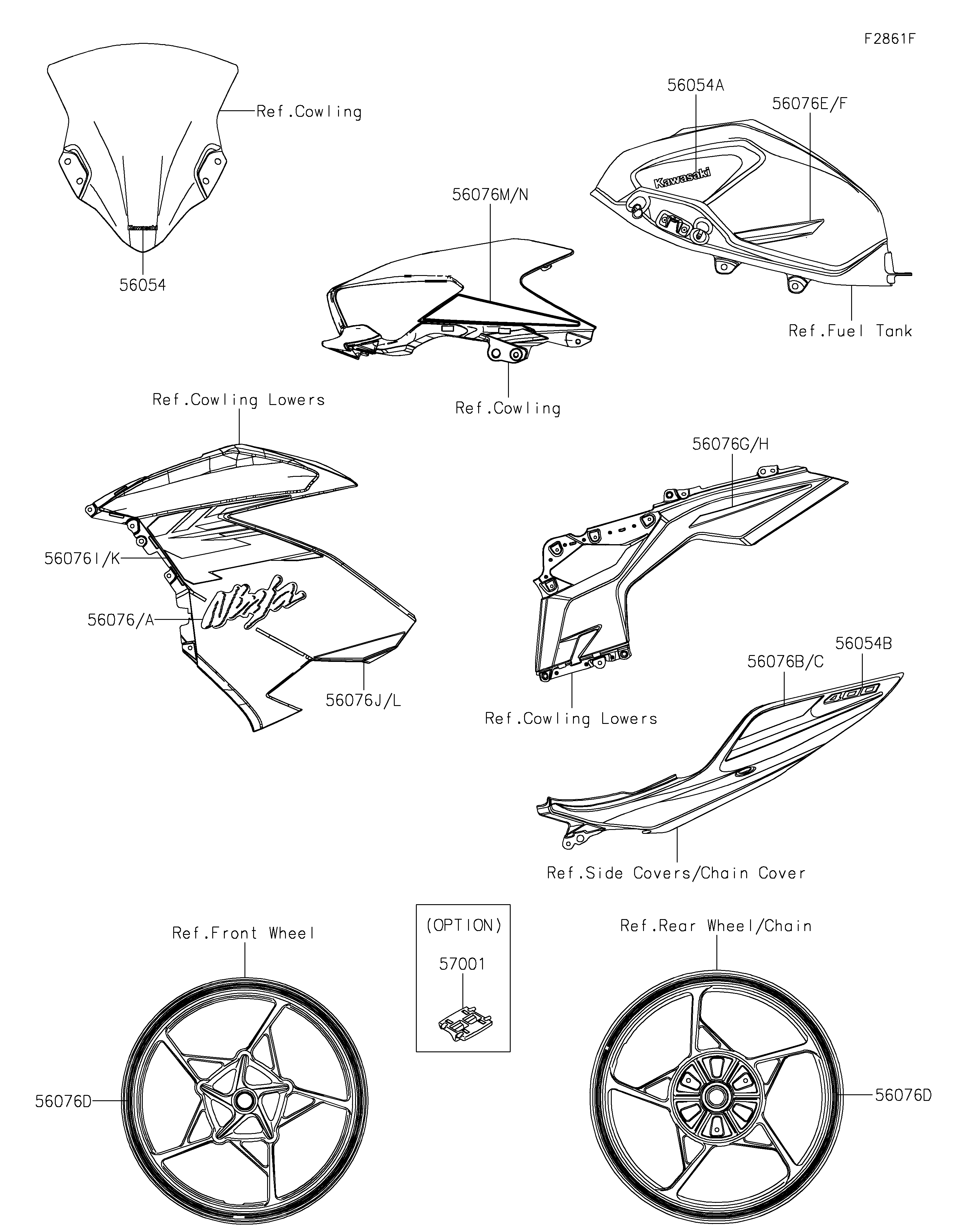

2023 Ninja 400 - Decals(M.M.D.Gray)(HPFBN/HPFBL)

DOWNLOAD PDF
SELECT A NEW PART
56054
56054A
56054B
56076
56076A
56076B
56076C
56076D
56076D
56076E
56076F
56076G
56076H
56076I
56076J
56076K
56076L
56076M
56076N
57001
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,WINDSHIELD,KAWASAKI 56054 56054-2261 1
MARK,FUEL TANK,KAWASAKI 56054A 56054-2558 2
MARK,TAIL COVER,400 56054B 56054-3882 2
PATTERN,SIDE COWL.,UPP,LH,CNT 56076 56076-3834 1
PATTERN,SIDE COWL.,UPP,RH,CNT 56076A 56076-3837 1
PATTERN,TAIL COVER,LH 56076B 56076-7264 1
PATTERN,TAIL COVER,RH 56076C 56076-7265 1
PATTERN,WHEEL,YEL/BLK,4X1353 56076D 56076-7266 4
PATTERN,FUEL TANK,LH 56076E 56076-7267 1
PATTERN,FUEL TANK,RH 56076F 56076-7268 1
PATTERN,SIDE COWL.,LH,LWR 56076G 56076-7269 1
PATTERN,SIDE COWL.,RH,LWR 56076H 56076-7270 1
PATTERN,SIDE COWL.,LH,UPP,UPP 56076I 56076-7271 1
PATTERN,SIDE COWL.,LH,UPP,LWR 56076J 56076-7272 1
PATTERN,SIDE COWL.,RH,UPP,UPP 56076K 56076-7273 1
PATTERN,SIDE COWL.,RH,UPP,LWR 56076L 56076-7274 1
PATTERN,UPP COWLING,LH 56076M 56076-7275 1
PATTERN,UPP COWLING,RH 56076N 56076-7276 1
RIM STRIPE APPLICATOR 57001 57001-1752 AR (OPTION)
