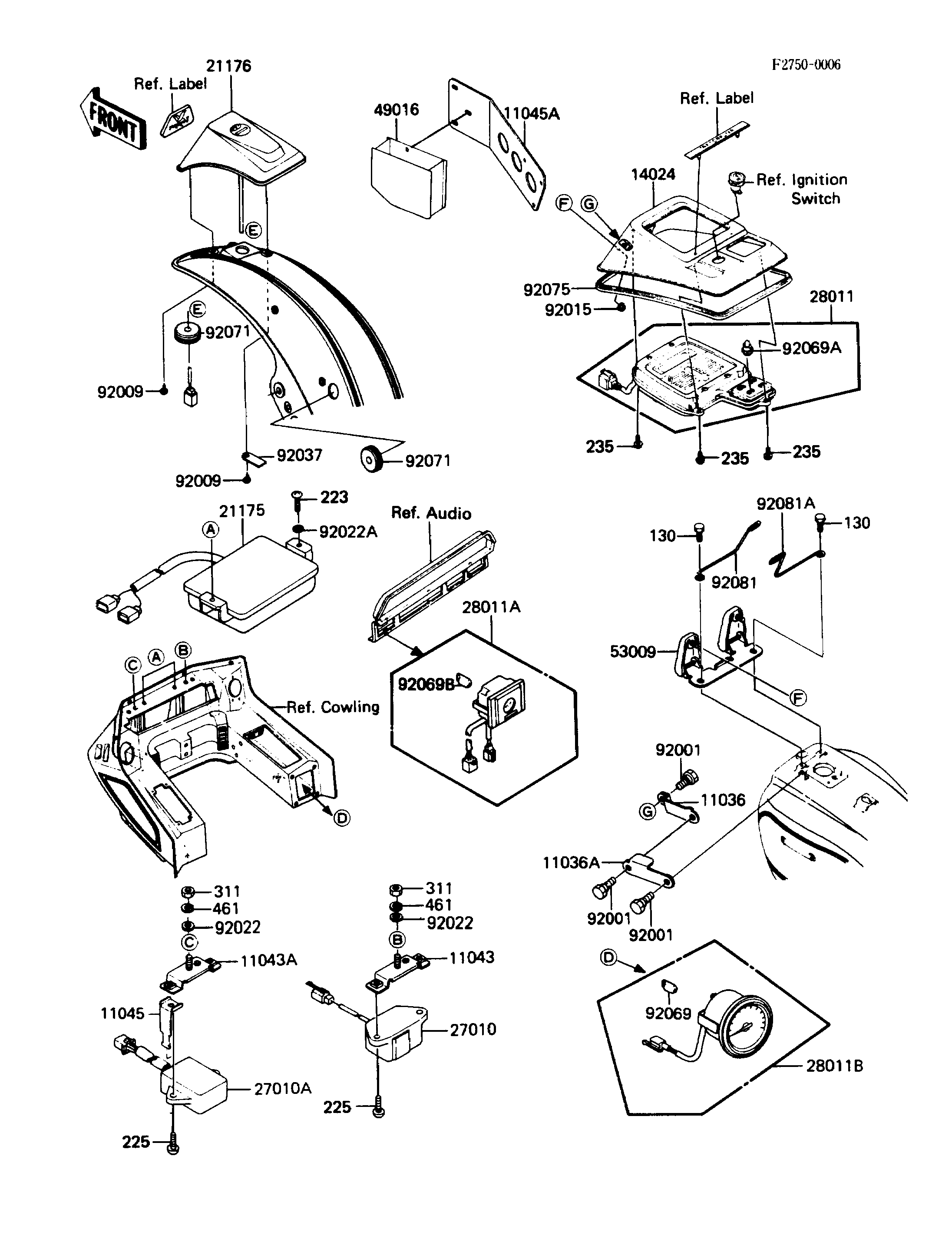

1987 Voyager - Other

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-A,STOPPER 11036 11036-1950 1
BRACKET-A,STOPPER 11036A 11036-1951 1
BRACKET 11043 11043-1253 1
BRACKET 11043A 11043-1254 1
BRACKET,CRUISE RELAY 11045 11045-1984 1
BRACKET,AUTO CRUISE 11045A 11045-1996 1
COVER,DRIVE COMPUTER 14024 14025-1641 1
CONTROL UNIT-ELECTRONIC 21175 21175-1009 1
SENSOR,QUARTER 21176 21176-1005 1
SWITCH,RESERV LIGHTING 27010 27010-1066 1
SWITCH,TURN SIGNAL OPERATION 27010A 27010-1153 1
METER,DRIVE COMPUTER 28011 28011-1037 1
METER,COMPASS 28011A 28011-1038 1
METER,AIR SUSPENSION 28011B 28011-1039 1
COVER-SEAL,AUTO CRUISE 49016 49016-1133 1
HINGE,DRIVE COMPUTER COVER 53009 53009-1037 1
BOLT,STOPPER 92001 92001-1815 3
SCREW,4X16,BLACK 92009 92009-1158 3
NUT,FLANGED,5MM 92015 92015-1259 2
WASHER,6.5X20X1.6,BLACK 92022 92022-1346 2
WASHER,5.2X16X1.2 92022A 92022-263 2
CLAMP,SENSOR LEAD 92037 92037-1490 1
BULB,12V 3.4W 92069 92069-1007 1
BULB,12V 1.4W 92069A 92069-1056 3
BULB,12V 1.7W 92069B 92069-1059 1
GROMMET,SENSOR LEAD 92071 92071-1058 2
DAMPER,COVER 92075 92075-1460 1
SPRING,LH 92081 92081-1546 1
SPRING,RH 92081A 92081-1547 1
BOLT-FLANGED,5X12 130 130B0512 2
SCREW-PAN-WS-CROS,5X20 223 223B0520 2
SCREW-PAN-WSP-CROS 225 225B0620 4
SCREW-PAN-WP-CROS 235 235B0514 4
NUT-HEX,6MM,BLACK 311 311C0600 2
WASHER-SPRING,6MM,BLACK 461 461K0600 2
