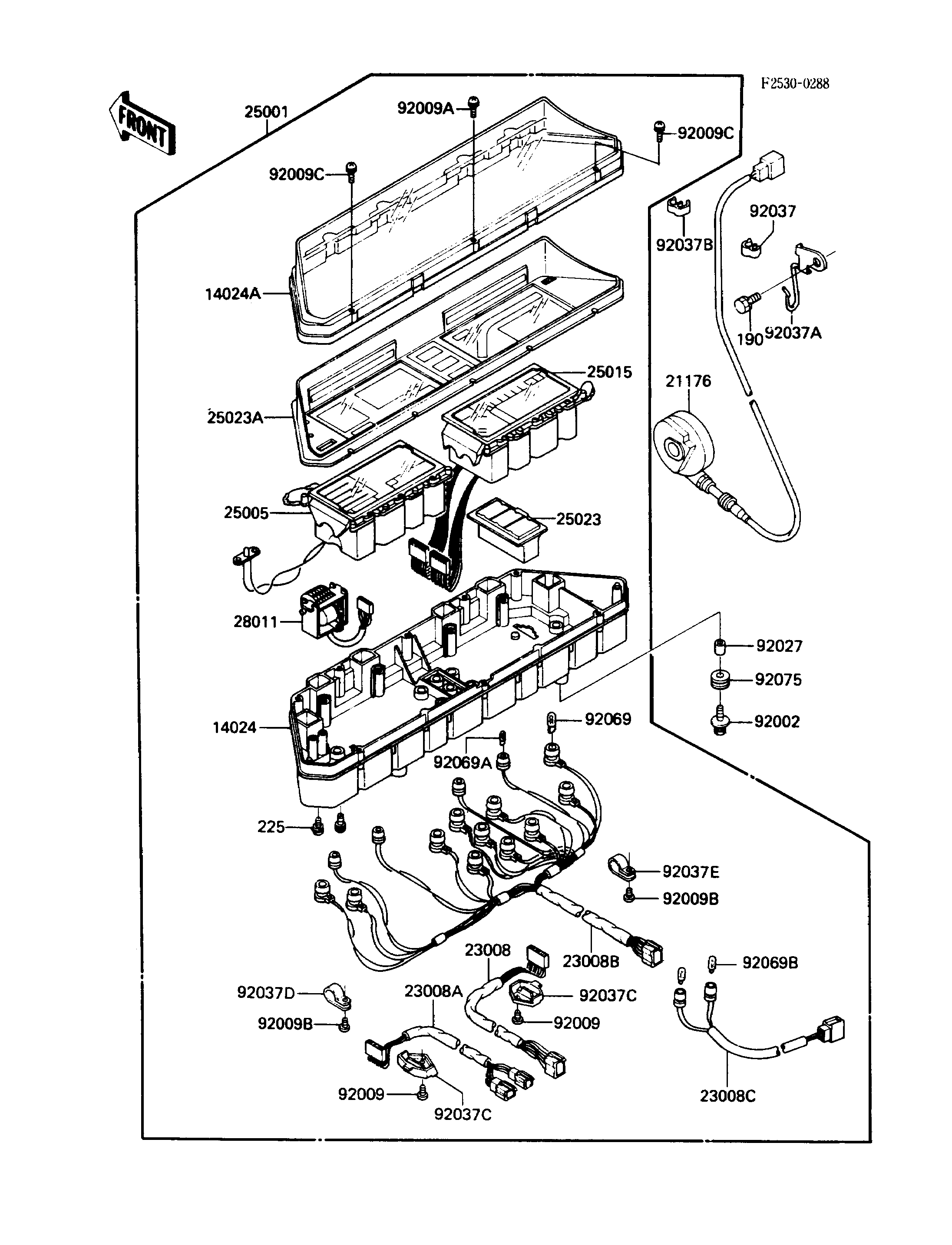

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,METER,LWR | 14024 | 14024-1596 | 1 | ||
| COVER,METER,UPP | 14024A | 14025-1794 | 1 | ||
| SENSOR | 21176 | 21176-1053 | 1 | ||
| SOCKET-ASSY,TACHOMETER | 23008 | 23008-1206 | 1 | ||
| SOCKET-ASSY,SPEEDOMETER | 23008A | 23008-1207 | 1 | ||
| SOCKET-ASSY,PILOT LAMP | 23008B | 23008-1208 | 1 | ||
| SOCKET-ASSY,CRUISE LAMP | 23008C | 23008-1350 | 1 | ||
| METER-ASSY,MPH | 25001 | 25001-1705 | 1 | ||
| SPEEDOMETER,LCD,MPH | 25005 | 25005-1373 | 1 | ||
| TACHOMETER,LCD,(X1000RPM) | 25015 | 25015-1203 | 1 | ||
| COVER-METER CASE,PILOT BOX | 25023 | 25023-1105 | 1 | ||
| COVER-METER CASE | 25023A | 25023-1160 | 1 | ||
| METER,ODOMETER | 28011 | 28011-1055 | 1 | ||
| BOLT,6X25 | 92002 | 92002-1137 | 4 | ||
| SCREW,TAPPING,3X12 | 92009 | 92009-1028 | 2 | ||
| SCREW,TAPPING,3X18 | 92009A | 92009-1280 | 2 | ||
| SCREW,TAPPING,4X14 | 92009B | 92009-1503 | 2 | ||
| SCREW,TAPPING,3X14 | 92009C | 92009-1504 | 6 | ||
| COLLAR,6.8X10X12 | 92027 | 92027-162 | 4 | ||
| CLAMP,HOSE | 92037 | 92037-1249 | 2 | ||
| CLAMP,SENSOR LEAD WIRE | 92037A | 92037-1453 | 1 | ||
| CLAMP,SENSOR LEAD WIRE | 92037B | 92037-1458 | 3 | ||
| CLAMP,METER,SOCKET ASSY | 92037C | 92037-1478 | 2 | ||
| CLAMP,METER,SOCKET ASSY | 92037D | 92037-1479 | 1 | ||
| CLAMP,CABLE & HARNESS | 92037E | 92037-1616 | 1 | ||
| BULB,12V 3.4W | 92069 | 92069-1007 | 11 | ||
| BULB,12V1.4W T-5 | 92069A | 92069-1051 | 4 | ||
| BULB,12V 3W | 92069B | 92069-1068 | 2 | ||
| DAMPER | 92075 | 92075-209 | 4 | ||
| BOLT-UPSET-WS,10X14 | 190 | 190C1014 | 1 | ||
| SCREW-PAN-WSP-CROS | 225 | 225B0410 | 2 |
