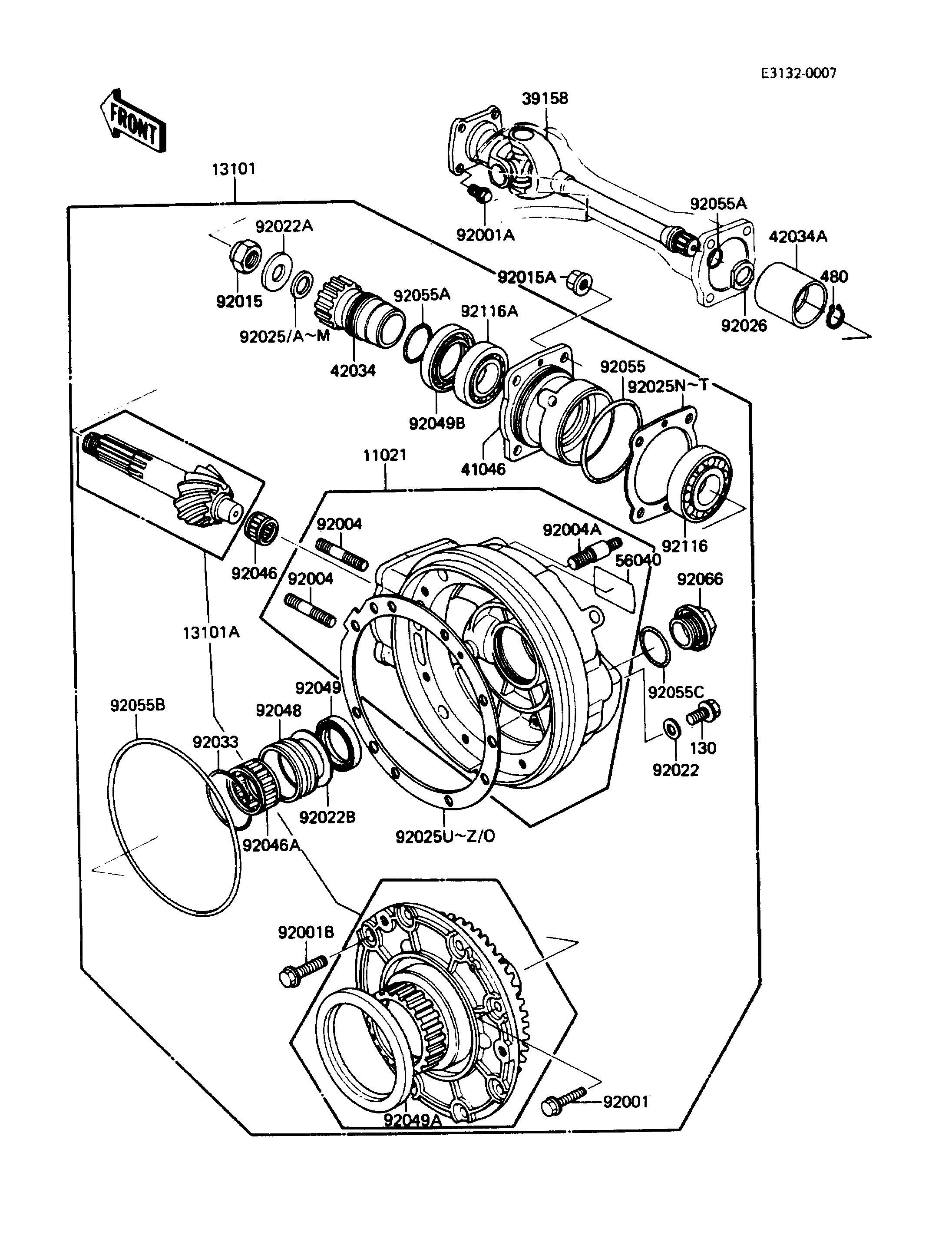

1987 Voyager - Drive Shaft/Final Gear

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-ASSY,FINAL GEAR,NO.2 GOLD 11021 11021-1019-F6 1
GEAR-ASSY,FINAL NO.2 GOLD 13101 13101-1033-F6 1
GEAR-ASSY,BEVEL,RR 13101A 13101-5041 1
SHAFT-ASSY-DRIVE 39158 39158-1008 1
HOUSING-BEARING,FINAL 41046 41046-1020 1
COUPLING,PROPELLER SHAFT,INNER 42034 42034-1023 1
COUPLING,PROPELLER SHAFT,OUTER 42034A 42034-1037 1
LABEL-WARNING,OIL 56040 56040-1047 1
BOLT,FLANGED,8X28 92001 92001-1095 7
BOLT,FLANGED,12X15 92001A 92001-1139 4
BOLT,FLANGED,10X23 92001B 92001-1778 1
STUD,10X31.5 92004 92004-1021 4
STUD,RR SHOCKABSORBER 92004A 92004-1047 1
NUT,16MM 92015 92015-1059 1
NUT,FLANGED,10MM 92015A 92015-1415 4
WASHER,8.2X16X1 92022 92022-1086 1
WASHER,16X32X3.2 92022A 92022-1105 1
WASHER,39X49.5X1 92022B 92022-1294 1
SHIM,T=1.30 92025 92025-1214 AR
SHIM,T=1.32 92025A 92025-1215 AR
SHIM,T=1.34 92025B 92025-1216 AR
SHIM,T=1.36 92025C 92025-1217 AR
SHIM,T=1.38 92025D 92025-1218 AR
SHIM,T=0.10 92025E 92025-1219 AR
SHIM,T=0.20 92025F 92025-1220 AR
SHIM,T=0.30 92025G 92025-1221 AR
SHIM,T=0.50 92025H 92025-1222 AR
SHIM,T=0.60 92025I 92025-1223 AR
SHIM,T=0.70 92025J 92025-1224 AR
SHIM,T=0.80 92025K 92025-1225 AR
SHIM,T=0.90 92025L 92025-1226 AR
SHIM,T=1.00 92025M 92025-1227 AR
SHIM,T=0.10 92025N 92025-1388 AR
SHIM,T=0.15 92025O 92025-1389 AR
SHIM,T=0.20 92025P 92025-1390 AR
SHIM,T=0.30 92025Q 92025-1391 AR
SHIM,T=0.60 92025R 92025-1392 AR
SHIM,T=0.90 92025S 92025-1393 AR
SHIM,T=1.20 92025T 92025-1394 AR
SHIM,T=0.10 92025U 92025-1625 AR
SHIM,T=0.15 92025V 92025-1626 AR
SHIM,T=0.20 92025W 92025-1627 AR
SHIM,T=0.30 92025X 92025-1628 AR
SHIM,T=0.60 92025Y 92025-1629 AR
SHIM,T=0.90 92025Z 92025-1630 AR
SHIM,T=1.20 920250 92025-1631 AR
SPACER,PROPELLER SHAFT 92026 92026-1085 1
RING-SNAP,52MM 92033 92033-1074 1
BEARING-NEEDLE,K18X25X17 92046 92046-1056 1
BEARING-NEEDLE,KTV384620E01 C3 92046A 92046-1057 1
RACE,ORT465021E01 92048 92048-1019 1
SEAL-OIL,S-35477HS 92049 92049-1025 1
SEAL-OIL,S-901159HS 92049A 92049-1026 1
SEAL-OIL,SC32558 92049B 92049-1082 1
RING-O,67MM 92055 92055-1032 1
RING-O,ID=32.7 92055A 92055-1037 2
RING-O,154MM 92055B 92055-1165 1
RING-O,35.8MM 92055C 92055-1281 1
PLUG,36MM,NO.2 GOLD 92066 92066-1006-F6 1
BEARING-ROLLER,4T30305C 92116 92116-1002 1
BEARING-ROLLER,4T30205 92116A 92116-1003 1
BOLT-FLANGED,8X12 130 130B0812 1
CIRCLIP-TYPE-C,26MM 480 480J2600 1
