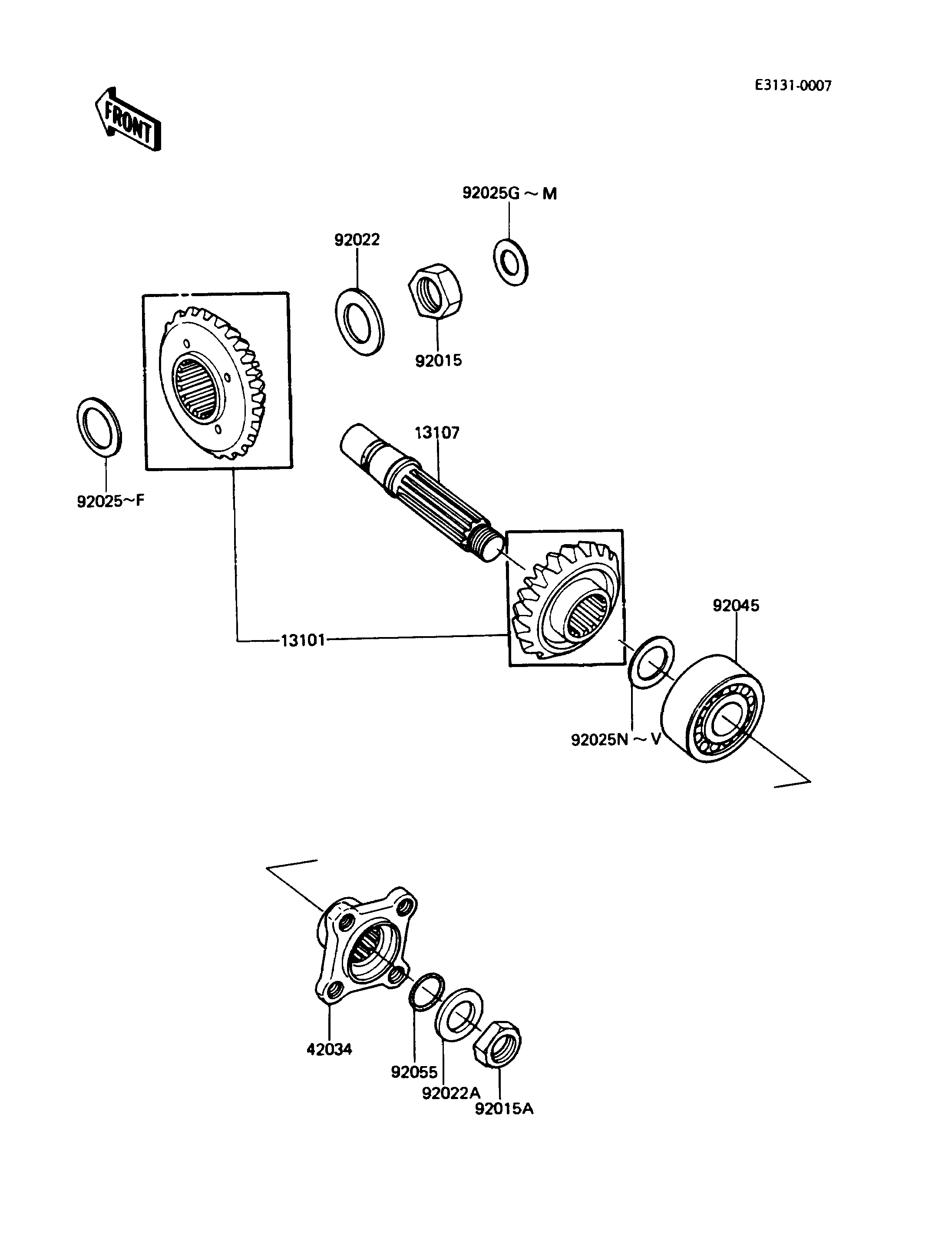

1987 Voyager - Front Bevel Gear

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GEAR-ASSY,BEVEL,FR 13101 13101-5042 1
SHAFT,BEVEL GEAR 13107 13107-1029 1
COUPLING,OUTPUT SHAFT 42034 42034-1010 1
NUT,24MM 92015 92015-1057 1
NUT,20MM 92015A 92016-028 1
WASHER,SPRING,24MM 92022 92022-1104 1
WASHER,20.3X36X2.3 92022A 92022-1116 1
SHIM,30.3X40X0.6 92025 92025-1006 AR
SHIM,30.3X40X0.9 92025A 92025-1007 AR
SHIM,30.3X40X1.20 92025B 92025-1008 AR
SHIM,30.3X40X0.1 92025C 92025-1009 AR
SHIM,30.3X40X0.15 92025D 92025-1010 AR
SHIM,30.3X40X0.20 92025E 92025-1011 AR
SHIM,30.3X40X0.30 92025F 92025-1012 AR
SHIM,15.3X27.5X0.60 92025G 92025-1020 AR
SHIM,15.3X27.5X0.90 92025H 92025-1021 AR
SHIM,15.3X27.5X1.20 92025I 92025-1022 AR
SHIM,15.3X27.5X0.10 92025J 92025-1023 AR
SHIM,15.3X27.5X0.15 92025K 92025-1024 AR
SHIM,15.3X27.5X0.20 92025L 92025-1025 AR
SHIM,15.3X27.5X0.30 92025M 92025-1026 AR
SHIM,25.3X36X0.15 92025N 92025-1688 AR
SHIM,25.3X36X0.50 92025O 92025-1689 AR
SHIM,25.3X36X0.60 92025P 92025-1690 AR
SHIM,25.3X36X0.70 92025Q 92025-1691 AR
SHIM,25.3X36X0.80 92025R 92025-1692 AR
SHIM,25.3X36X0.90 92025S 92025-1693 AR
SHIM,25.3X36X1.00 92025T 92025-1694 AR
SHIM,25.3X36X1.10 92025U 92025-1695 AR
SHIM,25.3X36X1.20 92025V 92025-1696 AR
BEARING-BALL,5305SH2CD2 92045 92045-1147 1
RING-O,20.5MM 92055 92055-1029 1
