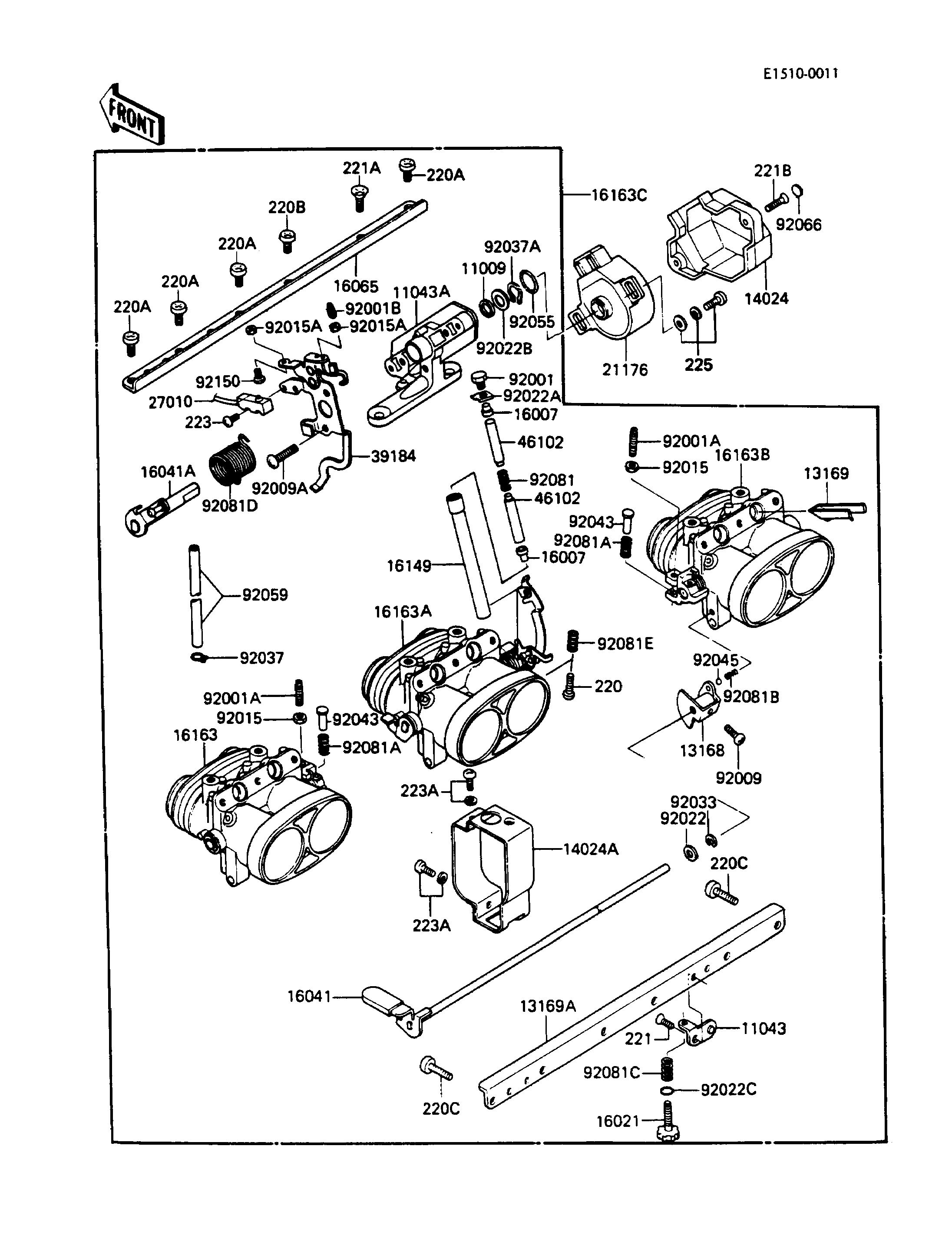

1987 Voyager - Throttle

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,8MM 11009 16038-020 1
BRACKET-B,IDLE ADJUST SCREW 11043 11043-1370 1
BRACKET,THROTTLE SENSOR 11043A 11043-1494 1
LEVER,FAST IDLE 13168 13168-1210 1
PLATE 13169 13169-1744 6
PLATE,THROTTLE STAY,LWR 13169A 13169-1745 1
COVER,SENSOR 14024 14025-1657 1
COVER,TUBE 14024A 14025-1798 1
SEAT-SPRING 16007 16057-002 2
SCREW-THROTTLE STOP 16021 16021-1066 1
SHAFT-CARBURETOR,FAST IDLE 16041 16041-1052 1
SHAFT-CARBURETOR,SENSOR 16041A 16041-1053 1
HOLDER-CARBURETOR,STAY,UPP 16065 16065-1107 1
BAR,CARBURETOR 16149 16149-1052 1
THROTTLE-ASSY,#1 16163 16163-1032 1
THROTTLE-ASSY,#2 16163A 16163-1033 1
THROTTLE-ASSY,#3 16163B 16163-1034 1
THROTTLE-ASSY 16163C 16163-1083 1
SENSOR,THROTTLE 21176 21176-1004 1
SWITCH,CRUISE CANSEL 27010 27010-1242 1
BRACKET-ASSY,THROTTLE 39184 39184-1069 1
ROD,THROTTLE 46102 46102-1106 2
BOLT,A 92001 16067-003 1
BOLT,ADJUSTING 92001A 92001-1447 2
BOLT,THROTTLE BRACKET 92001B 92001-1909 1
SCREW,PAN HEAD,5X7 92009 16046-007 1
SCREW,5X12 92009A 92009-1318 1
NUT,THROTTLE VALVE ADJUSTING 92015 92015-1119 2
NUT,THROTTLE BRACKET 92015A 92015-1348 2
WASHER,PLAIN,NYLON 92022 16039-019 1
WASHER,LOCK 92022A 16054-003 1
WASHER,THROTTLE SENSOR 92022B 92022-1492 1
WASHER,THROTTLE STOP SCREW 92022C 92022-1608 1
RING-SNAP,E-TYPE 92033 92033-1066 1
CLAMP,TUBE 92037 92037-1124 1
CLAMP 92037A 92037-1196 1
PIN,THROTTLE VALVE ADJUST 92043 92043-1079 2
BALL-STEEL,1/8" 92045 92045-1044 1
RING-O,THROTTLE SENSOR 92055 92055-1226 1
TUBE,3X7X125 92059 92059-1382 1
PLUG 92066 92066-1122 2
SPRING 92081 16040-026 1
SPRING,THROTTLE VALVE ADJUST 92081A 92081-1259 2
SPRING,SHAFT STOP 92081B 92081-1260 1
SPRING,THROTTLE STOP SCREW 92081C 92081-1377 1
SPRING,THROTTLE SENSOR RETURN 92081D 92081-1634 1
SPRING,FAST IDLE ADJUST SCREW 92081E 92081-1635 1
BOLT,CRUISE SWITCH 92150 92150-1041 1
SCREW-PAN-CROS,4X18 220 220B0418 1
SCREW-PAN-CROS,6X10 220A 220B0610 4
SCREW-PAN-CROS,6X16 220B 220B0616 1
SCREW-PAN-CROS,6X18 220C 220B0618 6
SCREW-CSK-CROS 221 221B0508 1
SCREW-CSK-CROS,6X16 221A 221B0616 1
SCREW-CSK-CROS,4X14 221B 221C0414 2
SCREW-PAN-WS-CROS 223 223B0414 2
SCREW-PAN-WS-CROS 223A 223B0508 2
SCREW-PAN-WSP-CROS 225 225B0510 2
