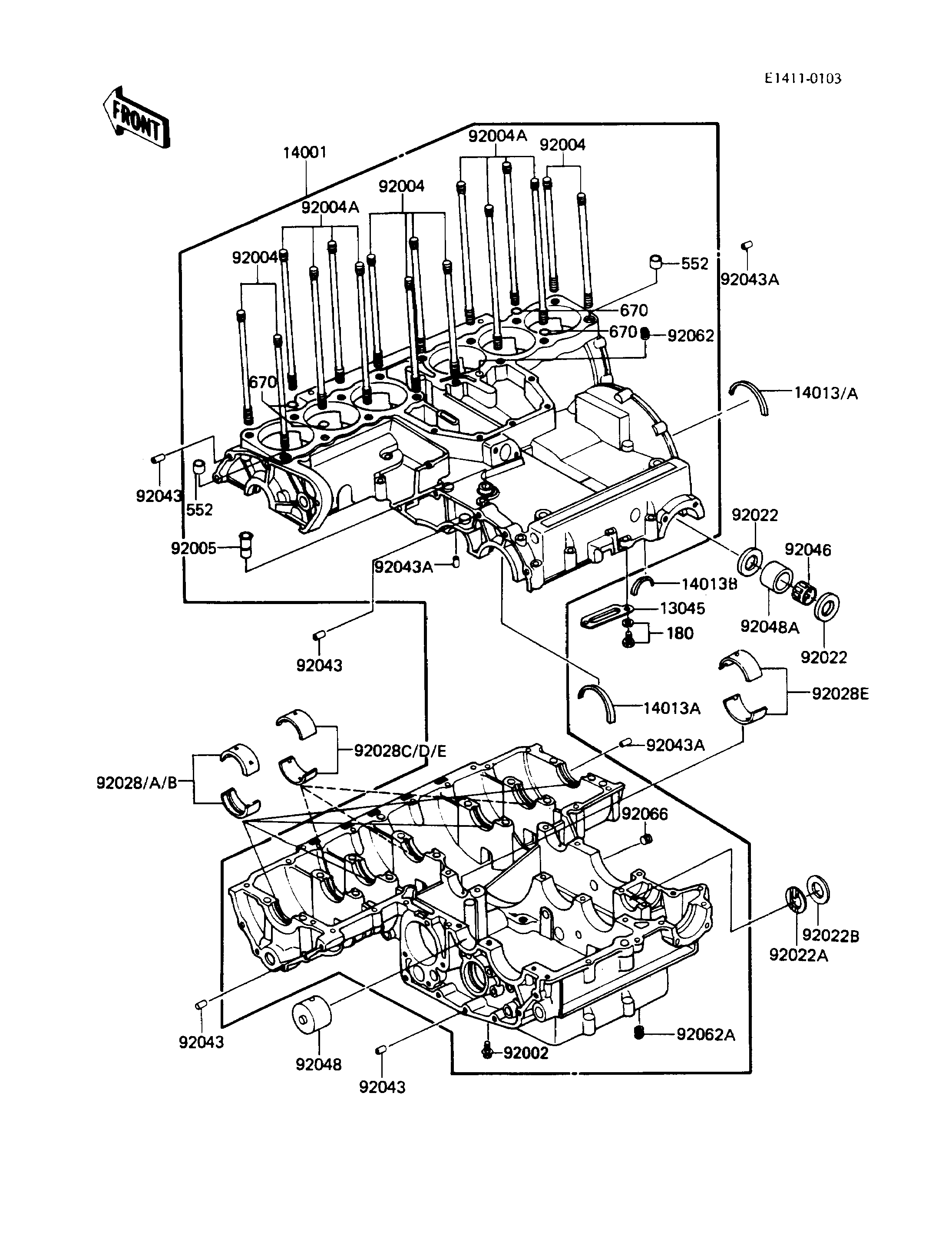

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| RECEIVER-OIL | 13045 | 13045-1002 | 1 | ||
| SET-CRANKCASE | 14001 | 14001-5153 | 1 | ||
| RING-POSITION,T=1.90 | 14013 | 14013-013 | AR | ||
| RING-POSITION,T=1.98 | 14013A | 14013-1004 | AR | ||
| RING-POSITION | 14013B | 14013-1007 | 1 | ||
| BOLT,8X95 | 92002 | 92002-1077 | 1 | ||
| STUD,10X153 | 92004 | 92004-062 | 8 | ||
| STUD,10X195 | 92004A | 92004-1019 | 8 | ||
| FITTING,BREATHER | 92005 | 14067-006 | 1 | ||
| WASHER,THRUST,20.5MM | 92022 | 92022-1280 | 2 | ||
| WASHER,T=2.2 | 92022A | 92022-1388 | 1 | ||
| WASHER,15X28X2.3 | 92022B | 92022-1389 | 1 | ||
| BUSHING,MAIN JOURNAL,BLUE | 92028 | 92028-1103 | AR | ||
| BUSHING,MAIN JOURNAL,BLACK | 92028A | 92028-1104 | AR | ||
| BUSHING,MAIN JOURNAL,BROWN | 92028B | 92028-1105 | AR | ||
| BUSHING,MAIN JOURNAL,BLUE | 92028C | 92028-1106 | AR | ||
| BUSHING,MAIN JOURNAL,BLACK | 92028D | 92028-1107 | AR | ||
| BUSHING,MAIN JOURNAL,BROWN | 92028E | 92028-1108 | AR | ||
| PIN,DOWEL,6.3X8X14 | 92043 | 92042-007 | 4 | ||
| PIN,DOWEL,6X16 | 92043A | 92042-016 | 3 | ||
| BEARING-NEEDLE,TK202814E01 | 92046 | 92046-1042 | 1 | ||
| RACE,DRIVE SHAFT,LH | 92048 | 92048-1008 | 1 | ||
| RACE | 92048A | 92048-1018 | 1 | ||
| NOZZLE,BLACK | 92062 | 92062-011 | 1 | ||
| NOZZLE,SILVER | 92062A | 92062-015 | 1 | ||
| PLUG,OIL LINE,1/8X7 | 92066 | 92066-059 | 1 | ||
| BOLT-UPSET-WS | 180 | 180B0616 | 2 | ||
| PIN-DOWEL,6.5X10X12 | 552 | 552B1012 | 2 | ||
| O RING,12MM | 670 | 670B2012 | 4 |
| RECEIVER-OIL | |
| REF # | 13045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SET-CRANKCASE | |
| REF # | 14001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-POSITION,T=1.90 | |
| REF # | 14013 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| RING-POSITION,T=1.98 | |
| REF # | 14013A |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| RING-POSITION | |
| REF # | 14013B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,8X95 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STUD,10X153 | |
| REF # | 92004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| STUD,10X195 | |
| REF # | 92004A |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| FITTING,BREATHER | |
| REF # | 92005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,THRUST,20.5MM | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,T=2.2 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,15X28X2.3 | |
| REF # | 92022B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING,MAIN JOURNAL,BLUE | |
| REF # | 92028 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,MAIN JOURNAL,BLACK | |
| REF # | 92028A |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,MAIN JOURNAL,BROWN | |
| REF # | 92028B |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,MAIN JOURNAL,BLUE | |
| REF # | 92028C |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,MAIN JOURNAL,BLACK | |
| REF # | 92028D |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,MAIN JOURNAL,BROWN | |
| REF # | 92028E |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| PIN,DOWEL,6.3X8X14 | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PIN,DOWEL,6X16 | |
| REF # | 92043A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,TK202814E01 | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RACE,DRIVE SHAFT,LH | |
| REF # | 92048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RACE | |
| REF # | 92048A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NOZZLE,BLACK | |
| REF # | 92062 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NOZZLE,SILVER | |
| REF # | 92062A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG,OIL LINE,1/8X7 | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET-WS | |
| REF # | 180 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN-DOWEL,6.5X10X12 | |
| REF # | 552 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| O RING,12MM | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
