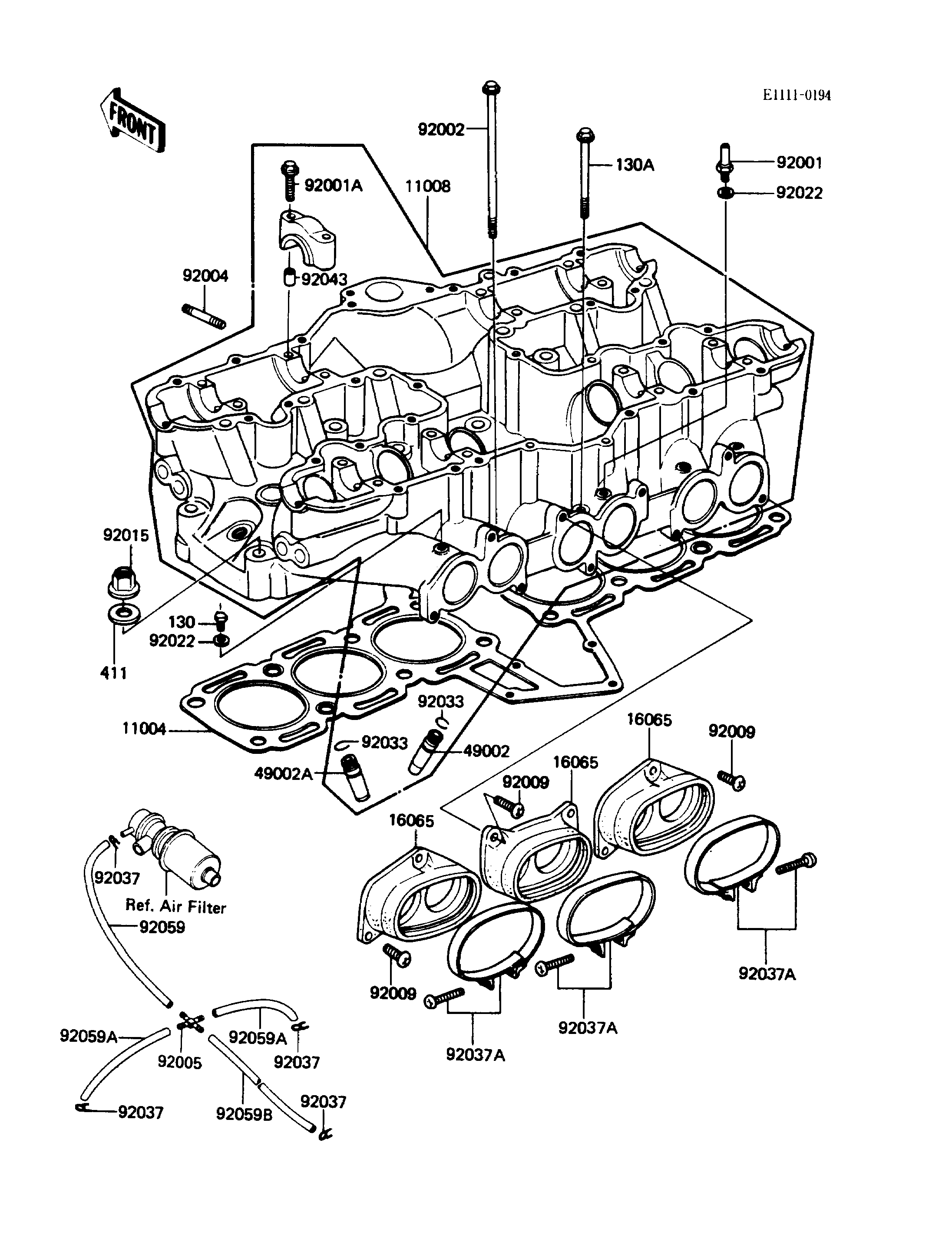

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET-HEAD,CYLINDER | 11004 | 11004-1014 | 1 | ||
| HEAD-COMP-CYLINDER | 11008 | 11008-1072 | 1 | ||
| HOLDER-CARBURETOR | 16065 | 16065-1016 | 3 | ||
| GUIDE-VALVE,INTAKE | 49002 | 12013-009 | AR | ||
| GUIDE-VALVE,EXHAUST | 49002A | 49002-1002 | AR | ||
| BOLT,VACUUM | 92001 | 92001-1143 | 3 | CA | |
| BOLT,VACUUM | 92001 | 92001-1143 | 2 | US | |
| BOLT,FLANGED,6X45 | 92001A | 92003-092 | 16 | ||
| BOLT,6X161 | 92002 | 92002-1273 | 1 | ||
| STUD,6X30 | 92004 | 92004-1128 | 12 | ||
| FITTING,TUBE,X-TYPE | 92005 | 92005-1051 | 1 | ||
| SCREW,6X16 | 92009 | 92009-1334 | 9 | ||
| NUT,FLANGED CAP,10MM | 92015 | 92015-076 | 16 | ||
| WASHER,6.1X12X1 | 92022 | 92022-077 | 6 | ||
| RING-SNAP | 92033 | 92036-023 | 12 | ||
| CLAMP,TUBE | 92037 | 92037-072 | 4 | ||
| CLAMP,CARBURETOR HOLDER | 92037A | 92037-1119 | 3 | ||
| PIN,DOWEL,6.3X8X14 | 92043 | 92042-007 | 16 | ||
| TUBE,4X9X190 | 92059 | 92059-1032 | 1 | ||
| TUBE,4X9X100 | 92059A | 92059-1058 | 2 | ||
| TUBE,4X9X340 | 92059B | 92059-1262 | 1 | ||
| BOLT-FLANGED,6X8 | 130 | 130N0608 | 3 | CA | |
| BOLT-FLANGED,6X8 | 130 | 130N0608 | 4 | US | |
| BOLT-FLANGED | 130A | 130Y0665 | 3 | ||
| WASHER-PLAIN,10MM | 411 | 411B1000 | 16 |
