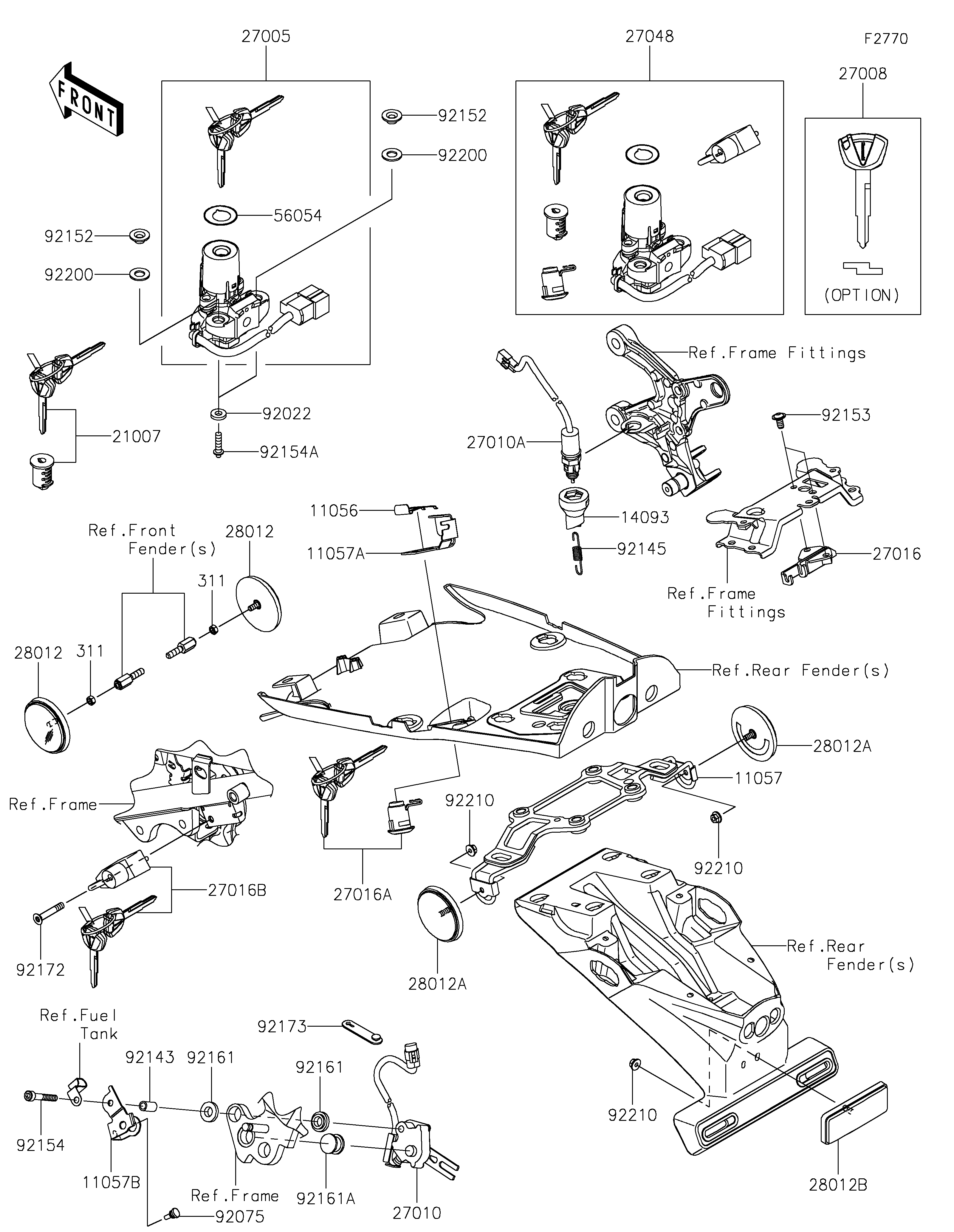

2023 Z900RS - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
11056
11057
11057A
11057B
14093
21007
27005
27008
27010
27010A
27016
27016A
27016B
27048
28012
28012
28012A
28012A
28012B
56054
92022
92075
92143
92145
92152
92152
92153
92154
92154A
92161
92161
92161A
92172
92173
92200
92200
92210
92210
92210
311
311
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,CLASP 11056 11056-0238 1
BRACKET,RR REFLECTOR 11057 11057-0878 1
BRACKET,SEAT LOCK CABLE 11057A 11057-1556 1
BRACKET,STAND SW. 11057B 11057-7166 1
COVER,BRAKE SW. 14093 14093-0666 1
ROTOR,LOCK,TANK CAP 21007 21007-5068 1
SWITCH-ASSY-IGNITION 27005 27005-0646 1
KEY-LOCK,BLANK,IMMOBI 27008 27008-0558 1 (OPTION)
SWITCH,SIDE STAND 27010 27010-0112 1
SWITCH,RR BRAKE 27010A 27010-0867 1
LOCK-ASSY,SEAT STRIKER 27016 27016-1115 1
LOCK-ASSY,SEAT 27016A 27016-5373 1
LOCK-ASSY,HELMET 27016B 27016-5402 1
SWITCH-ASSY 27048 27048-5159 1
REFLECTOR-REFLEX,FR,SIDE 28012 28012-0001 2
REFLECTOR-REFLEX 28012A 28012-0002 2
REFLECTOR-REFLEX 28012B 28012-1077 1
MARK,IGNITION 56054 56054-1596 1
WASHER,7X15.5X3 92022 92022-312 2
DAMPER,6X10X15 92075 92075-1808 1
COLLAR,6.5X9.5X17 92143 92143-1408 1
SPRING,REAR BRAKE 92145 92145-0946 1
COLLAR 92152 92152-0423 2
BOLT,SOCKET,6X12 92153 92153-1617 2
BOLT,SOCKET,6X40 92154 92154-0505 1
BOLT,TORX,6X22 92154A 92154-1858 2
DAMPER 92161 92161-0117 2
DAMPER 92161A 92161-0118 1
SCREW,HEXLOBE,6X35 92172 92172-0835 1
CLAMP,RUBBER PLATE 92173 92173-1229 1
WASHER,10.2X20X1.6 92200 92200-0328 2
NUT,FLANGED,5MM 92210 92210-0007 3
NUT-HEX,5MM 311 311AB0500 2
