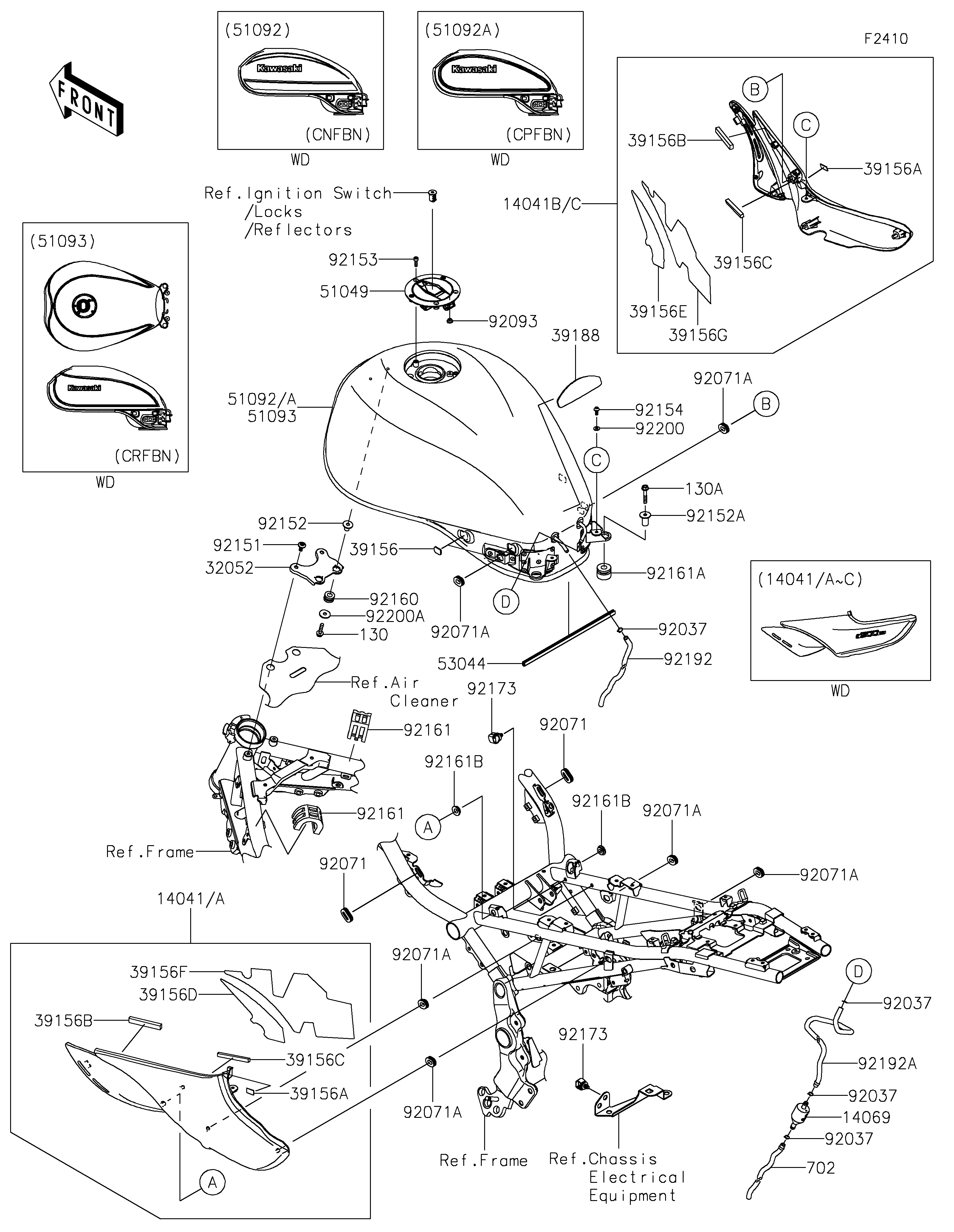

2023 Z900RS - Fuel Tank(CN)

DOWNLOAD PDF
SELECT A NEW PART
14041
14041
14041
14041B
14041B
14041B
14069
14069
14069
32052
32052
32052
39156
39156
39156
39156A
39156A
39156A
39156A
39156A
39156A
39156B
39156B
39156B
39156B
39156B
39156B
39156C
39156C
39156C
39156C
39156C
39156C
39156D
39156D
39156D
39156E
39156E
39156E
39156F
39156F
39156F
39156G
39156G
39156G
39188
39188
39188
51049
51049
51049
51093
51093
51093
53044
53044
53044
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92071
92071
92071
92071
92071
92071
92071A
92071A
92071A
92071A
92071A
92071A
92071A
92071A
92071A
92071A
92071A
92071A
92071A
92071A
92071A
92071A
92071A
92071A
92093
92093
92093
92151
92151
92151
92152
92152
92152
92152A
92152A
92152A
92153
92153
92153
92154
92154
92154
92160
92160
92160
92161
92161
92161
92161
92161
92161
92161A
92161A
92161A
92161B
92161B
92161B
92161B
92161B
92161B
92173
92173
92173
92173
92173
92173
92192
92192
92192
92192A
92192A
92192A
92200
92200
92200
92200A
92200A
92200A
130
130
130
130A
130A
130A
702
702
702
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,LH,M.D.BLACK 14041 14041-5101-17K 1 _________________________________________CN
COVER-SIDE,RH,M.D.BLACK 14041B 14041-5102-17K 1 _________________________________________CN
BREATHER,TANK 14069 14069-0008 1 _________________________________________CN
BRACKET-TANK 32052 32052-0792 1 _________________________________________CN
PAD,13X18X2 39156 39156-2204 4 _________________________________________CN
PAD,10X20X1 39156A 39156-2241 2 _________________________________________CN
PAD,7X70X10 39156B 39156-2268 2 _________________________________________CN
PAD,7X70X7 39156C 39156-2269 2 _________________________________________CN
PAD,72X188X0.3,COVER LH 39156D 39156-2273 1 _________________________________________CN
PAD,72X188X0.3,COVER RH 39156E 39156-2274 1 _________________________________________CN
PAD,137X328X0.45,COVER LH 39156F 39156-2275 1 _________________________________________CN
PAD,137X328X0.45,COVER RH 39156G 39156-2276 1 _________________________________________CN
TAPE 39188 39188-0584 1 _________________________________________CN
CAP-TANK,FUEL 51049 51049-0758 1 _________________________________________CN
TANK-COMP-FUEL,M.D.BLACK 51093 51093-5159-17K 1
TRIM 53044 53044-0645 1 _________________________________________CN
CLAMP,TUBE 92037 92037-010 4 _________________________________________CN
GROMMET,EMBOSSED 0776 92071 92071-0776 2 _________________________________________CN
GROMMET,EMBOSSED 0777 92071A 92071-0777 6 _________________________________________CN
SEAL,FUEL TANK CAP 92093 92093-1030 1 _________________________________________CN
BOLT,SOCKET,6X14 92151 92151-1654 2 _________________________________________CN
COLLAR,6.3X9.5X14.1 92152 92152-1847 2 _________________________________________CN
COLLAR6.3X22X23.6 92152A 92152-2427 2 _________________________________________CN
BOLT,SOCKET,5X16 92153 92153-1616 3 _________________________________________CN
BOLT,SOCKET,5X12 92154 92154-1421 2 _________________________________________CN
DAMPER,10X20X12 92160 92160-1167 2 _________________________________________CN
DAMPER 92161 92161-1963 2 _________________________________________CN
DAMPER,12X28X21 92161A 92161-1998 2 _________________________________________CN
DAMPER 92161B 92161-2450 2 _________________________________________CN
CLAMP,12MM DIA. 92173 92173-0736 3 _________________________________________CN
TUBE,6X9X708 92192 92192-1845 1 _________________________________________CN
TUBE,6X9X688 92192A 92192-1846 1 _________________________________________CN
WASHER,NYLON,5.2X12X1 92200 92200-1011 2 _________________________________________CN
WASHER,6.5X22X1.6 92200A 92200-1087 2 _________________________________________CN
BOLT-FLANGED,6X25 130 130BA0625 2 _________________________________________CN
BOLT-FLANGED,6X35 130A 130BA0635 2 _________________________________________CN
TUBE-RUBBER,6X9X270 702 702A06270 1 _________________________________________CN
