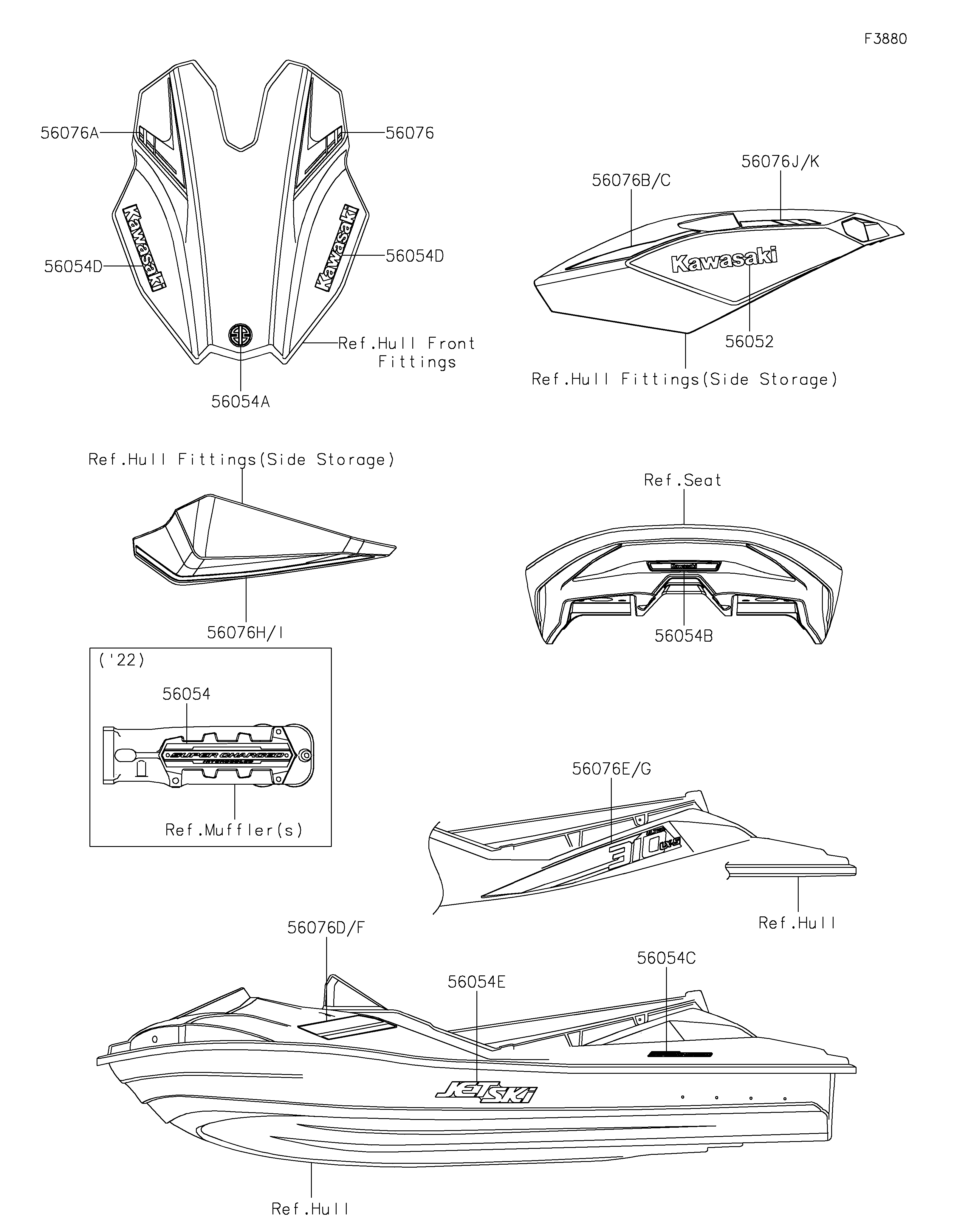

2022 JET SKI® ULTRA® 310LX-S - Decals

DOWNLOAD PDF
SELECT A NEW PART
56052
56054
56054A
56054B
56054C
56054D
56054D
56054E
56076
56076A
56076B
56076C
56076D
56076E
56076F
56076G
56076H
56076I
56076J
56076K
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,KAWASAKI 56052 56052-0866 2
MARK,SUPER CHARGED 56054 56054-1334 1
MARK,HATCH COVER,RIVER 56054A 56054-2918 1
MARK,RR GRIP,KAWASAKI 56054B 56054-2922 1
MARK,DECK,SUPERCHARGED 56054C 56054-3780 2
MARK,HATCH COVER,KAWASAKI 56054D 56054-3782 2
MARK,HULL,JETSKI 56054E 56054-3795 2
PATTERN,HATCH COVER,LH 56076 56076-4026 1
PATTERN,HATCH COVER,RH 56076A 56076-4027 1
PATTERN,SIDE COVER,FR,LH 56076B 56076-4028 1
PATTERN,SIDE COVER,FR,RH 56076C 56076-4029 1
PATTERN,DECK,FR,LH 56076D 56076-4030 1
PATTERN,DECK,RR,LH 56076E 56076-4031 1
PATTERN,DECK,FR,RH 56076F 56076-4032 1
PATTERN,DECK,RR,RH 56076G 56076-4033 1
PATTERN,MIRROR COVER,LH 56076H 56076-4035 1
PATTERN,MIRROR COVER,RH 56076I 56076-4036 1
PATTERN,SIDE COVER,RR,LH 56076J 56076-4080 1
PATTERN,SIDE COVER,RR,RH 56076K 56076-4081 1
