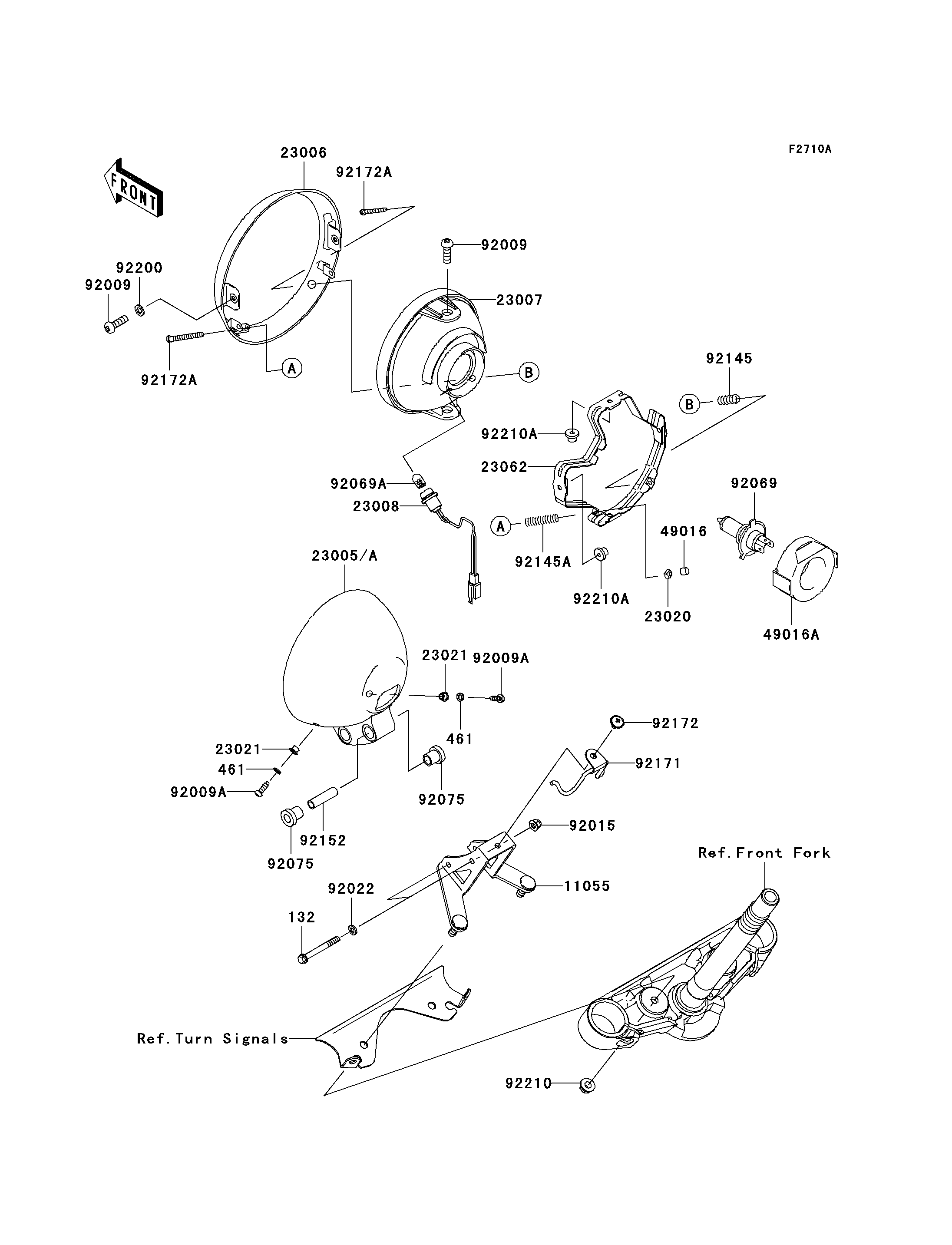

2009 Vulcan 900 Custom (European) - Headlight(s)(UK)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,HEAD LAMP | 11055 | 11055-0123 | 1 | UK | |
| BODY-COMP-HEAD LAMP | 23005A | 23005-0038 | 1 | UK | |
| RIM-LAMP | 23006 | 23006-0014 | 1 | UK | |
| LENS-COMP,HEAD LAMP | 23007 | 23007-0106 | 1 | UK | |
| SOCKET-ASSY,PARKING LAMP | 23008 | 23008-1609 | 1 | UK | |
| NUT,4MM,FOCUS ADJUST | 23020 | 23020-018 | 2 | UK | |
| WASHER | 23021 | 23021-010 | 2 | UK | |
| BRACKET-COMP,HEAD LAMP | 23062 | 23062-0068 | 1 | UK | |
| COVER-SEAL | 49016 | 49016-0047 | 2 | UK | |
| COVER-SEAL,HEAD LAMP SOCKET | 49016A | 49016-1210 | 1 | UK | |
| SCREW,5X12 | 92009 | 92009-1772 | 4 | UK | |
| SCREW,5MM | 92009A | 92009-1947 | 2 | UK | |
| NUT,CAP,6MM | 92015 | 92015-1385 | 2 | UK | |
| WASHER,6.5X11.5X2 | 92022 | 92022-1506 | 2 | UK | |
| BULB,12V 60/55W,H4 | 92069 | 92069-1002 | 1 | UK | |
| BULB,12V 5W | 92069A | 92069-1016 | 1 | UK | |
| DAMPER,TAIL LAMP | 92075 | 92075-1367 | 4 | UK | |
| SPRING,FOCUS ADJUST | 92145 | 92145-0555 | 1 | UK | |
| SPRING,FOCUS ADJUST | 92145A | 92145-0556 | 1 | UK | |
| COLLAR,6.8X10X38 | 92152 | 92152-0622 | 2 | UK | |
| CLAMP,SIGNAL LAMP HARNESS | 92171 | 92171-1658 | 1 | UK | |
| BOLT-FLANGED-SMALL,6X55 | 132 | 132BA0655 | 2 | UK | |
| WASHER-SPRING,5MM | 461 | 461S0500 | 2 | UK | |
| SCREW,6X10 | 92172 | 92172-0098 | 1 | UK | |
| SCREW,FOCUS ADJUST,4X55 | 92172A | 92172-0336 | 2 | UK | |
| WASHER | 92200 | 92200-0409 | 2 | UK | |
| NUT,FLANGED,8MM | 92210 | 92210-0004 | 2 | UK | |
| NUT,5MM | 92210A | 92210-0419 | 4 | UK |
