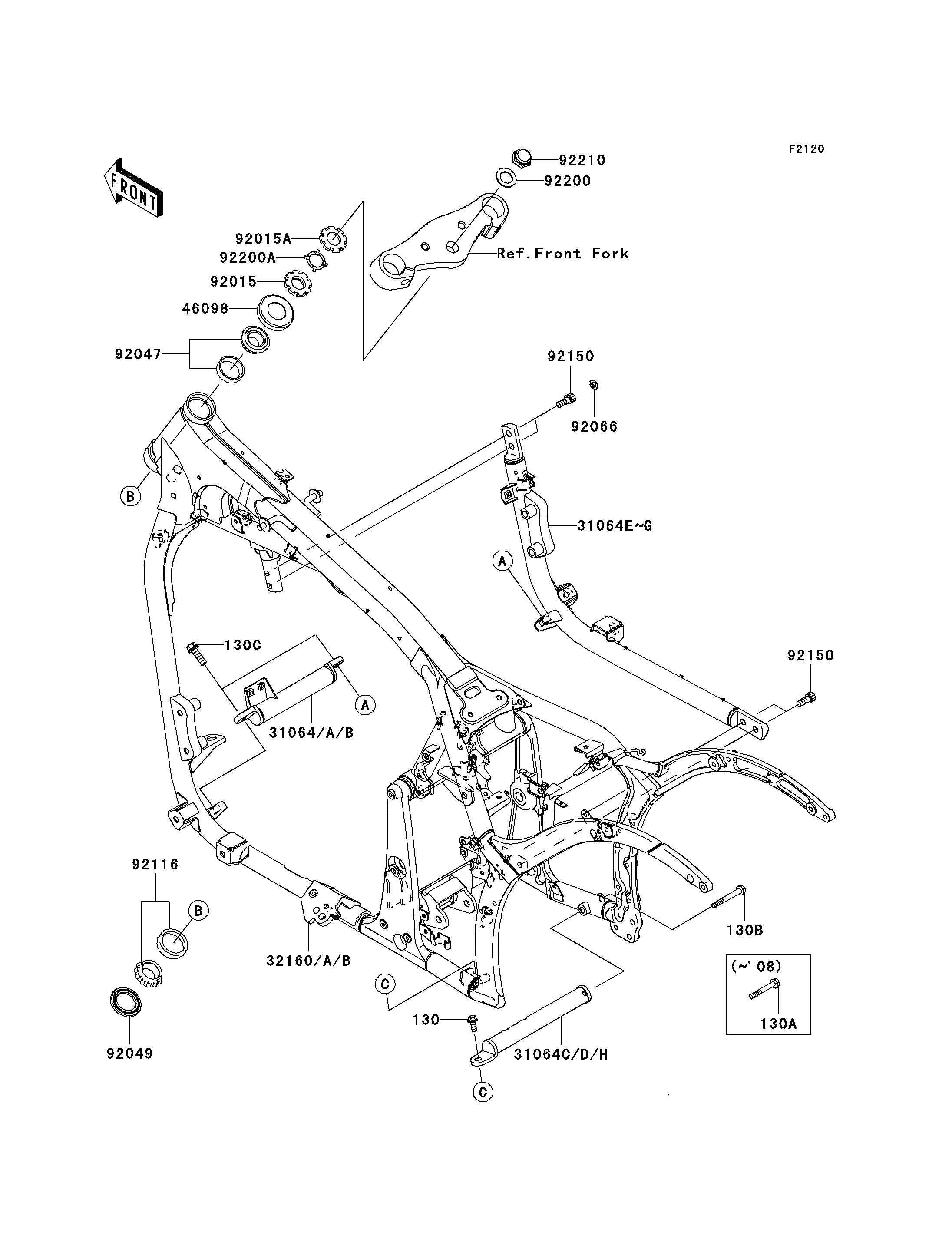

2009 Vulcan 900 Custom (European) - Frame

DOWNLOAD PDF
SELECT A NEW PART
130
130B
130C
31064B
31064G
31064H
32160B
46098
92015
92015A
92047
92049
92066
92116
92150
92150
92200
92200A
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X18 130 130BB0818 1
BOLT-FLANGED,8X65 130B 130BB0865 1
BOLT-FLANGED,10X25 130C 130BB1025 2
PIPE-COMP,FRONT CROSS,F.M.GRAY 31064B 31064-0047-26M 1
PIPE-COMP,DOWNTUBE,RH,F.M.GRAY 31064G 31064-0097-26M 1
PIPE-COMP,REAR CROSS,F.M.GRAY 31064H 31064-0183-26M 1
FRAME-COMP,F.M.GRAY 32160B 32160-0395-26M 1
CAP,STEERING STEM 46098 46098-017 1
NUT,25MM,T=10 92015 92015-1377 1
NUT,25MM,T=6 92015A 92015-1378 1
RACE,ROLLER,32005JR RS 92047 92047-017 1
SEAL-OIL,XMHE36X52X4J 92049 92049-1162 1
PLUG 92066 92066-1562 2
BEARING-ROLLER,HR320/28XJ 92116 92116-1009 1
BOLT,SOCKET,10X23 92150 92150-1942 4
WASHER,22.5X36X2.3 92200 92200-0270 1
WASHER,CLAW,25.5X34X0.6 92200A 92200-0353 1
NUT,CAP,22MM 92210 92210-0263 1
