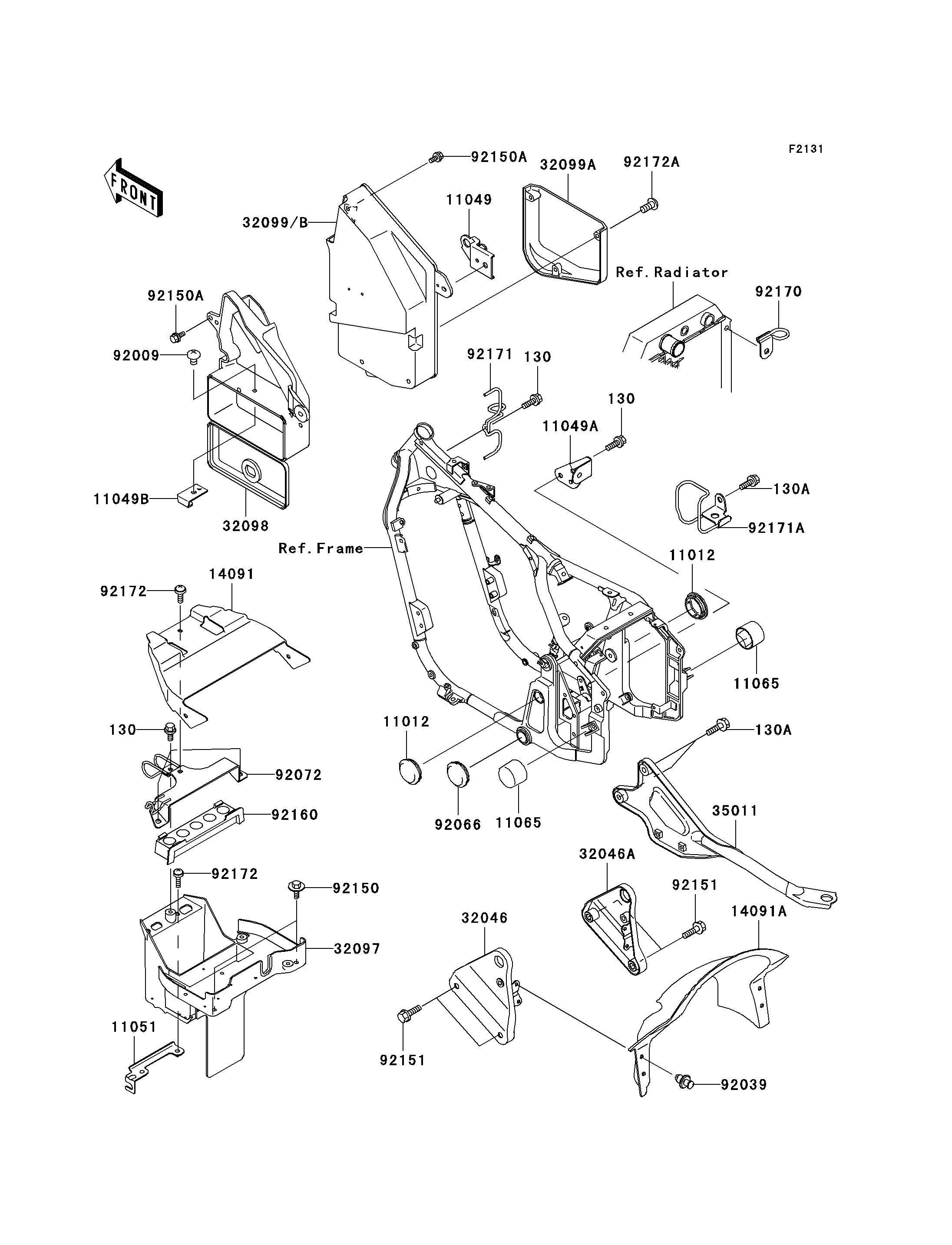

2002 Vulcan 800 Drifter - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
130
130
130
130A
130A
11012
11012
11049
11049A
11049B
11051
11065
11065
14091
14091A
32046
32046A
32097
32098
32099A
35011
92009
92039
92066
92072
92150
92150A
92150A
92151
92151
92160
92170
92171
92171A
92172
92172
92172A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130J0612 5
BOLT-FLANGED,8X25,BLACK 130A 130J0825 3
CAP 11012 11012-1926 2
BRACKET,SIDE COVER LOCK 11049 11049-1183 1
BRACKET,RESERVOIR TANK 11049A 11049-1233 1
BRACKET,TOOL CASE LOCK 11049B 11049-1266 1
BRACKET,STARTER CABLE 11051 11051-1328 1
CAP 11065 11065-1183 2
COVER,ELECTRIC 14091 14091-1060 1
COVER,SEAT UNDER 14091A 14091-1368 1
BRACKET-SEAT,LH 32046 32046-1494 1
BRACKET-SEAT,RH 32046A 32046-1495 1
CASE-BATTERY 32097 32097-1189 1
CASE-TOOL 32098 32098-1106 1
CASE 32099A 32099-1164 1
STAY,MUFFLER 35011 35011-1972 1
SCREW,5X14 92009 92009-1653 1
RIVET 92039 92039-1227 4
PLUG 92066 92066-1434 1
BAND,BATTERY 92072 92072-1366 1
BOLT,6X14 92150 92150-1133 2
BOLT,FLANGED,6X14 92150A 92150-1689 7
BOLT,FLANGED,10X30 92151 92151-1442 4
DAMPER,BATTERY BAND 92160 92160-1634 1
CLAMP,CABLE 92170 92170-1608 1
CLAMP,HARNESS&CABLE 92171 92171-1074 1
CLAMP,BRAKE HOSE 92171A 92171-1180 1
SCREW,6X10 92172 92172-0005 5
SCREW,TAPPING,5X14 92172A 92172-0006 3
CASE,BASE 32099 32099-1163 1 CA
CASE,BASE 32099B 32099-1167 1 CNUS
