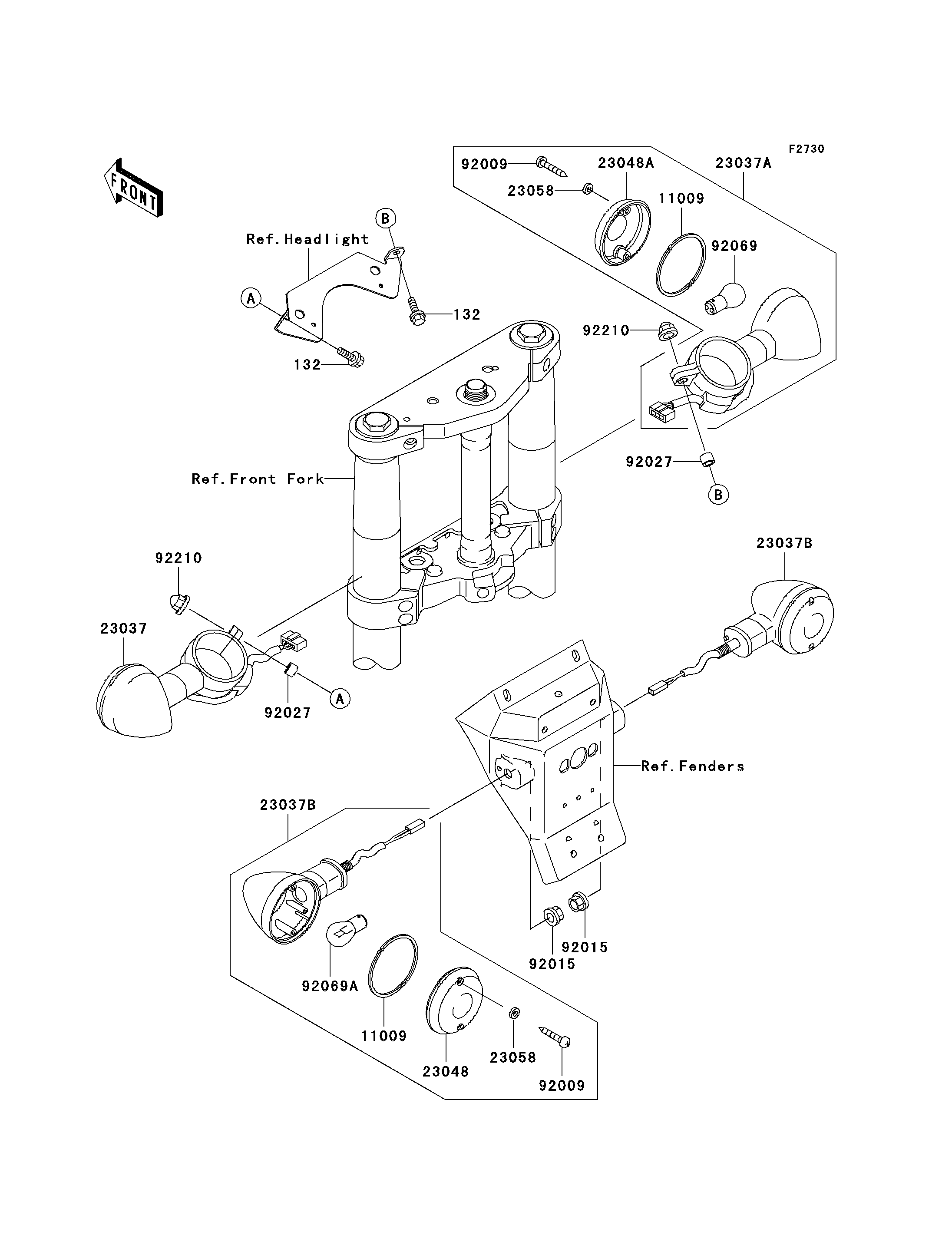

2006 Vulcan 1600 Mean Streak - Turn Signals

DOWNLOAD PDF
SELECT A NEW PART
132
132
11009
11009
23037
23037A
23037B
23037B
23048
23048A
23058
23058
92009
92009
92015
92015
92027
92027
92069
92069A
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X20 132 132E0620 2
GASKET,SIGNAL LAMP 11009 11009-1413 4
LAMP-ASSY-SIGNAL,FR,LH 23037 23037-1405 1
LAMP-ASSY-SIGNAL,FR,RH 23037A 23037-1406 1
LAMP-ASSY-SIGNAL,RR 23037B 23037-1412 2
LENS-SIGNAL LAMP 23048 23048-1065 2
LENS-SIGNAL LAMP 23048A 23048-1066 2
WASHER,PLAIN,4MM 23058 23058-002 8
SCREW,TAPPING,4X25 92009 92009-1637 8
NUT,10MM 92015 92015-1356 2
COLLAR,6.8X10X12 92027 92027-162 2
BULB,12V 21/5W 92069 92069-063 2
BULB,12V 21W 92069A 2 (LOCAL PROCUREMENT ITEM)
NUT,CAP,6MM 92210 92210-0141 2
