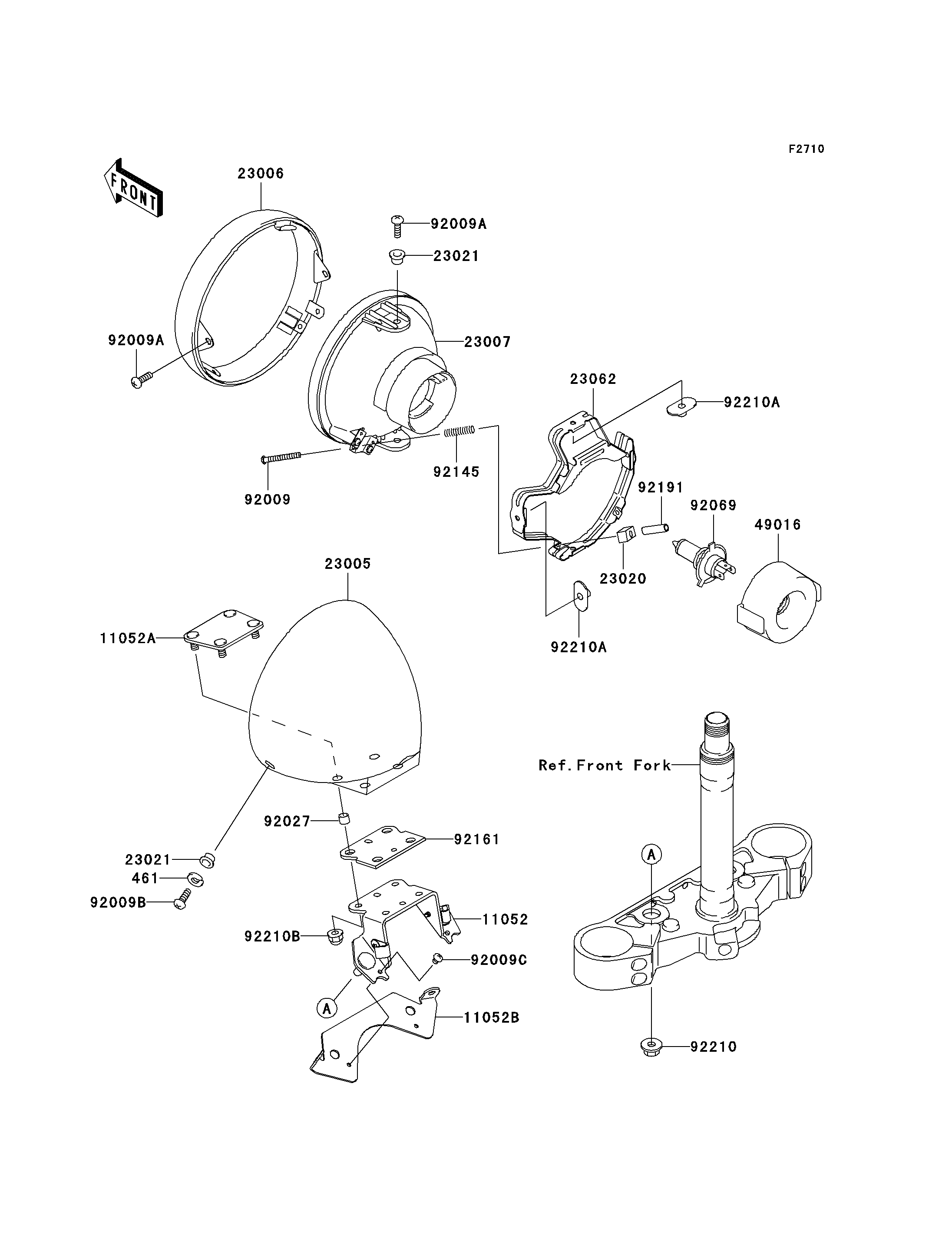

2006 Vulcan 1600 Mean Streak - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
461
11052
11052A
11052B
23005
23006
23007
23020
23021
23021
23062
49016
92009
92009A
92009A
92009B
92009C
92027
92069
92145
92161
92191
92210
92210A
92210A
92210B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WASHER-SPRING,5MM 461 461S0500 2
BRACKET,HEAD LAMP BODY 11052 11052-1265 1
BRACKET,HEAD LAMP BODY 11052A 11052-1266 1
BRACKET,HEAD LAMP BODY 11052B 11052-1371 1
BODY-COMP-HEAD LAMP 23005 23005-1203 1
RIM-LAMP 23006 23006-0001 1
LENS-COMP,HEAD LAMP 23007 23007-1359 1
NUT,4MM,FOCUS ADJUST 23020 23020-018 2
WASHER 23021 23021-010 4
BRACKET-COMP,HEAD LAMP 23062 23062-1131 1
COVER-SEAL,SOCKET 49016 49016-1203 1
SCREW,FOCUS ADJUST,4X60 92009 92009-1816 2
SCREW,5X16 92009A 92009-1879 4
SCREW,5MM 92009B 92009-1947 2
SCREW,4X5 92009C 92009-1988 2
COLLAR,6.8X10X6 92027 92027-103 4
BULB,12V 60/55W,H4 92069 92069-1002 1
SPRING,HEAD LAMP LENS 92145 92145-1268 2
DAMPER,HEAD LAMP BODY 92161 92161-1212 1
TUBE,3.5X5.5X19 92191 92191-1217 2
NUT,FLANGED,8MM 92210 92210-0004 2
NUT,SPECIAL,5MM 92210A 92210-1060 4
NUT 92210B 92210-1252 4
