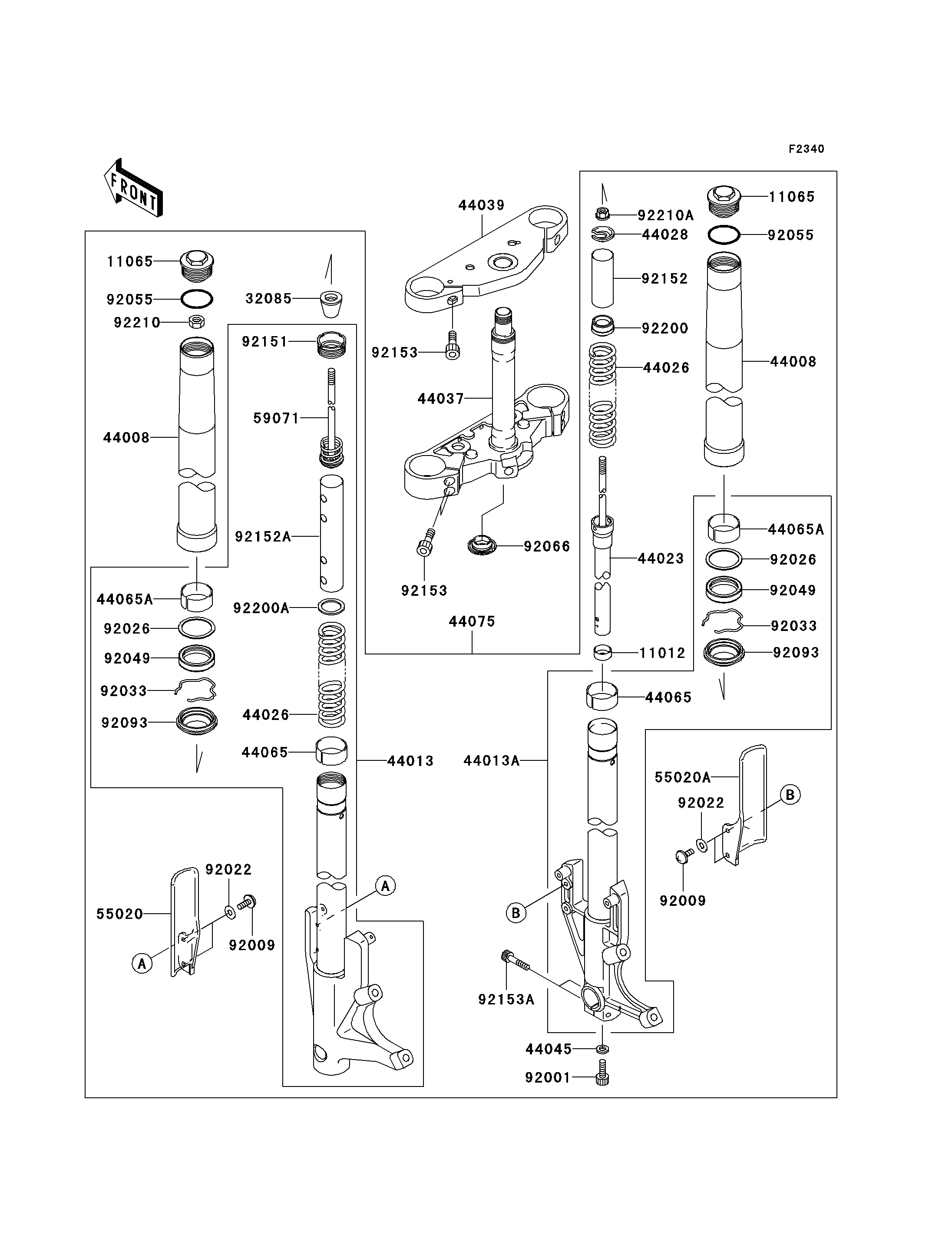

2006 Vulcan 1600 Mean Streak - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
11012
11065
11065
32085
44008
44008
44013
44013A
44023
44026
44026
44028
44037
44039
44045
44065
44065
44065A
44065A
44075
55020
55020A
59071
92001
92009
92009
92022
92022
92026
92026
92033
92033
92049
92049
92055
92055
92066
92093
92093
92151
92152
92152A
92153
92153
92153A
92200
92200A
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1761 1
CAP,FORK TOP 11065 11065-1207 2
STOPPER 32085 32085-1537 1
PIPE-FORK OUTER 44008 44008-1053 2
PIPE-FORK INNER,LH 44013 44013-0025 1
PIPE-FORK INNER,RH 44013A 44013-0026 1
CYLINDER-SET-FORK 44023 44023-1158 1
SPRING-FRONT FORK 44026 44026-1732 2
GUIDE-FORK SPRING 44028 44028-1076 1
HOLDER-FORK UNDER 44037 44037-1421 1
HOLDER-FORK UPPER 44039 44039-1317 1
GASKET,FORK CYLINDER BOLT 44045 44045-051 1
BUSHING-FRONT FORK 44065 44065-1137 2
BUSHING-FRONT FORK 44065A 44065-1138 2
DAMPER-SET-FORK 44075 44075-0057 1
GUARD,FORK,LH 55020 55020-0076 1
GUARD,FORK,RH 55020A 55020-0077 1
JOINT 59071 59071-1188 1
BOLT,FORK CYLINDER 92001 92001-1464 1
SCREW,6X16 92009 92009-1776 4
WASHER,6.5X16X1.0 92022 92022-1654 4
SPACER 92026 92026-1598 2
RING-SNAP 92033 92033-1222 2
SEAL-OIL 92049 92049-0064 2
RING-O,FORK CAP 92055 92055-1497 2
PLUG 92066 92066-0032 1
SEAL,DUST 92093 92093-0042 2
BOLT 92151 92151-1971 1
COLLAR,FORK,L=85 92152 92152-1337 1
COLLAR,FORK,L=190.4 92152A 92152-1381 1
BOLT,SOCKET 92153 92153-0500 6
BOLT 92153A 92153-0533 2
WASHER 92200 92200-1576 1
WASHER 92200A 92200-1604 1
NUT 92210 92210-1330 1
NUT,LOCK 92210A 92210-1346 1
