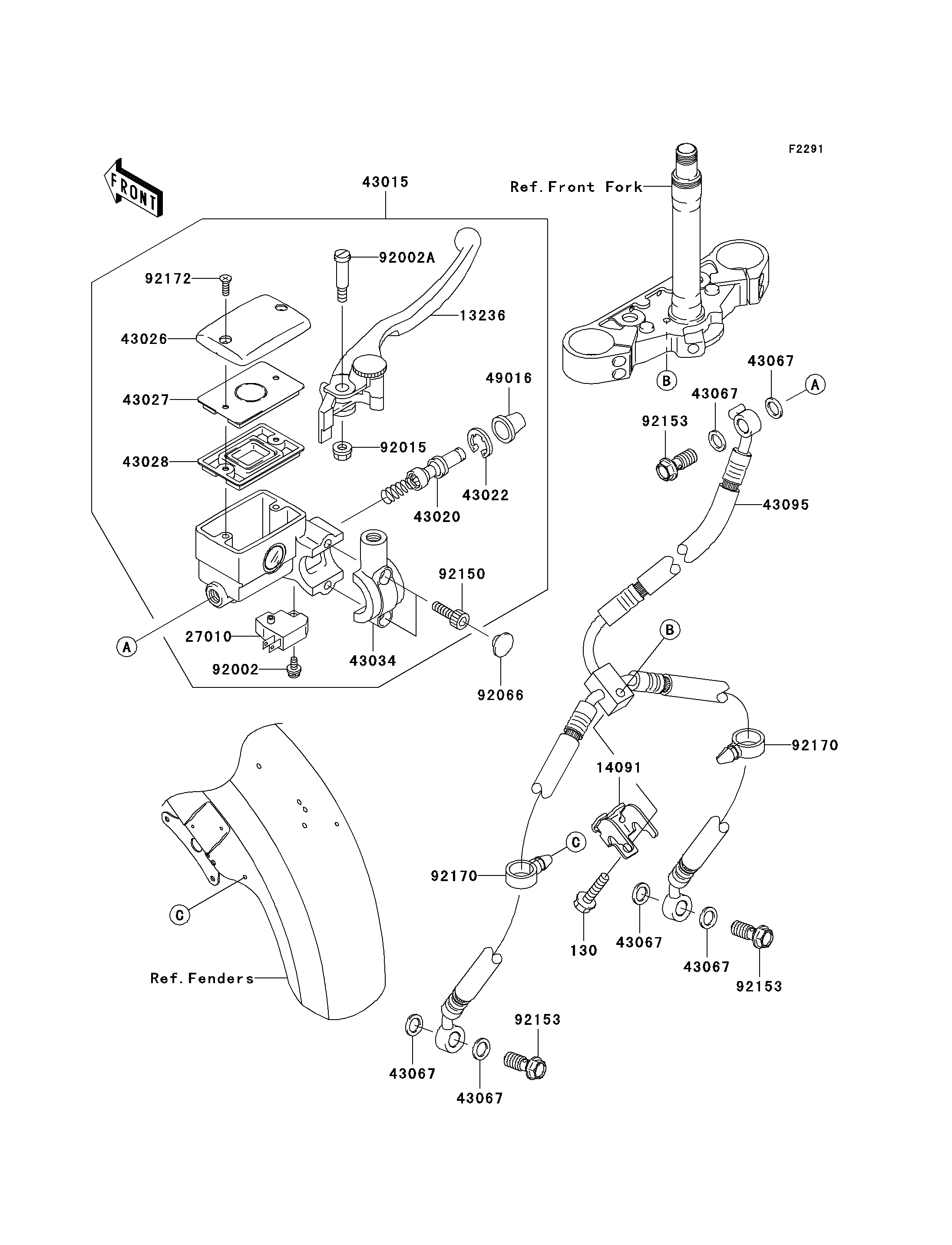

2006 Vulcan 1600 Mean Streak - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
130
13236
14091
27010
43015
43020
43022
43026
43027
43028
43034
43067
43067
43067
43067
43067
43067
43095
49016
92002
92002A
92015
92066
92150
92153
92153
92153
92170
92170
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X30 130 130J0630 1
LEVER-COMP,FRONT BRAKE 13236 13236-1315 1
COVER,3 WAY JOINT 14091 14091-1450 1
SWITCH,BRAKE 27010 27010-0025 1
CYLINDER-ASSY-MASTER,FR 43015 43015-0025 1
PISTON-COMP-BRAKE,FR 43020 43020-1054 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE 43026 43026-0003 1
PLATE-DIAPHRAGM 43027 43027-1059 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1058 1
HOLDER-BRAKE 43034 43034-1172 1
WASHER,10.5X15X1.5 43067 43067-001 6
HOSE-BRAKE,FR 43095 43095-0198 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
BOLT,SCREW,4X12 92002 92002-1323 1
BOLT,LEVER SET 92002A 92002-1561 1
NUT,FLANGED,6MM 92015 92015-1528 1
PLUG 92066 92066-1301 2
BOLT,SOCKET,6MM 92150 92150-1025 2
BOLT,OIL,L=23 92153 92153-0627 3
CLAMP 92170 92170-1067 2
SCREW 92172 92172-0083 2
