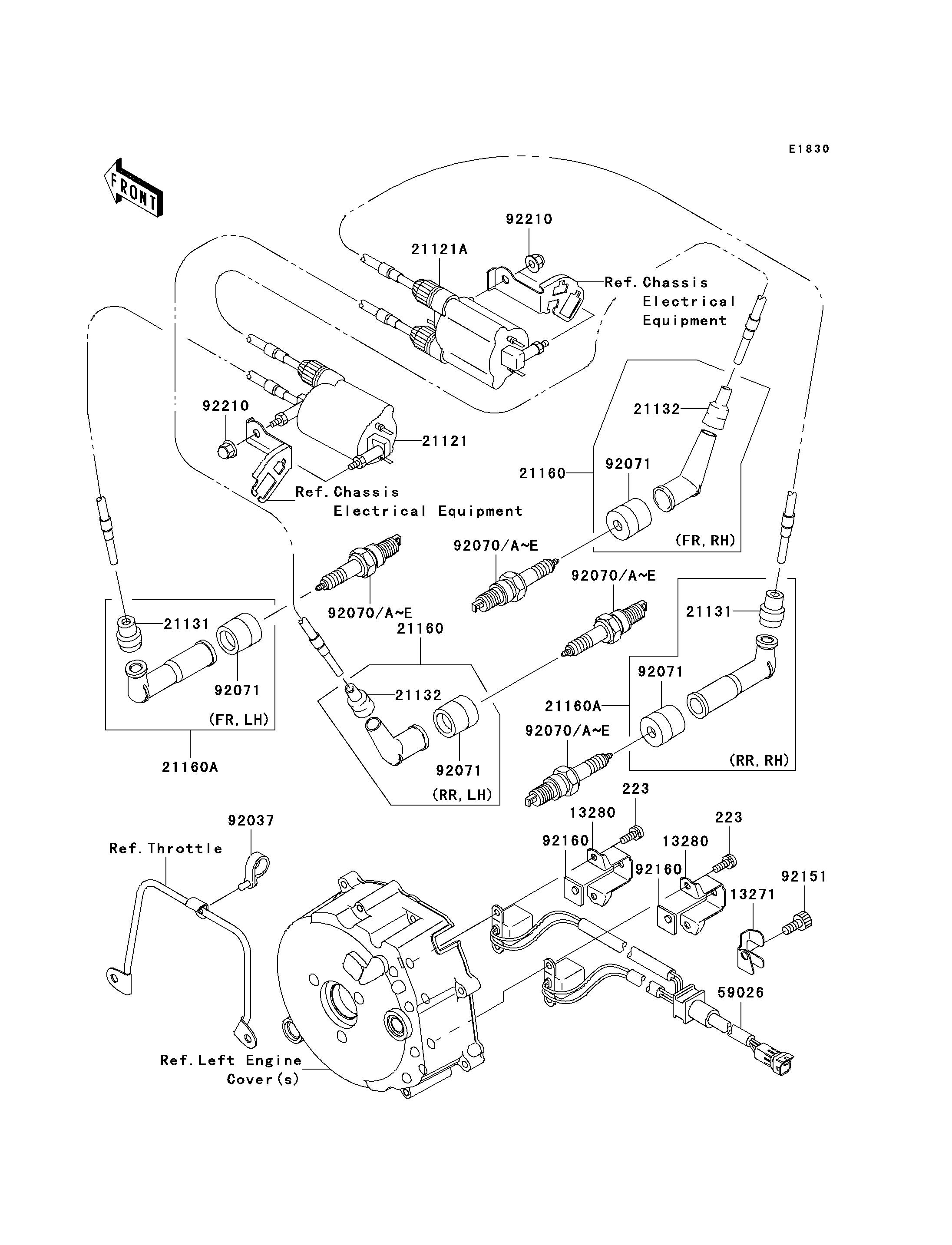

2006 Vulcan 1600 Mean Streak - Ignition System

DOWNLOAD PDF
SELECT A NEW PART
223
223
13271
13280
13280
21121
21121A
21131
21131
21132
21132
21160
21160
21160A
21160A
59026
92037
92070
92070
92070
92070
92070A
92070A
92070A
92070A
92070B
92070B
92070B
92070B
92070C
92070C
92070C
92070C
92070D
92070D
92070D
92070D
92070E
92070E
92070E
92070E
92071
92071
92071
92071
92151
92160
92160
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-WS-CROS,5X16 223 223B0516 4
PLATE 13271 13271-1339 1
HOLDER 13280 13280-1255 2
COIL-IGNITION,FR 21121 21121-1302 1
COIL-IGNITION,RR 21121A 21121-1303 1
GROMMET,HIGH TENSION 21131 21131-005 2
GROMMET,HIGH TENSION 21132 21132-005 2
CAP-ASSY-PLUG 21160 21160-0004 2
CAP-ASSY-PLUG 21160A 21160-1091 2
COIL-PULSING 59026 59026-1158 1
CLAMP,SPEED,L=43 92037 92037-1290 1
PLUG-SPARK,X22EPR-U9(ND) 92070 AR (OPTION)
PLUG-SPARK,DPR7EA9(NGK) 92070A 92070-1125 AR (OPTION)
PLUG-SPARK,DPR6EA9(NGK) 92070B 92070-1138 4
PLUG-SPARK,X20EPR-U9(ND) 92070C 4 (LOCAL PROCUREMENT ITEM)
PLUG-SPARK,DPR5EA9(NGK) 92070D 92070-1250 AR (OPTION)
PLUG-SPARK,X16EPR-U9(ND) 92070E AR (OPTION)
GROMMET,PLUG CAP 92071 92071-1184 4
BOLT,6X10 92151 92151-3704 1
DAMPER 92160 92160-1091 2
NUT,CAP,6MM 92210 92210-0003 4
