Parts Diagrams |

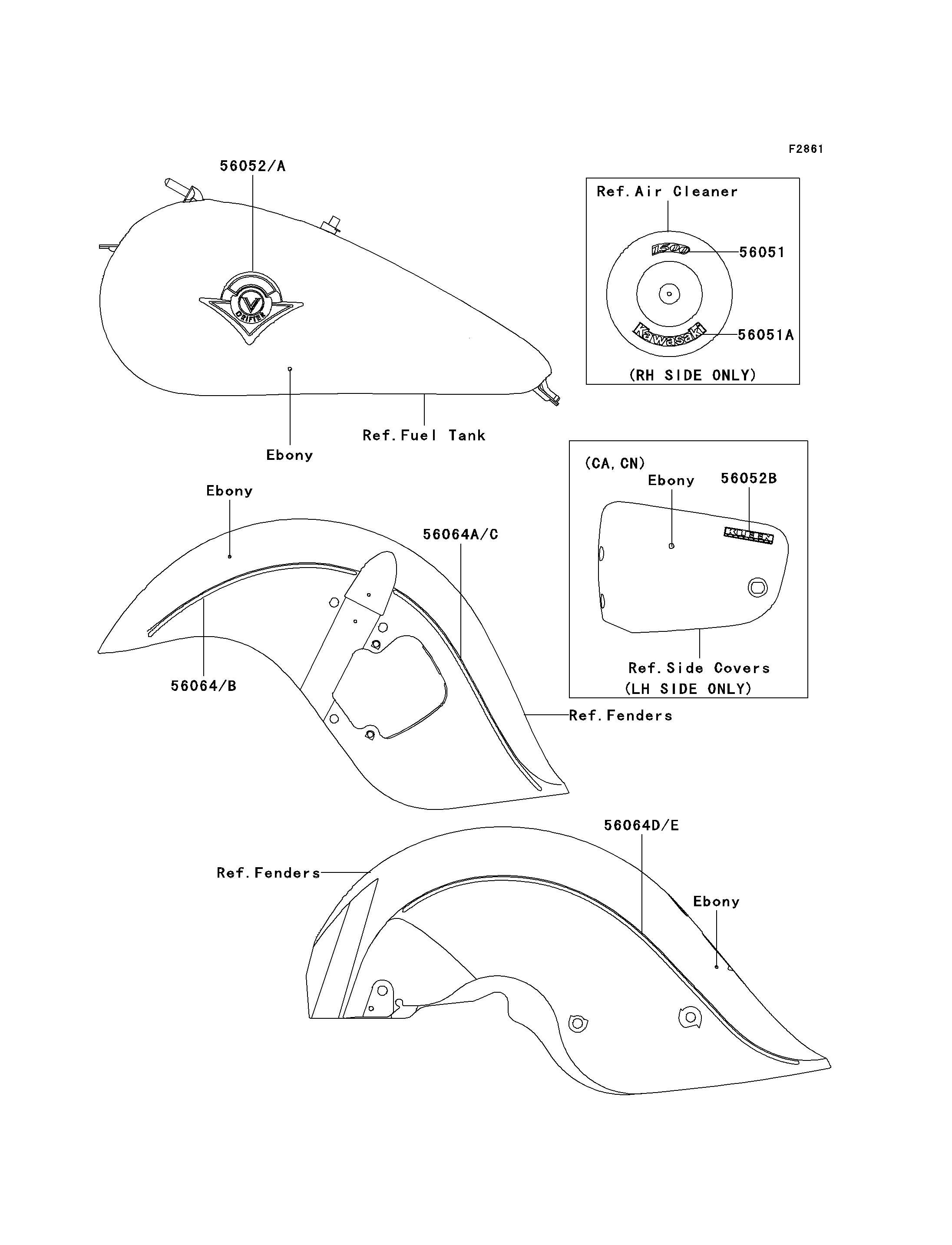

2001 Vulcan 1500 Drifter - Decals(Ebony)(R1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,AIR CLEANER,1500 | 56051 | 56051-1459 | 1 | ||
| MARK,AIR CLEANER,KAWASAKI | 56051A | 56051-1460 | 1 | ||
| MARK,FUEL TANK,LH | 56052 | 56052-1321 | 1 | ||
| MARK,FUEL TANK,RH | 56052A | 56052-1322 | 1 | ||
| PATTERN,FR FENDER,FR,LH | 56064 | 56064-1456 | 1 | ||
| PATTERN,FR FENDER,RR,LH | 56064A | 56064-1457 | 1 | ||
| PATTERN,FR FENDER,FR,RH | 56064B | 56064-1458 | 1 | ||
| PATTERN,FR FENDER,RR,RH | 56064C | 56064-1459 | 1 | ||
| PATTERN,RR FENDER,LH | 56064D | 56064-1460 | 1 | ||
| PATTERN,RR FENDER,RH | 56064E | 56064-1461 | 1 | ||
| MARK,SIDE COVER,KLEEN | 56052B | 56052-1384 | 1 | CACN |
| MARK,AIR CLEANER,1500 | |
| REF # | 56051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,AIR CLEANER,KAWASAKI | |
| REF # | 56051A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,FUEL TANK,LH | |
| REF # | 56052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,FUEL TANK,RH | |
| REF # | 56052A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER,FR,LH | |
| REF # | 56064 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER,RR,LH | |
| REF # | 56064A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER,FR,RH | |
| REF # | 56064B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER,RR,RH | |
| REF # | 56064C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,RR FENDER,LH | |
| REF # | 56064D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,RR FENDER,RH | |
| REF # | 56064E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,SIDE COVER,KLEEN | |
| REF # | 56052B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CACN |
| REMARKS | |
